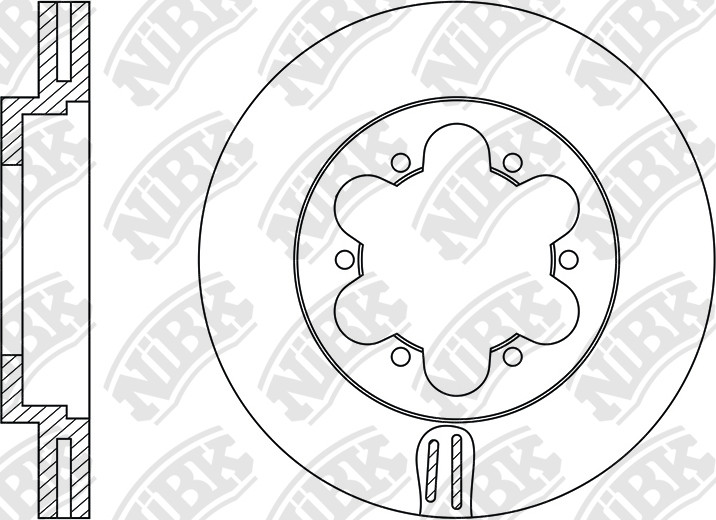

ROTOR DISC » RN1330V
Specification
Type
Vented
Disc Thickness (Max)
28
Num. of holes
6
Height
48.2
Centering Diameter
105
Front/Rear
Front
Pitch Circle Ø
127
Outter Ø
285
Drum Ø:
155
Disc Thickness (Min)
26
Structure Material
G3000
Variation
Cross Reference
TOYOTA
43512-26190
TOYOTA
43512-56190
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.05~02.14 | 2500 | 2KD-FTV | KDH200R | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.05~09.13 | 2500 | 2KD-FTV | KDH202L | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.05~09.07 | 2500 | 2KD-FTV | KDH202R | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.13~ | 2500 | 2KD-FTV | KDH212R | RN1330V | PN1516 | DN1210DN1103 | FN2378 | |
| 01.05~ | 2500 | 2KD-FTV | KDH222L | RN1330V | PN1516 | DN1254DN1103DN1210 | FN2378FN2305 | |
| 08.04~05.12 | 2500 | 2KD-FTV | KDH222R | RN1330V | PN1516 | DN1254DN1210DN1103 | FN2378FN2305 | |
| 02.06~01.14 | 2500 | 2KD-FTV | KDS200 | RN1330V | PN1516 | FN2378 | ||
| 09.07~01.14 | 2500 | 2KD-FTV | KDS202 | RN1330V | PN1516 | FN2378 | ||
| 01.05~01.21 | 2700 | 2TR-FE | TRH201L | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.05~01.21 | 2700 | 2TR-FE | TRH201R | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.05~ | 2700 | 2TR-FE | TRH203L | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 01.05~ | 2700 | 2TR-FE | TRH203R | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 01.05~ | 2700 | 2TR-FE | TRH221L | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 01.05~02.14 | 2700 | 2TR-FE | TRH221L | RN1330V | PN1516 | FN2378 | ||
| 01.05~02.14 | 2700 | 2TR-FE | TRH221R | RN1330V | PN1516 | DN1103 | FN2378 | |
| 08.04~08.10 | 2700 | 2TR-FE | TRH221W | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.05~ | 2700 | 2TR-FE | TRH223B | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 08.05~ | 2700 | 2TR-FE | TRH223L | RN1330V | PN1516 | DN1103DN1210 | FN2378FN2305 | |
| 08.04~ | 2700 | 2TR-FE | TRH229W | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 01.17~ | 2800 | 1GD-FTV | GDH201R | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.05~ | 3000 | 1KD-FTV | KDH201R | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.05~02.14 | 3000 | 1KD-FTV | KDH203R | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.05~02.14 | 3000 | 1KD-FTV | KDH223R | RN1330V | PN1516 | DN1254DN1103DN1210 | FN2305FN2378 | |
| 01.05~01.05 | 3000 | 5L-E | LH202 | RN1330V | PN1516 | FN2378 | ||
| 01.13~ | 3000 | 5L-E | LH212 | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.05~02.19 | 3000 | 5L-E | LH222R | RN1330V | PN1516 | DN1254DN1103 | FN0686FN2378FN2305 |
| 01.05~ | 2500 | 2KD-FTV | KDH222R | RN1330V | PN1516 | DN1254DN1210DN1103 | FN2305FN2378FN0686 | |
| 01.05~12.16 | 2700 | 2TR-FE | TRH213L | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 01.06~12.13 | 2700 | 2TR-FE | TRH213R | RN1330V | PN1516 | DN1210DN1103 | FN2378 | |
| 01.06~ | 2700 | 2TR-FE | TRH223R | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 09.07~ | 3000 | 1KD-FTV | KDH223B | RN1330V | PN1516 | DN1103DN1210 | FN2378 |
| 08.04~12.13 | 2000 | 1TR-FE | TRH200K | RN1330V | PN1516 | DN1210DN1103 | FN2378 | |
| 08.04~ | 2000 | 1TR-FE | TRH200V | RN1330V | PN1516 | DN1103 | FN2378 | |
| 08.04~08.07 | 2500 | 2KD-FTV | KDH200K | RN1330V | PN1516 | DN1103 | FN2378 | |
| 08.04~08.07 | 2500 | 2KD-FTV | KDH200V | RN1330V | PN1516 | DN1103 | FN2378 | |
| 08.03~12.13 | 2500 | 2KD-FTV | KDH205V | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.05~09.07 | 2500 | 2KD-FTV | KDH220K | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.05~09.07 | 2500 | 2KD-FTV | KDH222B | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.05~08.07 | 2500 | 2KD-FTV | KDH225K | RN1330V | PN1516 | DN1103 | FN2378 | |
| 01.05~08.10 | 2500 | 2KD-FTV | KDH227B | RN1330V | PN1516 | DN1103 | FN2378 | |
| 09.07~ | 2700 | 2TR-FE | TRH211K | RN1330V | PN1516 | DN1210DN1103 | FN2378 | |
| 08.04~ | 2700 | 2TR-FE | TRH214W | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 09.07~ | 2700 | 2TR-FE | TRH216K | RN1330V | PN1516 | DN1210DN1103 | FN2378 | |
| 08.04~12.13 | 2700 | 2TR-FE | TRH219W | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.05~ | 2700 | 2TR-FE | TRH221K | RN1330V | PN1516 | DN1210DN1103 | FN2378 | |
| 01.05~ | 2700 | 2TR-FE | TRH224W | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.05~ | 2700 | 2TR-FE | TRH226 | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.05~ | 2700 | 2TR-FE | TRH228B | RN1330V | PN1516 | DN1210 | FN2378 | |
| 12.17~ | 2800 | 1GD-FTV | GDH201V- | RN1330V | PN1516 | DN1210 | FN2378 | |
| 01.18~ | 2800 | 1GD-FTV | GDH206V- | RN1330V | PN1516 | DN1210 | FN2378 | |
| 12.17~ | 2800 | 1GD-FTV | GDH211K | RN1330V | PN1516 | DN1210 | FN2378 | |
| 12.17~ | 2800 | 1GD-FTV | GDH223B | RN1330V | PN1516 | DN1210 | FN2378 | |
| 09.07~ | 3000 | 1KD-FTV | KDH201K | RN1330V | PN1516 | DN1210DN1103 | FN2378 | |
| 09.07~10.17 | 3000 | 1KD-FTV | KDH201V | RN1330V | PN1516 | DN1103DN1210 | FN2378 | |
| 09.07~ | 3000 | 1KD-FTV | KDH206K | RN1330V | PN1516 | DN1210DN1103 | FN2378 | |
| 07.10~ | 3000 | 1KD-FTV | KDH206V | RN1330V | PN1516 | DN1210 | FN2378 | |
| 08.09~ | 3000 | 1KD-FTV | KDH211K | RN1330V | PN1516 | DN1210 | FN2378 | |
| 09.07~11.17 | 3000 | 1KD-FTV | KDH221K | RN1330V | PN1516 | DN1210DN1103 | FN2378 |
