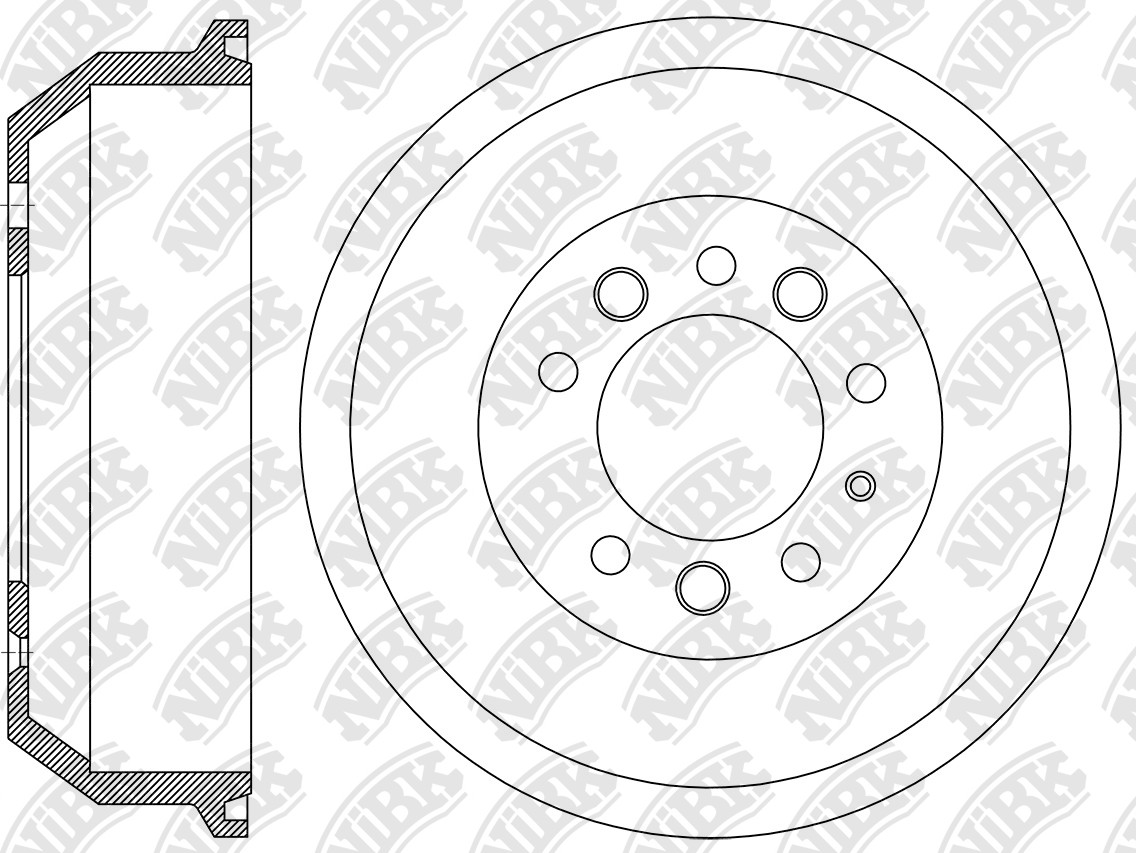

DRUM BRAKE » DN1631

Specification

Outter Ø
300
Num. of holes
5
Hole Ø
16.5
Centering Diameter
114.3
Height
87.1
Pitch Circle Ø
165.1
Drum Ø
254
Structure Material
G3000

Cross Reference

LAND ROVER
591039
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.87~03.06 2500 TD5 L316 RN1025RN1284V PN0243 DN1631RN1023 PN0237FN0501

Exemption from liability: the catalog data is advisory and can be used for reference only
