ROTOR DISC » RN1284V

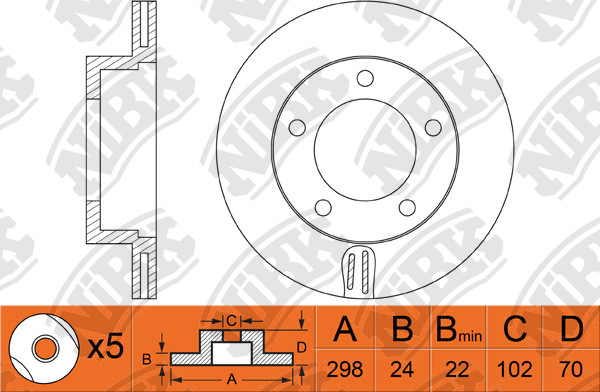

Specification
Type
Vented
Disc Thickness (Max)
24
Num. of holes
5
Height
70
Centering Diameter
102
Front/Rear
Front
Pitch Circle Ø
127
Outter Ø
298
Disc Thickness (Min)
22
Drum Ø:
158
Cross Reference
BENDIX
561629B
LAND ROVER
FTC902
LAND ROVER
LR017952
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.11~02.16 | 2200 | TC I4 DSL 122PS PUMA | LDH | RN1284V | PN0243 | PN0276 | ||
| 07.07~02.16 | 2400 | DT244 | L316 | RN1284V | PN0243 | PN0276 | ||
| 01.95~ | 2500 | 10P | DH# | RN1025RN1284V | PN0243 | RN1023 | PN0276 | |
| 01.95~ | 2500 | 10P | LD | RN1025RN1284V | PN0243 | RN1023 | PN0276 | |
| 09.90~12.94 | 2500 | 11L | DH# | RN1284VRN1025 | PN0243 | RN1023 | PN0276 | FN0605 |
| 01.95~01.99 | 2500 | 16L | DH# | RN1284VRN1025 | PN0243 | RN1023 | PN0276 | |
| 01.95~01.99 | 2500 | 16L | LD | RN1284VRN1025 | PN0243 | RN1023 | PN0276 | |
| 09.90~12.94 | 2500 | 17H | DH# | RN1284VRN1025 | PN0243 | RN1023 | PN0276 | FN0605 |
| 01.95~ | 2500 | 10P | DK# | RN1025RN1284V | PN0243 | RN1023 | PN0276 | |
| 01.95~ | 2500 | 10P | LD | RN1284VRN1025 | PN0243 | RN1023 | PN0276 | |
| 09.90~12.94 | 2500 | 11L | DK# | RN1284VRN1025 | PN0243 | RN1023 | PN0276 | FN0605 |
| 01.95~ | 2500 | 16L | DK# | RN1284VRN1025 | PN0243 | RN1023 | PN0276 | |
| 01.95~ | 2500 | 16L | LD | RN1284VRN1025 | PN0243 | RN1023 | PN0276 | |
| 09.90~08.93 | 3500 | 21G | DKA | RN1025RN1284V | PN0243 | RN1023 | PN0276 | FN0605 |
| 08.11~02.16 | 2200 | TC I4 DSL 122PS PUMA | L316 | RN1284V | PN0243 | PN0276PN0237 | ||
| 09.87~03.06 | 2500 | TD5 | L316 | RN1025RN1284V | PN0243 | RN1023DN1631 | PN0237FN0501 | |
| 04.98~12.06 | 2500 | TD5 | LD | RN1025RN1284V | PN0243 | RN1023 | PN0237 | FN0501 |
| 10.89~06.94 | 2500 | 12L | LJG# | RN1284VRN1025 | PN0238WPN0236 | RN1023 | PN0237 | FN0605 |
| 07.94~12.98 | 2500 | 17L | LJG# | RN1284VRN1025 | PN0238W | RN1023 | PN0237 | |
| 07.94~12.98 | 2500 | 19L | LJG# | RN1025RN1284V | PN0238W | RN1023 | PN0237 | |
| 07.94~12.98 | 2500 | 21L | LJG# | RN1025RN1284V | PN0238W | RN1023 | PN0237 | |
| 07.94~12.98 | 2500 | 22L | LJG# | RN1284VRN1025 | PN0238W | RN1023 | PN0237 | |
| 10.89~06.94 | 3500 | 22D | LJG# | RN1025RN1284V | PN0238W | RN1023 | PN0237 | FN0605 |
| 10.89~06.94 | 3500 | 36L | LJG# | RN1025RN1284V | PN0238W | RN1023 | PN0237 | FN0605 |
| 10.89~06.94 | 3500 | 38L | LJG# | RN1025RN1284V | PN0238W | RN1023 | PN0237 | FN0605 |
| 07.94~12.98 | 4000 | 35L | LJG# | RN1284VRN1025 | PN0238W | RN1023 | PN0237 | |
| 07.94~12.98 | 4000 | 37L | LJG# | RN1284VRN1025 | PN0238W | RN1023 | PN0237 |
