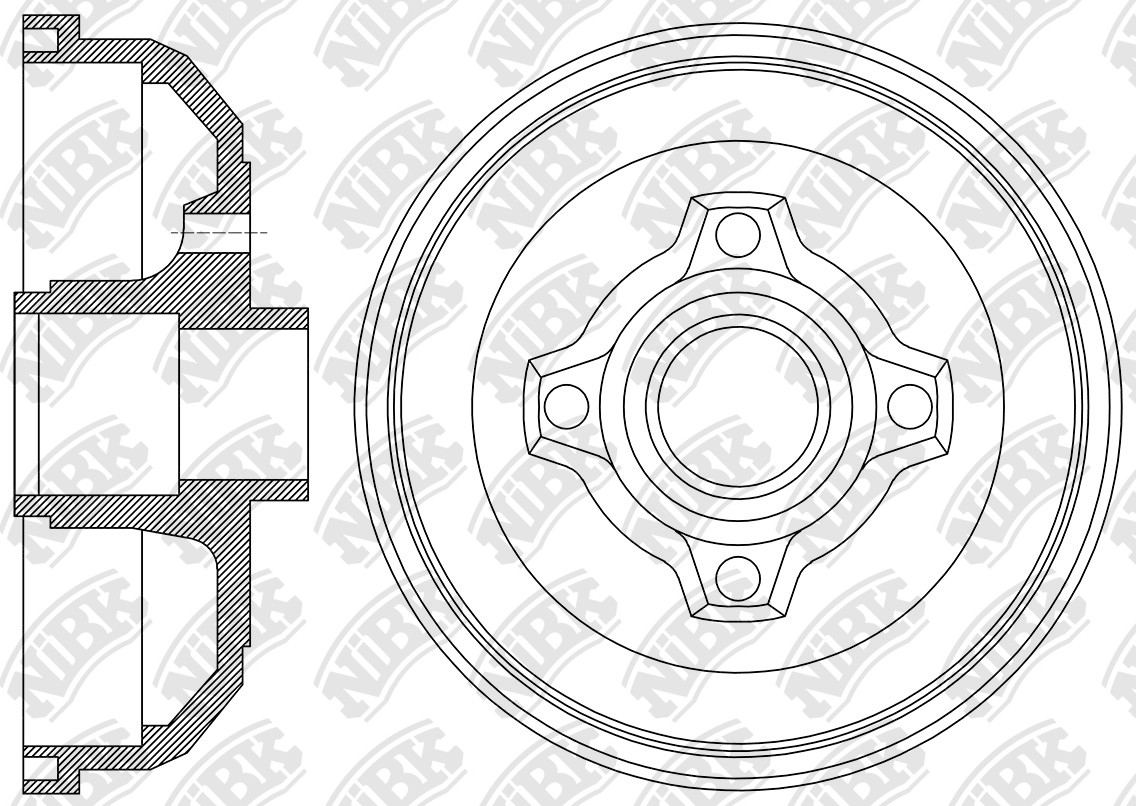

DRUM BRAKE » DN1578
Specification
Outter Ø
228
Num. of holes
4
Hole Ø
M12x1.5
Centering Diameter
50.9-52.9
Height
83.7
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Notes
w/o Wheel Bearing
Cross Reference
GM
9196287
OPEL
4 18 000
OPEL
9196287
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 07.03~11.06 | 1000 | Z10EP | PN0361 | DN1852DN1578 | FN11622FN0533 | |||
| 09.00~11.06 | 1000 | Z10XE | RN1166V | PN0361 | DN1852DN1578 | FN0533FN11622 | ||
| 07.04~06.07 | 1200 | Z12XEP | RN1166V | PN0361 | DN1578DN1852 | FN0533FN11622 | ||
| 09.00~11.06 | 1400 | Z14XE | PN0361 | DN1852DN1578 | FN0533FN11622 | |||
| 07.03~11.06 | 1400 | Z14XEP | PN0361 | DN1578DN1852 | FN0533FN11622 | |||
| 09.00~11.06 | 1700 | Y17DT | RN1166V | PN0361 | DN1578DN1852 | FN11622FN0533 |
| 09.00~10.03 | 1000 | Z10XE | F08 | PN0361 | DN1578DN1852 | FN11622FN0533 | ||
| 09.00~10.03 | 1000 | Z10XE | F68 | PN0361 | DN1578DN1852 | FN0533FN11622 | ||
| 11.03~ | 1000 | Z10XEP | F08 | PN0361 | DN1852DN1578 | FN11622FN0533 | ||
| 11.03~ | 1000 | Z10XEP | F68 | PN0361 | DN1578DN1852 | FN11622FN0533 | ||
| 09.00~07.04 | 1200 | Z12XE | 08 | PN0361 | DN1852DN1578 | FN11622FN0533 | ||
| 09.00~07.04 | 1200 | Z12XE | F08 | PN0361 | DN1578DN1852 | FN0533FN11622 | ||
| 09.00~07.04 | 1200 | Z12XE | F68 | PN0361 | DN1852DN1578 | FN0533FN11622 | ||
| 08.03~ | 1300 | Z13DT | PN0361 | DN1578DN1852 | FN0533FN11622 | |||
| 09.00~10.03 | 1400 | Z14XE | F08 | PN0361 | DN1852DN1578 | FN0533FN11622 | ||
| 09.00~10.03 | 1400 | Z14XE | F68 | PN0361 | DN1852DN1578 | FN11622FN0533 | ||
| 11.03~ | 1400 | Z14XEP | F08 | PN0361 | DN1578DN1852 | FN0533FN11622 | ||
| 11.03~ | 1400 | Z14XEP | F68 | PN0361 | DN1852DN1578 | FN11622FN0533 | ||
| 09.00~10.03 | 1700 | Y17DT | PN0361 | DN1852DN1578 | FN11622 | |||
| 09.00~10.03 | 1700 | Y17DTL | PN0361 | DN1578DN1852 | FN11622 |
