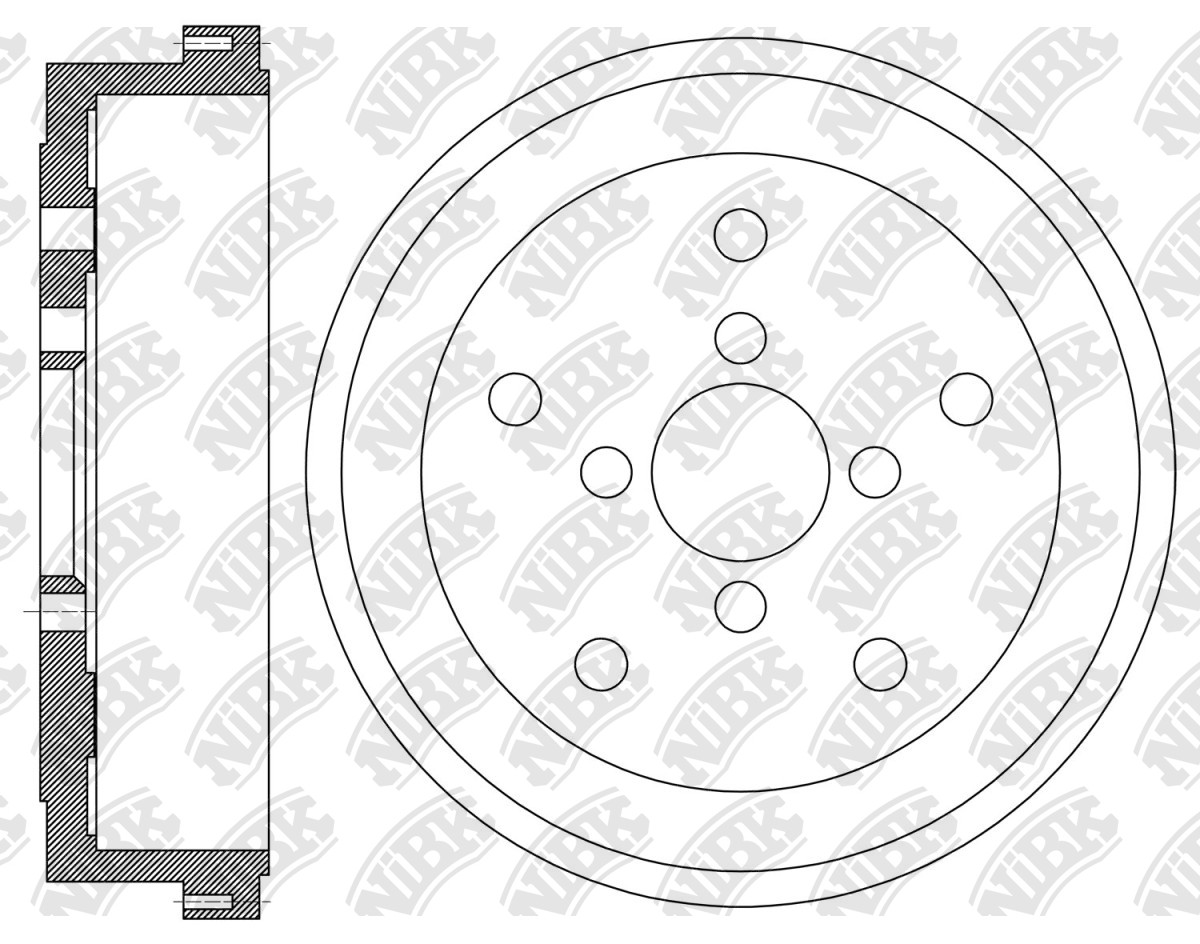

DRUM BRAKE » DN1361

DN1361

Specification

Outter Ø
258
Num. of holes
5
Hole Ø
12
Centering Diameter
57
Height
61.3
Pitch Circle Ø
139.7
Drum Ø
220
Structure Material
G3000

Cross Reference

SUZUKI
43500-83810
SUZUKI
43500-83810-000
SUZUKI
43511-83002
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

SUZUKI   »   Jimny

11.95~10.98 660 K6A# JA22W RN1038 PN9118 DN1361 FN9921

SUZUKI   »   Samurai

01.88~01.05 1300 G13A SJ413 RN2014 PN9008 DN1361 FN9921
01.88~01.05 1300 G13BA SJ413-8 RN1038 PN9118 DN1361 FN9921
