ROTOR DISC » RN1405V

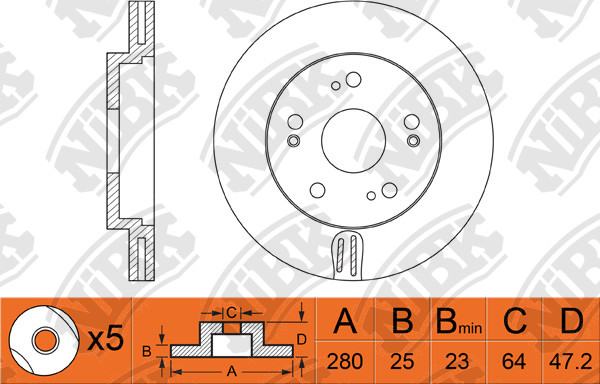

Specification
Type
Vented
Disc Thickness (Max)
25
Num. of holes
5
Height
47.2
Centering Diameter
64
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
280
Disc Thickness (Min)
23
Drum Ø:
142
Structure Material
G3000
Cross Reference
HONDA
45251-SEA-E00
HONDA
45251-TEA-T00
HONDA
45251TV0E00
HONDA
45251TV0E01
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.02~10.05 | 2000 | K20A6 | CL7 RHD | RN1405V | PN8125 | RN1203 | PN8109 | |
| 10.02~12.08 | 2000 | K20A7 | CM4 GR | RN1405VRN1218V | PN8465PN8485PN8125 | RN1203 | PN8109PN8398 | |
| 10.02~10.05 | 2000 | K20Z | CL7 LHD | RN1204VRN1405V | PN8125 | RN1203 | PN8109 | |
| 10.05~12.08 | 2000 | K20Z | CL7 LHD | RN1204VRN1405V | PN8125 | RN1203 | PN8109 |
| 04.03~12.08 | 2000 | K20A6 | EURO | RN1405V | PN8125PN8465 | RN2156 | PN8109PN8398 | FN0570 |
| 01.06~12.08 | 2000 | K20Z2 | EURO | RN1405VRN1204V | PN8125 | RN2156 | PN8398 | FN0570 |
| 05.16~ | 1500 | L15B | FC1 JPN | RN1218VRN1405V | PN8485 | RN2157 | PN8813 | |
| 05.16~08.19 | 1500 | L15B | FC1 RHD | RN1218VRN1405V | PN8485 | RN2157 | PN8813 | |
| 08.19~03.21 | 1500 | L15B | FC1 RHD | RN1405V | PN8485 | RN2157 | PN8813 | |
| 03.21~ | 1500 | L15BG | FE1 | RN1405V | PN8485 | RN2157 | PN8813 | |
| 05.16~03.21 | 1500 | L15BY | FK4 RHD | RN1405V | PN8485 | RN2157 | PN8813 | |
| 01.17~03.21 | 1500 | L15C | FK7 JPN | RN1405V | PN8485 | RN2157 | PN8813 | |
| 05.16~03.21 | 1600 | R16B | FC5 | RN1405V | PN8485 | RN2157 | PN8813 | |
| 09.15~03.21 | 1600 | R16B1 | FC5 LHD | RN1405V | PN8485 | RN2157 | PN8813 | |
| 09.15~03.21 | 1600 | R16B1 | FC5 LHD | RN1405V | PN8485 | RN2157 | PN8813 | |
| 08.18~03.21 | 1800 | R18Z1 | FC6 RHD SDN | RN1405V | PN8485 | RN2157 | PN8813 | |
| 01.17~03.21 | 1800 | R18Z1 | FK5 | RN1405V | PN8485 | RN2157 | PN8813 |
