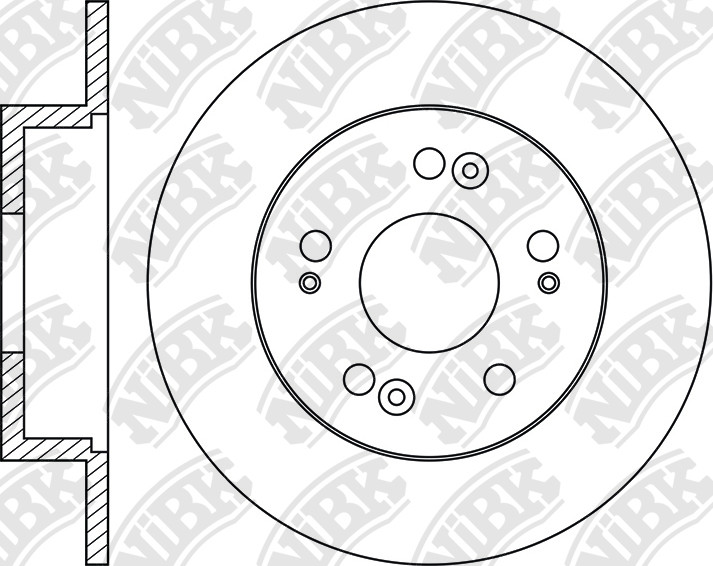

ROTOR DISC » RN1203
Specification
Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
49.2
Centering Diameter
64
Pitch Circle Ø
114.3
Front/Rear
Rear
Outter Ø
260
Drum Ø:
140
Disc Thickness (Min)
8.5
Structure Material
G3000
Cross Reference
HONDA
42510-SDA-A00
HONDA
42510-SDG-000
HONDA
42510-SEA-E00
HONDA
42510-SEA-E50
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.02~12.08 | 2000 | K20A | CL7 JPN | RN1218VRN1413V | PN8465 | RN1203 | PN8398 | |
| 10.02~10.05 | 2000 | K20A6 | CL7 RHD | RN1405V | PN8125 | RN1203 | PN8109 | |
| 10.02~12.08 | 2000 | K20A7 | CM4 GR | RN1218VRN1405V | PN8125PN8465PN8485 | RN1203 | PN8109PN8398 | |
| 01.02~01.06 | 2000 | K20A7 | CM4 RHD | RN1218V | PN8465 | RN1203 | PN8398 | |
| 01.06~12.08 | 2000 | K20A7 | CM4 RHD | RN1218V | PN8465 | RN1203 | PN8398 | |
| 10.02~10.05 | 2000 | K20Z | CL7 LHD | RN1405VRN1204V | PN8125 | RN1203 | PN8109 | |
| 10.05~12.08 | 2000 | K20Z | CL7 LHD | RN1204VRN1405V | PN8125 | RN1203 | PN8109 | |
| 10.05~12.08 | 2000 | K20Z | CL7 RHD | RN1204V | PN8125 | RN1203 | PN8109 | |
| 06.06~12.08 | 2000 | K20Z2 | EURO | RN1204VRN1218V | PN8485PN8125 | RN1203 | PN8109PN8398 | |
| 01.04~05.08 | 2200 | N22A1 | CN1 LHD | RN1204V | PN8125 | RN1203 | PN8109 | |
| 01.04~06.08 | 2200 | N22A1 | CN1 RHD | RN1204V | PN8125 | RN1203 | PN8109 | |
| 10.02~12.08 | 2400 | K24A | CL9 JPN | RN1413VRN1204V | PN8125PN8465 | RN1203 | PN8109PN8398 | |
| 02.03~11.05 | 2400 | K24A | CM5 LHD | RN1218V | PN8485 | RN1203 | PN8398 | |
| 11.05~12.08 | 2400 | K24A | CM5 LHD | RN1218V | PN8485PN8465 | RN1203 | PN8398 | |
| 10.02~10.05 | 2400 | K24A3 | CL9 LHD | RN1413VRN1204V | PN8125PN8465 | RN1203 | PN8398PN8109 | |
| 10.05~12.08 | 2400 | K24A3 | CL9 LHD | RN1204V | PN8125 | RN1203 | PN8109 | |
| 10.02~12.08 | 2400 | K24A3 | CL9 RHD | RN1413VRN1204V | PN8465PN8125 | RN1203 | PN8109PN8398 | |
| 01.02~12.08 | 2400 | K24A4 | CM5 RHD | RN1218V | PN8465 | RN1203 | PN8398 | |
| 11.05~12.08 | 2400 | K24A8 | CM5 RHD | RN1204VRN1218V | PN8465 | RN1203 | PN8398 | |
| 01.02~11.05 | 2400 | K24A8 | CM5 US | RN1218V | PN8485 | RN1203DN1393 | PN8398FN5524 | |
| 11.05~12.08 | 2400 | K24A8 | CM5 US | RN1218V | PN8485 | DN1393RN1203 | FN5524PN8398 | |
| 01.03~01.06 | 3000 | J30A4 | CM6 RHD | RN1413VRN1218V | PN8465 | RN1203 | PN8398 | |
| 11.05~11.08 | 3000 | J30A4 | CM6 US | RN1218VRN1413V | PN8465 | RN1203 | PN8398 | |
| 01.03~12.07 | 3000 | J30A4 | EURO | RN1218V | PN8465 | RN1203 | PN8398 |
