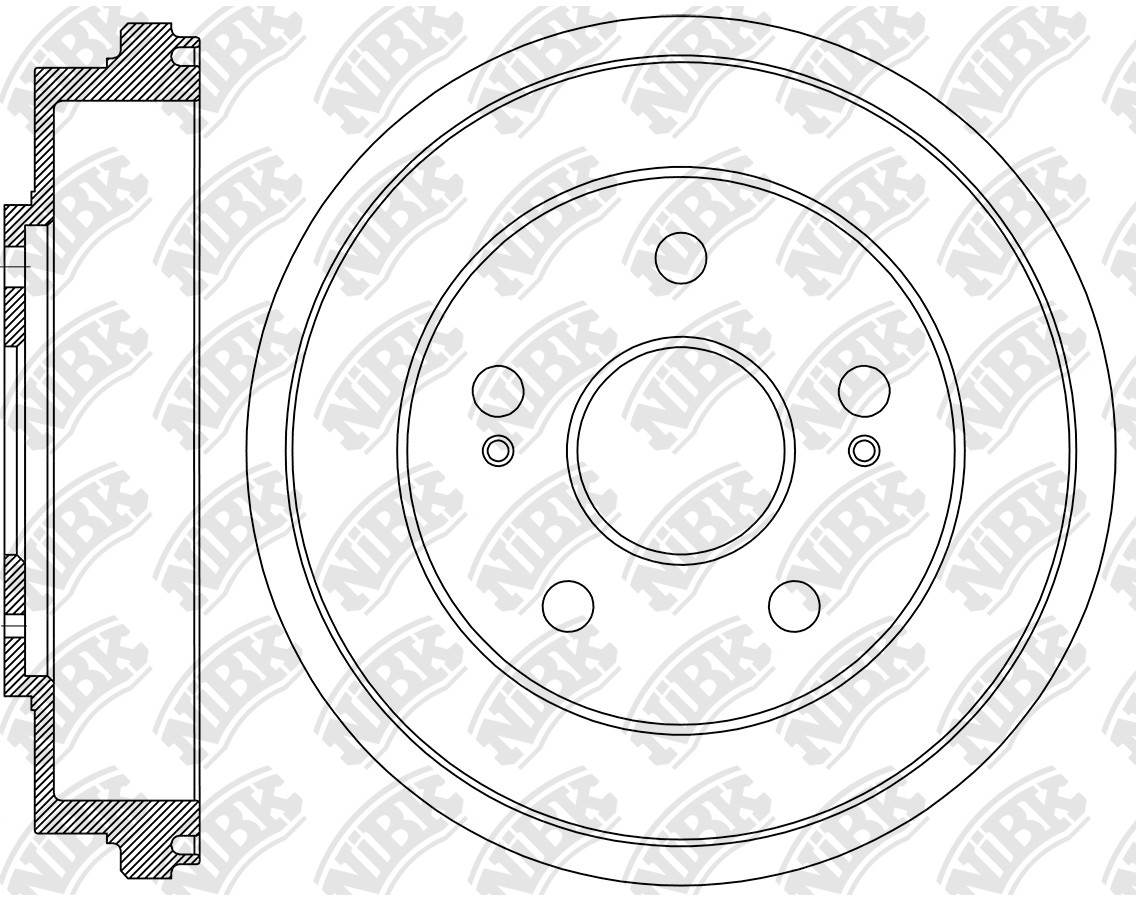

DRUM BRAKE » DN1393

Specification

Outter Ø
268
Num. of holes
5
Hole Ø
12.8
Centering Diameter
64.2
Height
60.4
Pitch Circle Ø
114.3
Drum Ø
220
Structure Material
G3000

Cross Reference

HONDA
42610-SDA-A00
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.02~11.05 2400 K24A8 CM5 US RN1218V PN8485 RN1203DN1393 FN5524PN8398
11.05~12.08 2400 K24A8 CM5 US RN1218V PN8485 RN1203DN1393 FN5524PN8398

Exemption from liability: the catalog data is advisory and can be used for reference only
