ROTOR DISC » RN1404

RN1404

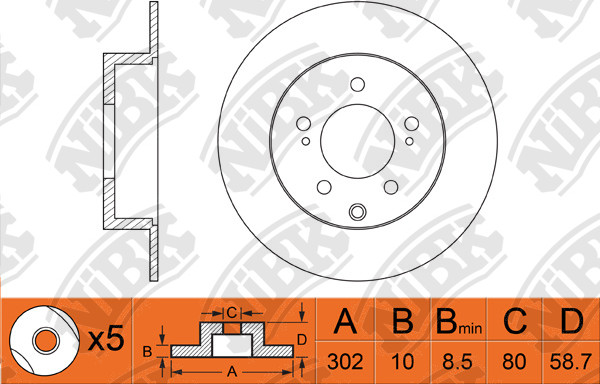

Specification

Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
58.7
Centering Diameter
80
Front/Rear
Rear
Outter Ø
302
Pitch Circle Ø
114.3
Drum Ø:
190
Disc Thickness (Min)
8.4
Structure Material
G3000

Cross Reference

CITROEN
4249F4
MITSUBISHI
4615A035
MITSUBISHI
4615A192
PEUGEOT
4249.61
PEUGEOT
4249.62
Peugeot / Citroen
16 115 004 80
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CITROEN   »   C-Crosser

01.07~03.12 2000 4B11-MMC EP RN1403V PN3233 RN1402RN1404 PN3450 FN23001FN0625
02.07~09.12 2200 DW12MTED4 EP RN1403V PN3233 RN1404 PN3450 FN0625
08.08~03.12 2400 4B12-MMC EP RN1403V PN3233 RN1404 PN3450 FN0625

MITSUBISHI   »   Delica D:5

12.09~11.11 2000 4B11 CV4W RN1209V PN3469 RN1404 PN3450 FN0625
12.06~12.19 2400 4B12 CV5W RN1209V PN3469 RN1404 PN3450 FN0625

MITSUBISHI   »   Lancer Evolution

07.08~03.15 2000 4B11 CX4A RN1366VRN1403V PN3233PN3469 RN1404 PN3502PN3450 FN23001

MITSUBISHI   »   Lancer EX

01.07~12.17 2000 4B11 CY4A RN1366VRN1209VRN1403V PN3469PN3233 RN1404RN1367RN1402 PN3450PN3502 FN23001

MITSUBISHI   »   Lancer Sportback

01.08~03.14 2000 4B11 CX4A RN1403V PN3233 RN1404DN1355 FN1267PN3450 FN0625

MITSUBISHI   »   Outlander

04.06~10.12 2000 BSY CW8W RN1403V PN3233 RN1404RN1402 PN3450 FN0625FN23001
04.06~10.12 2200 4HK/4HN CW7W RN1403V PN3233 RN1404 PN3450 FN0625
11.06~04.12 3000 6B31 CW6W RN1209VRN1403V PN3469PN3233 RN1404RN1402 PN3450 FN23001FN0625

PEUGEOT   »   4007

07.07~05.14 2200 DW12BTED4 RN1403V PN3233 RN1404 PN3450 FN0625
07.07~05.14 2400 4B12 RN1403V PN3233 RN1404 PN3450 FN0625
