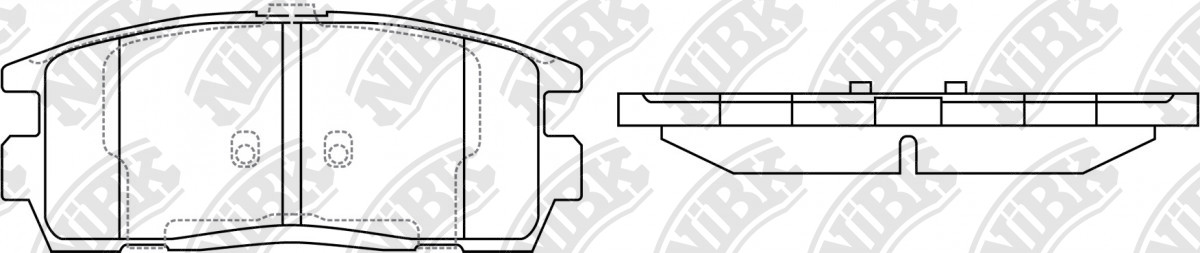

BRAKE PADS » PN0479
Specification
Length-1
110.7
Width-1
45.9
Thickness-1
15
Pcs In Set
4
Alternative
Cross Reference
CHEVROLET
1914 9904
CHEVROLET
19283758
CHEVROLET
96626075
CHEVROLET
D9662-26076
FMSI
D1275-8391
GM
19280696
GM
20801538
GM
42786002
GM
95459513
KASHIYAMA
D9063MH
OPEL
16 05 123
OPEL
48 19 239
OPEL
96 626 076
SUZUKI
55800-78J01
WVA
24498
WVA
24499
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.16~12.17 | 2000 | LNP / Z20D1 | 1LZ26 TH | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | 1LG26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | 1LU26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | 1LZ26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~08.11 | 2000 | Z20S / LLW | 1LZ26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | RLC26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | RLE26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | RLF26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | RLF26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2200 | A22DM | C140 | PN0068 | PN0479 | |||
| 03.13~01.18 | 2200 | Z22D1 / LNQ | 1LR26 EUL | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2200 | Z22D1 / LNQ | 1LX26 EUR | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2200 | Z22D1 / LNQ | 1LX26 GL | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2200 | Z22D1 / LNQ | 1LZ26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | LD9 / Z24SED | CD26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | LD9 / Z24SED | DC23 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | LD9 / Z24SED | L#26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | LD9 / Z24SED | L#26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE5 | CA26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE5 | CD26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE9 | #LZ26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 09.11~01.15 | 2400 | LE9 | 0L#26 RHD ASIA | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.12~01.15 | 2400 | LE9 | 1L#26 LHD ASIA | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE9 | 1LR26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE9 | 1LU26 RHD SG | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE9 | 1LX26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | Z24S | CA26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 3000 | LF1 | C140 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 3200 | 10 HM | C100 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.12~01.16 | 2400 | LEA | ZLR26 US | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.08~01.12 | 3600 | LY7 | ZLR26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.10~01.18 | 2400 | LAF | 1L#26 | RN1686V | PN0839 | RN2213V | PN0479 | FN0667 |
| 02.15~03.17 | 2400 | LEA | 1L#26 | RN1686V | PN0713PN34002 | RN2213V | PN0479 | FN0667 |
| 01.03~05.09 | 3400 | LNJ | 1L#26 | RN1622V | PN0378PN0068 | RN1677VDN1728 | PN0479 | FN0667 |
| 09.07~08.09 | 3600 | LY7 | 1L#26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~09.11 | 2000 | Z20S / LLW | C100 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 09.06~03.11 | 2400 | Z24SED | C100 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 09.06~03.11 | 3200 | Z32SE | C100 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 07.06~01.11 | 2000 | Z20S / LLW | 0LJ26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 07.06~01.11 | 2000 | Z20S / LLW | RL#26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 07.06~01.11 | 2400 | Z24SED | PN0068 | PN0479 | ||||
| 07.06~01.11 | 3200 | Z32SEE | PN0068 | PN0479 |
| 09.07~12.10 | 2400 | LD9(Z24SED) | TL#26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.11~01.15 | 2400 | LEA | TL#26 | RN1686V | PN0839PN34002PN0713 | RN2213V | PN0479 | FN0667 |
| 04.09~01.15 | 3000 | LFW | TL1 | RN1686V | PN0839 | RN2213V | PN0479 | FN0667 |
| 05.07~02.11 | 2000 | Z20S1 | CG | RN1622V | PN0068 | RN1677V | PN0479 | |
| 02.11~09.18 | 2200 | Z22D1 DI | CG | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.11~09.18 | 2400 | LE5,LE9 | CG | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 09.06~01.11 | 3200 | LU1 | CG | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.16~ | 2000 | B20DTH | PN0068 | PN0479 | FN0667 | |||
| 11.06~01.12 | 2000 | Z20DMH | J26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.11~01.16 | 2200 | A22DM | L07 | RN1622V | PN0068 | RN1677V | PN0479 | |
| 01.11~01.16 | 2200 | Z22D | J26 | RN1622V | PN0068 | RN1677V | PN0479 | |
| 01.11~01.16 | 2400 | A24X# | PN0068 | PN0479 | FN0667 | |||
| 11.06~01.12 | 2400 | Z24XED | H26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.11~01.16 | 3000 | A30X# | PN0068 | PN0479 | FN0667 | |||
| 11.06~01.12 | 3200 | Z32SE | H26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 11.06~01.12 | 3200 | Z32SE | K26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
