ROTOR DISC » RN1158

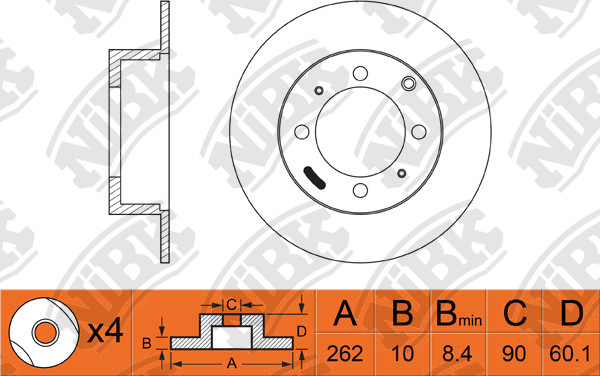

Specification
Type
Solid
Disc Thickness (Max)
10
Num. of holes
4
Height
60.1
Centering Diameter
90
Front/Rear
Rear
Outter Ø
262
Pitch Circle Ø
114.3
Drum Ø:
168
Disc Thickness (Min)
8.4
Structure Material
G3000
Cross Reference
HYUNDAI
58411M2050
HYUNDAI / KIA
58411M2050
MITSUBISHI
MB668083
MITSUBISHI
MB699964
MITSUBISHI
MB857915
OEM
11600221504
OEM
116002621504
OEM
MB669964
OEM
MB857978
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.98~10.02 | 2000 | G4CP | 205D | RN1106V | PN3271 | RN1158 | PN3174FN6687 | |
| 10.98~10.02 | 2000 | G4JP | 205D | RN1106V | PN3271 | RN1158 | FN6687PN3174 |
| 03.91~09.97 | 2000 | 4G63 | N33W | RN1106VRN1011V | PN3271 | DN1349RN1158 | FN6687PN3174 | FN0808 |
| 03.91~09.97 | 2000 | 4G63# | N43W | RN1106VRN1011V | PN3233PN3271 | DN1349RN1242RN1158 | PN3174FN6687 | FN6704 |
| 05.93~09.97 | 2400 | 4G64 | N34W | PN3271 | RN1158 | PN3174FN6687 | ||
| 05.93~09.97 | 2400 | 4G64 | N44W | PN3271 | RN1158 | PN3174 |
| 02.92~09.96 | 1800 | 4G93 | E52A | RN1011V | PN3271 | RN1158 | FN6701PN3174 | |
| 08.96~05.00 | 1800 | 4G93 | EC1A | RN1011V | PN3271 | RN1158DN1349 | FN6687PN3174 | |
| 02.92~08.96 | 2000 | 4D68-T | E57A | RN1011V | PN3271 | RN1158 | FN6701PN3174 | |
| 10.96~03.06 | 2000 | 4G63 | EA2A | RN1011V | PN3271 | RN1158 | PN3174 | FN6704 |
| 09.96~10.04 | 2000 | 4G63 | EA2W | RN1011VRN1237VRN1184V | PN3233PN3271PN3469 | RN1158 | PN3174 | FN6704 |
| 05.00~11.05 | 2000 | 4G94 | EC7A | RN1237V | PN3271 | RN1158DN1349 | FN6687PN3174 | |
| 02.92~08.96 | 2000 | 6A12 | E54A | RN1184VRN1011V | PN3271PN3233 | RN1158 | PN3174FN6701 | FN6704 |
| 12.98~05.03 | 2400 | 4G64 | EA3A_EU | RN1184V | PN3233 | RN1158 | PN3174 | FN6704 |
| 08.98~07.02 | 2400 | 4G64 | EC3A | RN1184VRN1237V | PN3233PN3469 | RN1158 | PN3174 | |
| 09.96~10.04 | 2500 | 6A13 | EA5A | RN1184V | PN3233 | RN1158 | PN3233 | FN6704 |
| 10.96~09.02 | 2500 | 6A13 | EA5W | RN1184V | PN3233 | RN1158 | PN3174 | FN6704 |
| 09.00~09.13 | 1600 | 4G18 | CS3A | RN1011VRN1237VRN1222V | PN3469PN3462 | DN1340DN1341RN1158 | PN3502FN6729 | FN6704 |
| 06.03~03.11 | 1600 | 4G18 | CS3W | RN1237V | PN3469 | RN1158 | PN3502 | FN6704 |
| 06.01~11.06 | 2400 | 4G69 | CS7A | RN1237VRN1365V | PN3469 | RN1242RN1158 | PN3502 | FN6704 |
| 06.01~11.06 | 2400 | 4G69 | CS7W | RN1237V | PN3469 | RN1158 | PN3502 | FN6704 |
