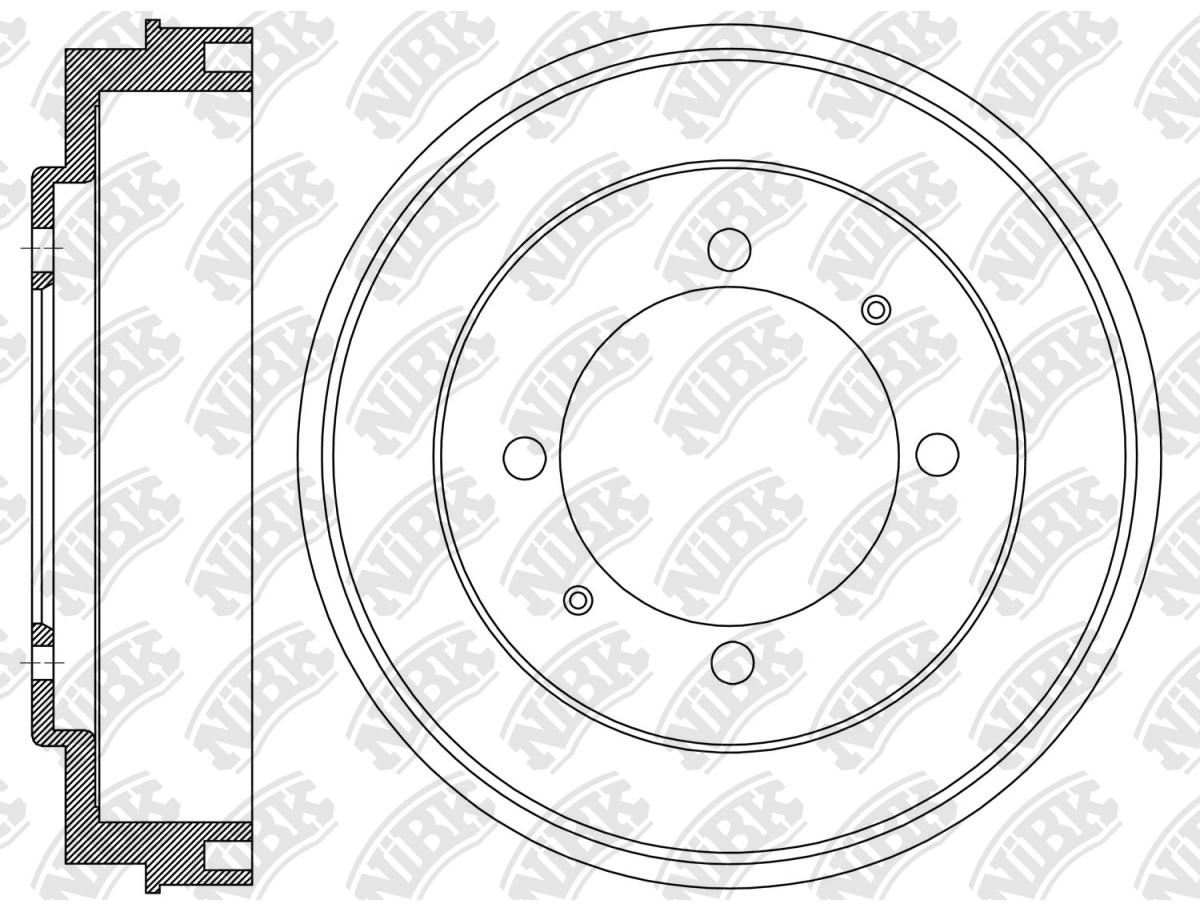

DRUM BRAKE » DN1341

DN1341

Specification

Outter Ø
234
Num. of holes
4
Hole Ø
12.7
Centering Diameter
90
Height
60
Pitch Circle Ø
114.3
Drum Ø
203
Structure Material
G3000

Cross Reference

MITSUBISHI
MR334867
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

MITSUBISHI   »   Lancer

09.00~09.13 1600 4G18 CS3A RN1011VRN1237VRN1222V PN3469PN3462 DN1340DN1341RN1158 PN3502FN6729 FN6704
09.00~09.13 1600 4G18 CS3A GLX LHD RN1222V PN3462 DN1340DN1341 FN6729
12.04~08.07 2000 4G94 CS6A RN1222VRN1011V PN3462 DN1340DN1341 FN6729
