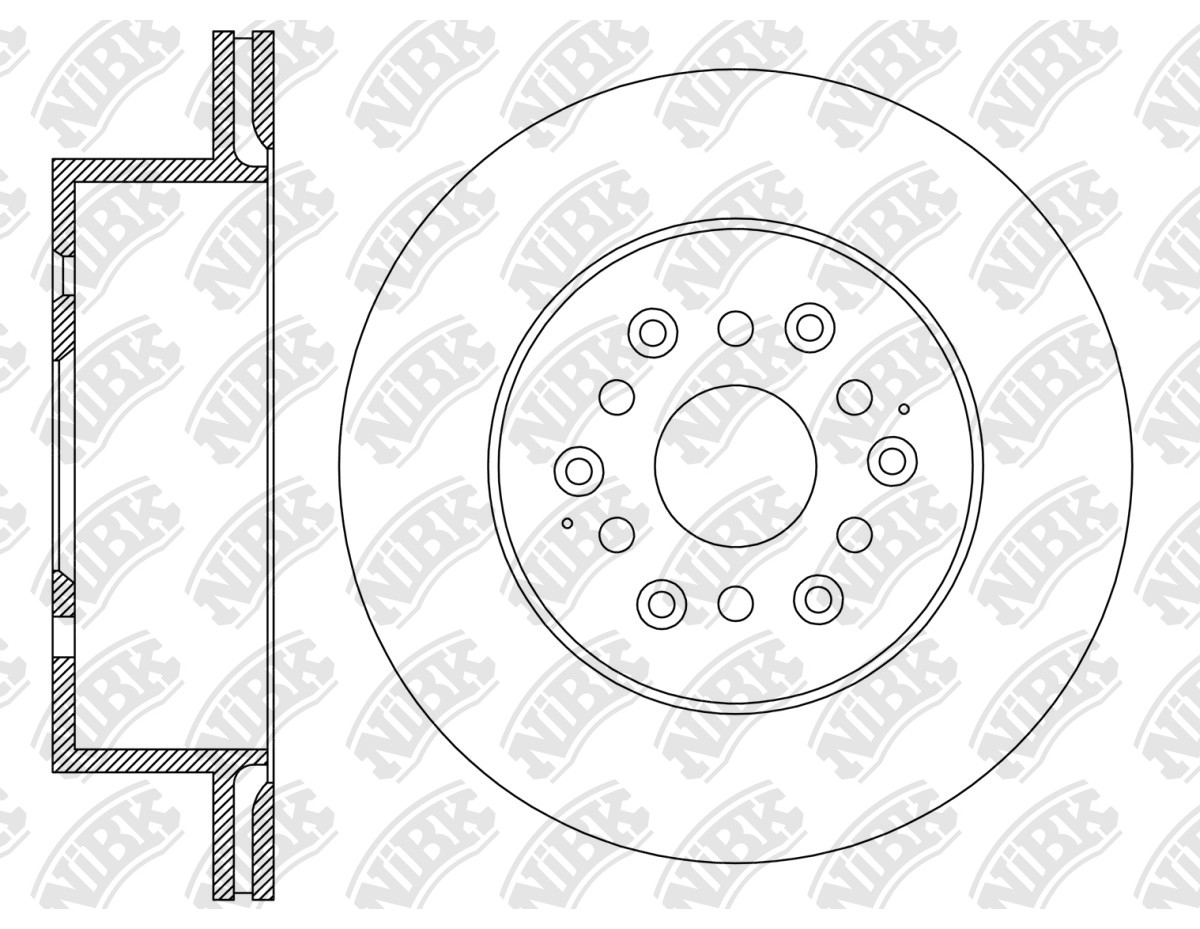

ROTOR DISC » RN2249V
Specification
Type
Vented
Outter Ø
320
Num. of holes
6
Hole Ø:
16.5
Disc Thickness (Max)
22
Disc Thickness (Min)
20
Height
82.5
Centering Diameter
77
Pitch Circle Ø
130
Drum Ø:
210
Front/Rear
Rear
Structure Material
G3000
Cross Reference
TOYOTA
42431-26220
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 02.19~ | 2800 | 1GD-FTV | GDH300R | RN2248V | PN1861 | RN2249VDN1116 | PN1862FN0809 | FN0837 |
| 02.19~ | 2800 | 1GD-FTV | GDH301L | RN2248V | PN1861 | DN1116RN2249V | FN0809PN1862 | FN0837 |
| 12.19~ | 2800 | 1GD-FTV | GDH303 | RN2248V | PN1861 | RN2249V | FN0809PN1862 | FN0837 |
| 07.19~ | 2800 | 1GD-FTV | GDH306L | RN2248V | PN1861 | RN2249V | PN1862 | FN0837 |
| 07.19~ | 2800 | 1GD-FTV | GDH306R | RN2248V | PN1861 | RN2249V | PN1862 | FN0837 |
| 02.19~ | 2800 | 1GD-FTV | GDH320R | RN2248V | PN1861 | DN1116RN2249V | FN0809PN1862 | FN0837 |
| 03.19~ | 2800 | 1GD-FTV | GDH322L | RN2248V | PN1861 | RN2249V | PN1862 | FN0837 |
| 03.19~ | 2800 | 1GD-FTV | GDH322R | RN2248V | PN1861 | RN2249V | PN1862 | FN0837 |
| 07.19~ | 3500 | 7GRFKS | GRH303L | RN2248V | PN1861 | RN2249V | PN1862 | FN0837 |
| 02.19~ | 3500 | 7GRFKS | GRH320L | RN2248V | PN1861 | DN1116RN2249V | FN0809PN1862 | FN0837 |
| 04.19~ | 3500 | 7GRFKS | GRH322R | RN2248V | PN1861 | RN2249V | PN1862 | FN0837 |
