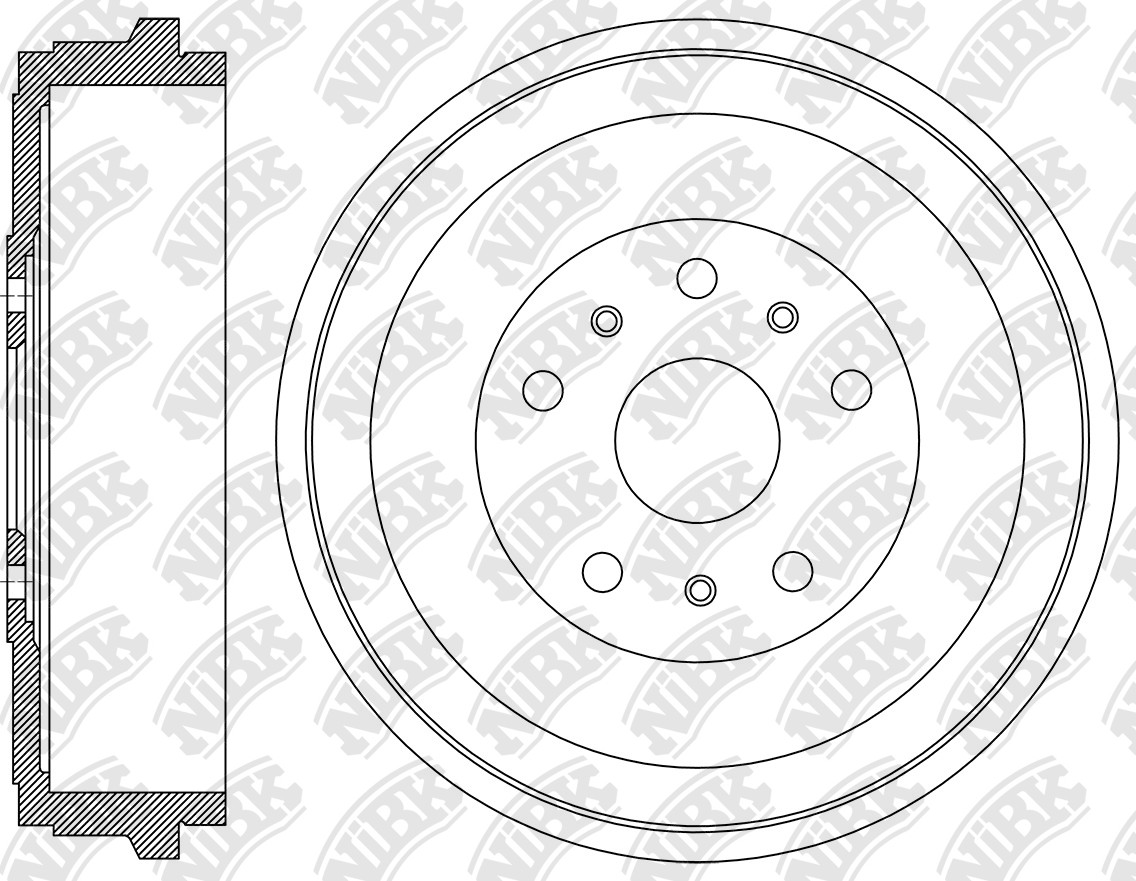

DRUM BRAKE » DN1638

Specification

Outter Ø
302
Num. of holes
5
Hole Ø
13.2
Centering Diameter
59
Height
78.5
Pitch Circle Ø
98
Drum Ø
254
Structure Material
G3000

Cross Reference

CHRYSLER
68269703AA
CHRYSLER
68317238AA
CHRYSLER
K68269703AA
CHRYSLER
K68317238AA
FIAT
51864509
FIAT
51940007
GM
95512101
OPEL
05 68 001
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
02.10~ 1400 843 A1.000 152.731.0.5 RN3007V PN0748W DN1638 FN41001
10.15~ 1600 263 A5.000 263.216.1.5 RN3007VRN1022V PN0748WPN0187W DN1638 FN41001
10.15~ 1600 263 A5.000 263.226.1.5 RN3007V PN0748W DN1638 FN41001
10.15~ 1600 263 A8.000 263.223.1.5 RN3007V PN0748W DN1638 FN41001
01.12~01.18 1600 A16FDH X12 RN3007V PN0748W DN1638 FN41001
01.12~01.18 1600 A16FDL X12 RN3007V PN0748W DN1638 FN41001
09.14~ 2400 ED6 VM RN3007V PN0748W DN1638 FN41001

Exemption from liability: the catalog data is advisory and can be used for reference only
