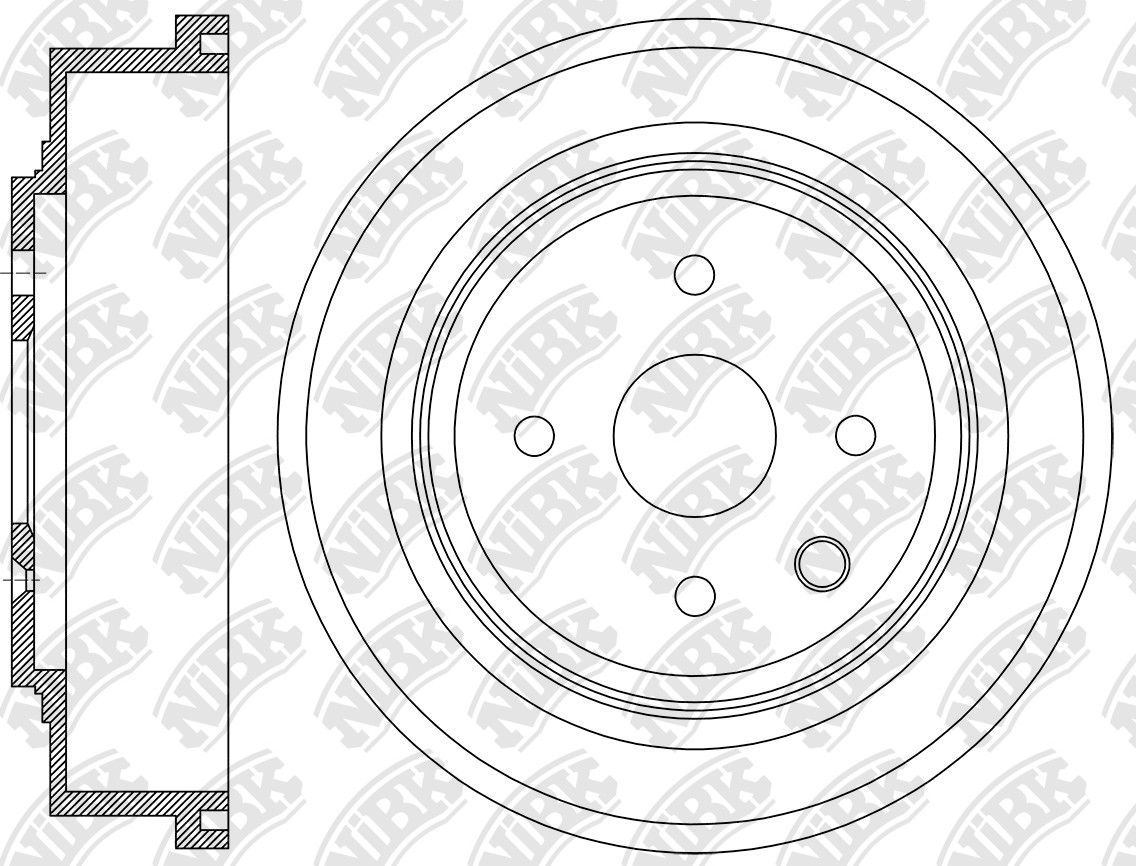

DRUM BRAKE » DN1593

Specification

Outter Ø
265
Num. of holes
4
Centering Diameter
57
Height
68.8
Pitch Circle Ø
100
Drum Ø
230
Structure Material
G3000
Hole Ø
14.2

Cross Reference

GM
24444064
GM
95526656
OPEL
24444064
OPEL
5 68 066
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
03.04~12.14 1400 Z14XEP A04 RN1202V PN0355 DN1593RN1800 PN0329FN0782FN0599
03.04~12.14 1600 Z16XEP A04 RN1202V PN0355 DN1593RN1800 FN0599PN0329FN0782
06.04~01.12 1300 Z13DTJ F25 RN1647VRN1202V PN0355 DN1593RN1648 FN0599PN0329

Exemption from liability: the catalog data is advisory and can be used for reference only
