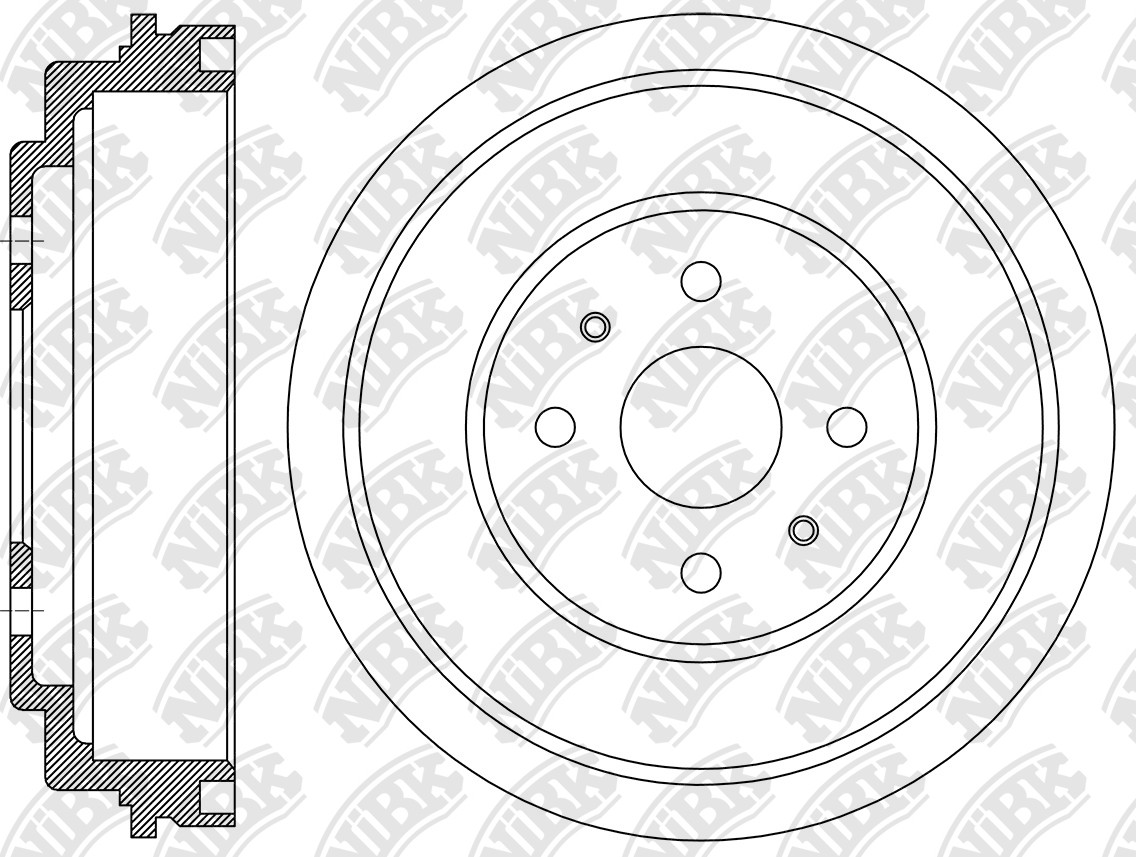

DRUM BRAKE » DN1513

Specification

Outter Ø
221.5
Num. of holes
4
Centering Diameter
62.5
Height
60.1
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000
Hole Ø
12.6

Cross Reference

HYUNDAI
58411-02501
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
12.06~01.11 1000 G4HC PRIME RHD PN0439 DN1513 FN11162
01.03~ 1100 G4HD MX PN0439 DN1513 FN11162
01.99~01.06 1000 G4HC 5 DR SEDAN DN1513 FN11162
01.98~10.14 1100 G4HG 5 DR SEDAN PN0439 DN1513 FN11162

Exemption from liability: the catalog data is advisory and can be used for reference only
