DRUM BRAKE » DN1467

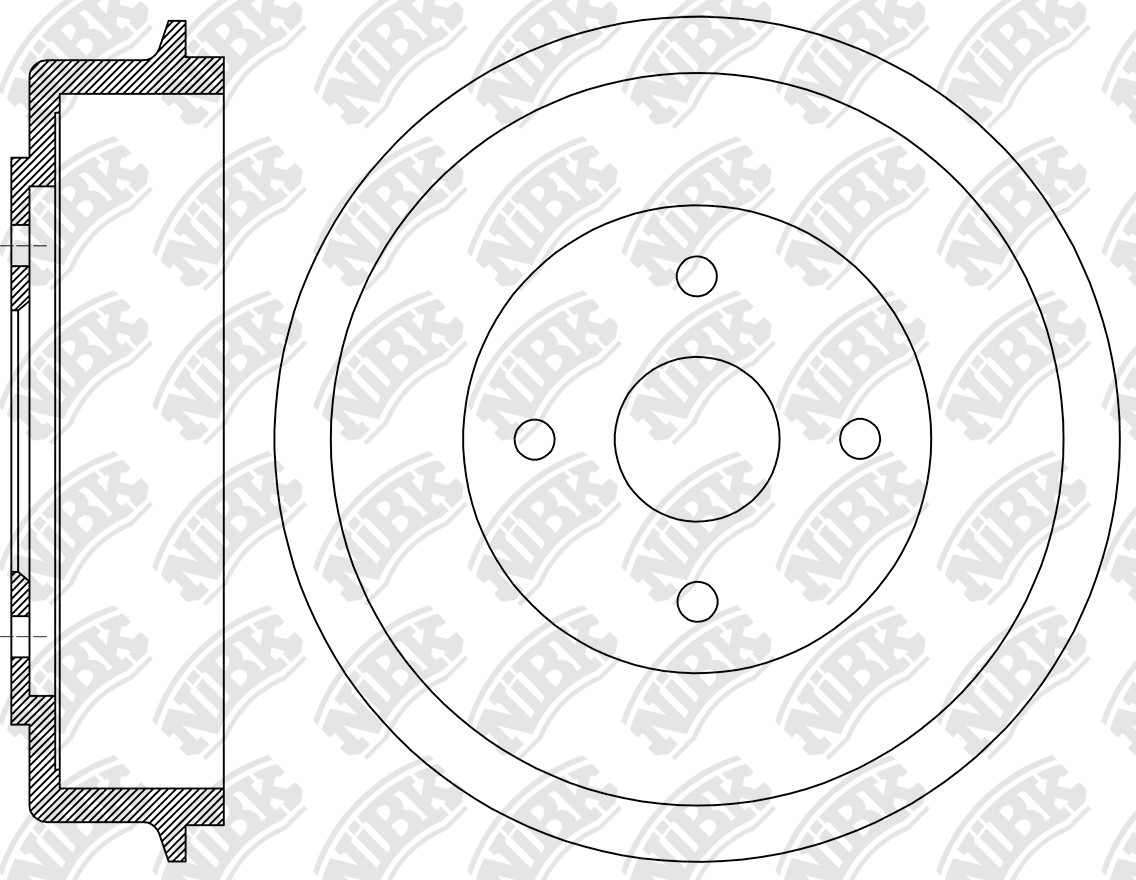

Specification
Outter Ø
244
Num. of holes
4
Hole Ø
12.8
Centering Diameter
76.2
Height
61
Pitch Circle Ø
114.3
Drum Ø
203.2
Structure Material
G3000
Cross Reference
BENDIX
PDR0698
HYUNDAI
58411-29000
HYUNDAI
58411-29100
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.00~10.01 | 1500 | G4EB | XD | PN2245 | DN1467DN1478RN1130 | FN11158PN2130 | ||
| 04.00~10.01 | 1500 | G4EC | XD SDN | PN0542 | DN1478DN1467 | FN11158 | ||
| 06.00~10.01 | 1800 | G4BB | XD | PN2245 | DN1478RN1130DN1467 | PN2130FN11158 | ||
| 04.00~10.01 | 2000 | G4GC | XD | RN1230V | PN0788 | RN1130DN1467DN1478 | FN11158PN2130 |
| 06.95~05.01 | 1500 | G4EK | J2 | PN2245 | DN1467 | PN2130FN11158 | ||
| 03.98~04.00 | 1500 | G4FK | J2 SDN | PN2245 | DN1467 | FN11158 | ||
| 05.95~05.01 | 1600 | G4GR | J2 | RN1007V | PN0091PN2245 | RN1130DN1467 | PN2130FN11158 | |
| 06.95~05.01 | 1800 | G4GM | J2 | PN2245 | DN1467 | PN2130 | ||
| 06.95~05.00 | 1800 | G4GM | JF2 | PN2245 | DN1467 | FN11158PN2130 | ||
| 03.95~04.00 | 2000 | G4DF | J2 | PN0091PN2245 | DN1467 | FN11158PN2130 |
