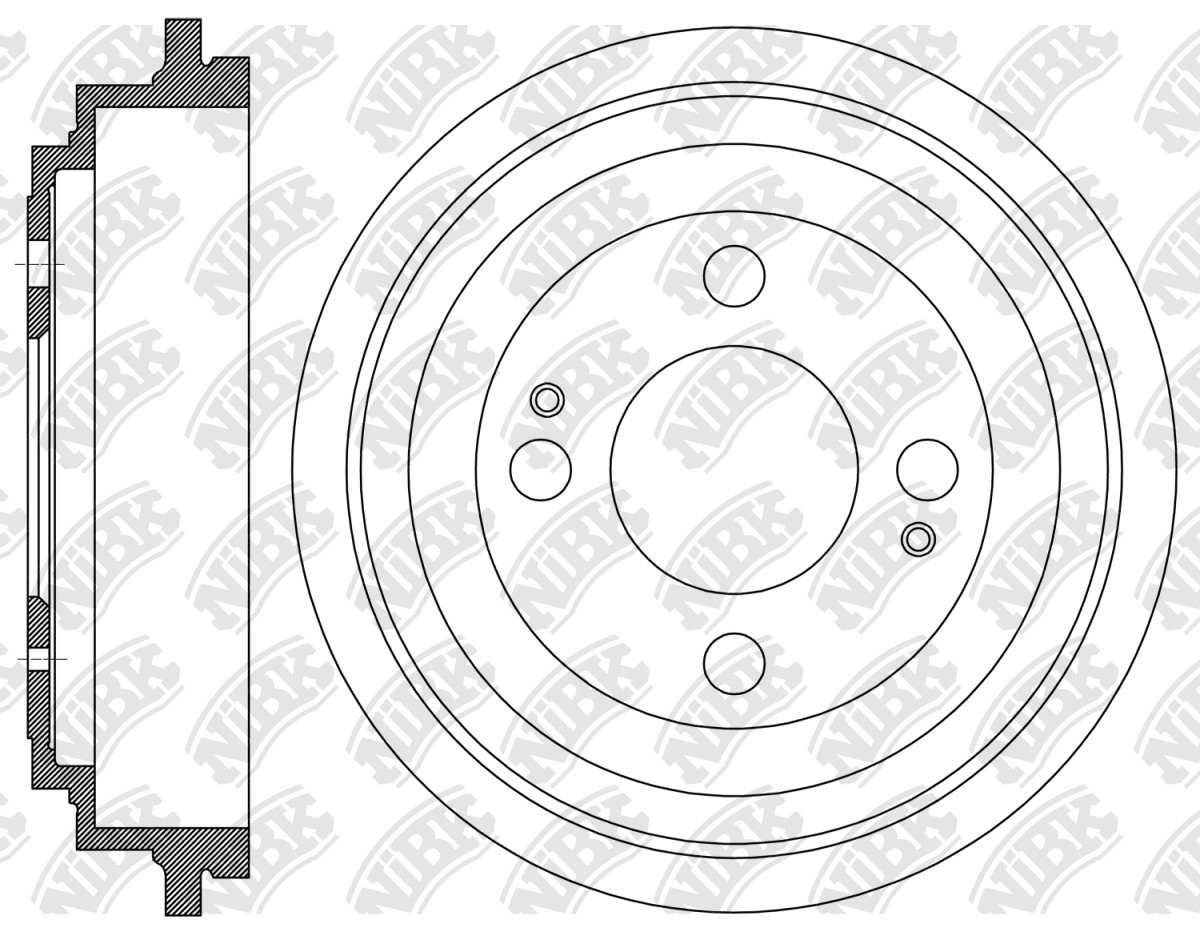

DRUM BRAKE » DN1382
Specification
Outter Ø
224
Num. of holes
4
Hole Ø
12.6
Centering Diameter
61
Height
56
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000
Cross Reference
HONDA
42610-SAA-000
HONDA
42610-SAA-Q00
HONDA
42610-SEN-H00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 12.15~02.18 | 1200 | L12B3 | DF1 LHD | PN8824 | DN1382 | FN0726 | ||
| 04.13~02.18 | 1200 | L12B3 | DF1 RHD | PN8824 | DN1382 | FN0726 | ||
| 12.15~02.18 | 1300 | L13Z1 | DF1 GL | PN8824 | DN1382 | FN0726 |
| 11.02~09.05 | 1200 | L12A2 | GE1 KN | RN1138V | PN8265 | DN1382 | FN5546 | |
| 01.02~01.06 | 1300 | L13A# | GD6 LHD | RN1138V | PN8265 | DN1382 | FN5546 | |
| 01.06~01.09 | 1300 | L13A# | GD6 LHD | RN1138V | PN8265 | DN1382 | FN5546 | |
| 11.02~09.05 | 1500 | L15A1 | HGD8 RHD | RN1138V | PN8265 | RN1052DN1382 | FN5546PN8206 | |
| 09.05~01.08 | 1500 | L15A1 | HGD8 RHD | RN1138V | PN8265 | DN1382RN1052 | FN5546PN8206 |
| 10.07~08.13 | 1300 | L13A | GE6 | RN1089VRN1350V | PN8264PN8868PN8263 | DN1382 | FN5534PN8206FN28002 | |
| 06.01~09.07 | 1300 | L13A(i-DSI) | GD1 JPN | RN1376VRN1350V | PN8265PN8263 | RN1052DN1382 | FN5534PN8206 | |
| 06.01~09.07 | 1500 | L15A | GD3 JPN | RN1376VRN1138V | PN8265 | DN1382RN1052 | FN5534PN8206 |
