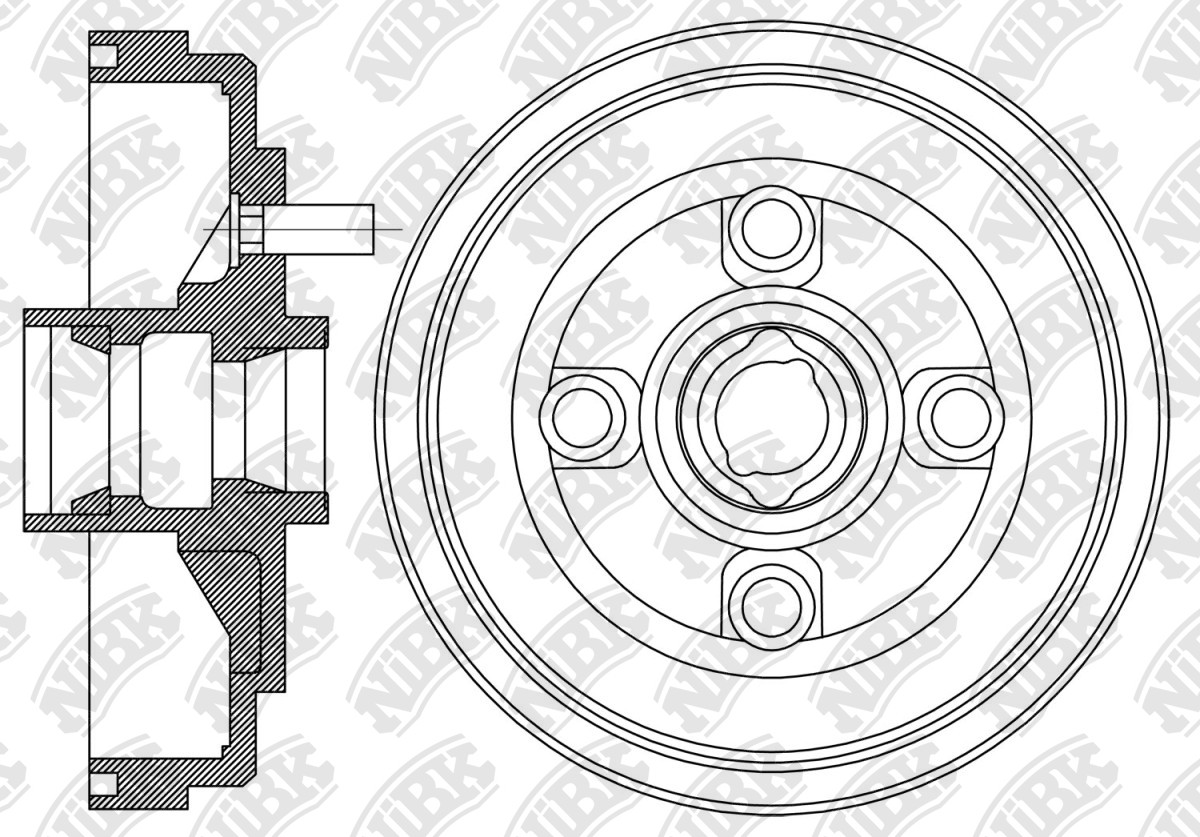

DRUM BRAKE » DN1227H

DN1227H

Specification

Outter Ø
207
Num. of holes
4
Hole Ø
13.8
Centering Diameter
40.5
Height
80.7
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000

Cross Reference

TOYOTA
42043-10010
TOYOTA
42043-10030
TOYOTA
42043-19015
TOYOTA
42043-19035
TOYOTA
42403-10020
TOYOTA
42403-10060
TOYOTA
42403-16030
TOYOTA
42403-19015
TOYOTA
42403-19075
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Corolla II

09.90~09.94 1300 4E-FE EL41 RN1097V PN1077 DN1227H FN2321
09.94~11.95 1300 4E-FE EL51 RN1097V PN1077 DN1227HDN1202H FN2321
09.90~09.94 1500 1N-T NL40 RN1097V PN1077 DN1227H FN2321
09.94~11.95 1500 1N-T NL50 RN1097V PN1077 DN1202HDN1227H FN2321
09.90~08.94 1500 5E-FE EL43 RN1115V PN1077 DN1227H FN2321
09.94~11.95 1500 5E-FE EL53 RN1097V PN1077 DN1227HDN1202H FN2321

TOYOTA   »   Cynos

08.95~12.95 1300 4E-FE EL52 RN1097V PN1077 DN1227HDN1202H FN2321
01.91~08.95 1500 5E-FE EL44 RN1115V PN1077 DN1227H FN2321
08.95~11.95 1500 5E-FHE EL54 RN1115V PN1077 DN1202HDN1227H FN2321

TOYOTA   »   Paseo

04.91~08.95 1500 5E-FE EL44 RN1115V PN1077 DN1227H FN2321
08.95~12.95 1500 5E-FE EL54L RN1097VRN1115V PN1077 DN1202HDN1227H FN2321

TOYOTA   »   Sera

03.90~12.95 1500 5E-FHE EXY10 RN1115V PN1077 DN1227H PN1178FN2321

TOYOTA   »   Starlet

12.89~01.96 1300 4E-FE EP82 RN1115VRN1097V PN1256PN1077 DN1227H FN2321

TOYOTA   »   Tercel

09.90~09.94 1500 3E-E EL42L RN1097V PN1077 DN1227H FN2321
09.94~12.95 1500 5E-FE EL53L RN1097V PN1077 DN1202HDN1227H FN2321
