ROTOR DISC » RN1097V

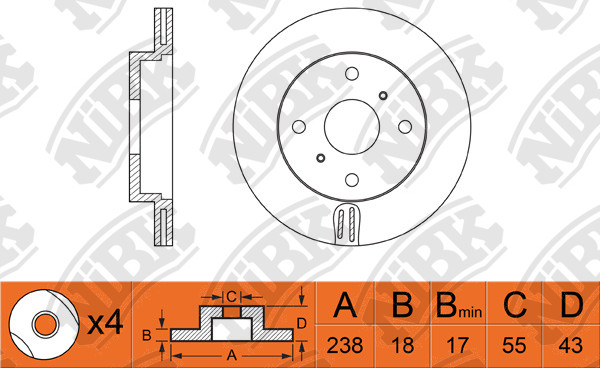

Specification
Type
Vented
Disc Thickness (Max)
18
Num. of holes
4
Height
43
Centering Diameter
55
Front/Rear
Front
Pitch Circle Ø
100
Outter Ø
238
Drum Ø:
127
Disc Thickness (Min)
17
Structure Material
G3000
Cross Reference
BENDIX
561672B
TOYOTA
43512-10150
TOYOTA
43512-16070
TOYOTA
43512-16120
TOYOTA
4351216110
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.90~09.94 | 1300 | 4E-FE | EL41 | RN1097V | PN1077 | DN1227H | FN2321 | |
| 09.94~07.99 | 1300 | 4E-FE | EL51 | RN1097V | PN1077 | DN1227HDN1202H | FN2321 | |
| 09.90~09.94 | 1500 | 1N-T | NL40 | RN1097V | PN1077 | DN1227H | FN2321 | |
| 09.94~07.99 | 1500 | 1N-T | NL50 | RN1097V | PN1077 | DN1227HDN1202H | FN2321 | |
| 09.90~09.94 | 1500 | 5E-FE | EL45 | RN1097V | PN1077 | FN2313 | ||
| 09.94~10.99 | 1500 | 5E-FE | EL53 | RN1097V | PN1077 | DN1202HDN1227H | FN2321 | |
| 09.94~07.99 | 1500 | 5E-FE | EL55 | RN1097V | PN1077 | FN2313 |
| 08.95~07.99 | 1300 | 4E-FE | EL52 | RN1097V | PN1077 | DN1227HDN1202H | FN2321 | |
| 08.96~03.99 | 1300 | 4E-FE | EL52C | RN1097V | PN1077 | DN1202H | FN2321 |
| 09.96~03.99 | 1500 | 5E-FE | EL54Convertible | RN1097VRN1115V | PN1077 | DN1202H | FN2321 | |
| 08.95~07.99 | 1500 | 5E-FE | EL54L | RN1115VRN1097V | PN1077 | DN1202HDN1227H | FN2321 |
| 12.89~01.96 | 1300 | 4E-FE | EP82 | RN1115VRN1097V | PN1077PN1256 | DN1227H | FN2321 | |
| 01.96~07.99 | 1300 | 4E-FE | EP91 | RN1097V | PN1077PN1256 | FN2321 | ||
| 01.96~07.99 | 1300 | 4E-FE | EP91L | RN1097V | PN1256PN1077 | FN2321 | ||
| 02.89~12.98 | 1300 | 4E-FTE | EP82 | RN1097VRN1115V | PN1256PN1077 | FN2321PN1178 | ||
| 01.92~09.95 | 1500 | 1N | NP80 | RN1097V | PN1077PN1256 | FN2326FN2321 |
