DRUM BRAKE » DN1108

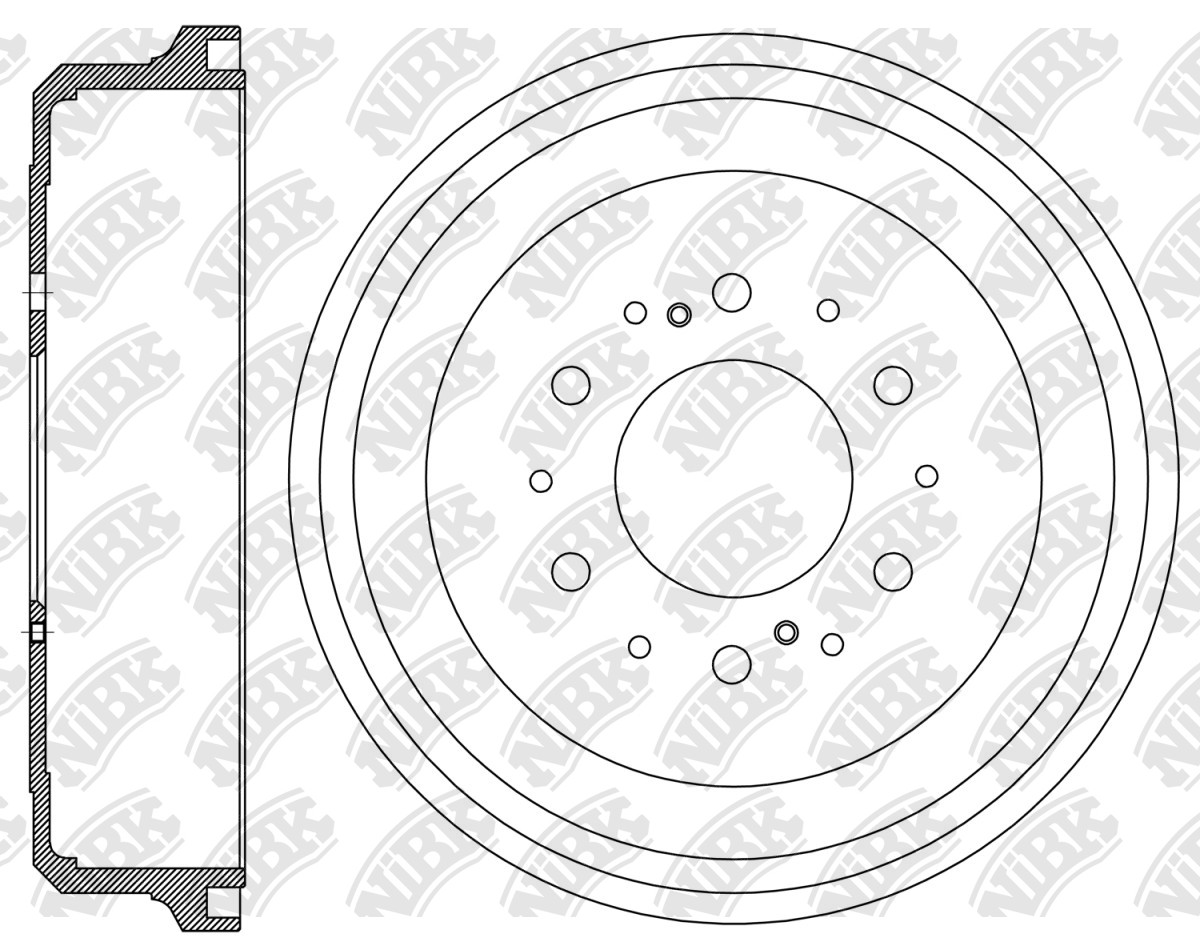

DN1108

Specification

Outter Ø
342.5
Num. of holes
6
Hole Ø
14.5
Centering Diameter
91
Height
83
Pitch Circle Ø
139.7
Drum Ø
295
Structure Material
G3000

Cross Reference

TOYOTA
42431-35170
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Hilux

09.88~08.91 2000 3Y YN105 RN1139V PN1219PN1387 DN1108 FN2305
01.88~12.97 2400 2L LN105 RN1139V PN1219PN1387 DN1108 FN2305
09.88~08.94 2800 3L LN100 RN1139V PN1393PN1387PN1219 DN1108 FN2305
09.88~08.97 2800 3L LN106 RN1139V PN1219PN1387PN1393 DN1108 FN2305
08.88~09.99 2800 3L LN106L RN1139V PN1393PN1387PN1219 DN1108 FN2305
08.88~09.99 2800 3L LN106R RN1139V PN1219PN1387 DN1108 FN2305
