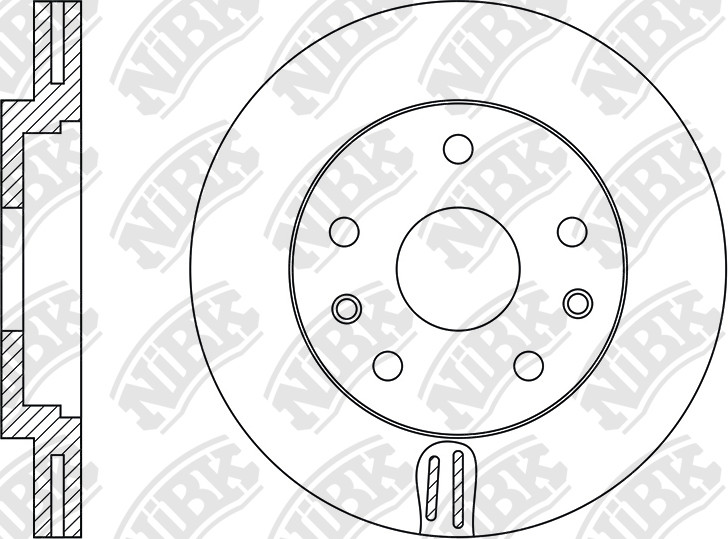

ROTOR DISC » RN43005V
Specification
Type
Vented
Disc Thickness (Max)
26
Num. of holes
5
Height
44
Centering Diameter
68
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
296
Cross Reference
RENAULT
40 20 600 02R
RENAULT
40 20 644 08R
RENAULT
40 20 668 13R
RENAULT
40 20 669 49R
RENAULT
40 20 670 23R
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.07~03.18 | 2000 | F4R 813 | BT0H | RN43005V | PN0393 | RN43006H | PN2702 | |
| 10.07~07.15 | 2000 | F4R 813 | DT0H | RN43005V | PN0393 | PN2702 | ||
| 10.07~07.15 | 2000 | M4R 704 | BT0F | RN43005V | PN0393 | RN43006H | PN2702 | |
| 10.07~07.15 | 2000 | M9R 74# | LB/COUPE/ESTATE | RN43005V | PN0393 | RN43006H | PN2702 | |
| 10.07~07.15 | 2000 | M9R 744 | KT0K | RN43005V | PN0393 | RN43006H | PN2702 | |
| 01.11~07.15 | 2000 | M9R857 | BT0S HB | RN43005V | PN0393 | RN43006H | PN2702 |
| 08.10~08.15 | 1500 | K9K | L70 | RN43005V | PN2201 | RN43006H | PN0521 | |
| 08.10~08.15 | 2000 | M4R 735 | L70# LHD | RN43005V | PN0393 | RN43006H | PN0521 | |
| 08.10~08.15 | 2000 | M4R 735 | L70# RHD | RN43005V | PN0393PN2201 | RN43006H | PN0521 | |
| 08.10~08.15 | 2000 | M9R | L70Y | RN43005V | PN2201PN0393 | RN43006H | PN0521 | |
| 08.10~08.15 | 2500 | 2ZV 604 | L707 | RN43005V | PN0393 | RN43006H | PN0521 |
| 08.12~06.14 | 1200 | H5F 405 | KZ16 EST | RN43007VRN43005V | PN0551 | RN43004H | PN0019WPN0381 | |
| 03.12~04.16 | 1200 | H5F4# | #Z | RN43005VRN43007V | PN0551 | RN1572H | PN0381PN0019W | |
| 03.08~04.16 | 1400 | H4J 700 | #Z | RN43005V | PN0551 | RN1572HRN43004H | PN0381PN0019W | |
| 03.08~04.16 | 1500 | K9K 8# | #Z | RN43005V | PN0393 | RN1572H | PN0381PN0019W | |
| 03.08~04.16 | 1600 | K4M 8# | #Z | RN43005V | PN0551 | RN1572H | PN0381PN0019W | |
| 03.08~04.16 | 1900 | F9Q 870 | #Z | RN43005V | PN0393 | RN1572H | PN0381PN0019W | |
| 03.08~04.16 | 2000 | M9R | #Z | RN43005V | PN0551PN0393 | RN1572H | PN0381PN0019W |
| 04.12~09.16 | 1200 | H5F 400 | JZ# | RN43005V | PN0393 | RN43004HRN1881H | PN0019WPN0381 | |
| 01.12~09.16 | 1400 | H4J 700 | JZ1V | RN43005V | PN0393 | RN1881H | PN0019WPN0730 | |
| 04.13~10.16 | 1500 | K9K 636 | JZ14 | RN43005V | PN0393 | RN43004HRN1881H | PN0019WPN0730 | |
| 01.09~09.16 | 1500 | K9K 657 | JZ29 | RN43005V | PN0393 | RN1881H | PN0730 | |
| 01.09~09.16 | 1500 | K9K 832 | JZ0 | RN43005V | PN0393 | RN43004H | PN0381PN0019W | |
| 04.09~09.16 | 1500 | K9K 837 | JZ09 | RN43005V | PN0551PN0393 | RN1881HRN43004H | PN0019WPN0730PN0381 | |
| 04.09~06.16 | 1500 | K9K 837 | JZ10 | RN43005V | PN0393 | RN1881H | PN0730 | |
| 01.09~09.16 | 1600 | R9M 402 | JZ00 | RN43005V | PN0393 | RN1881H | PN0730 | |
| 01.12~09.16 | 2000 | M4R 713 | JZ1P | RN43005V | PN0393 | RN1881H | PN0730 |
