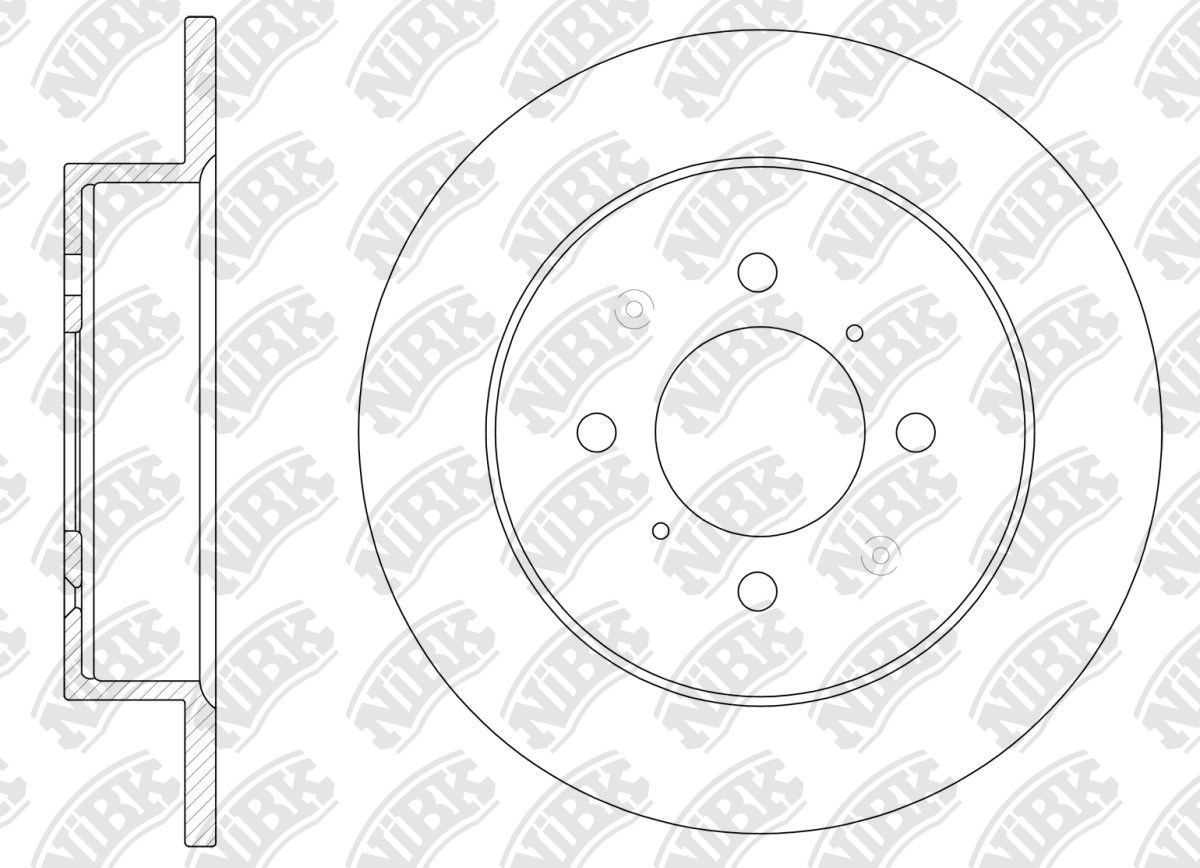

ROTOR DISC » RN2152
Specification
Type
Solid
Outter Ø
260
Num. of holes
4
Disc Thickness (Max)
9
Disc Thickness (Min)
8
Height
48.6
Centering Diameter
61
Pitch Circle Ø
100
Drum Ø:
156
Front/Rear
Rear
Structure Material
G3000
Cross Reference
HONDA
42510-S5A-000
HONDA
42510-S5A-A00
HONDA
42510-S5H-T00
HONDA
42510-S6D-E00
HONDA
42510-ST3-E00
OEM
42510S6DE00
ROVER
SDB000290
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.03~09.05 | 1400 | D14Z6 | EU7 | RN1089V | PN8103 | RN2152 | PN8398 | |
| 01.01~12.05 | 1600 | D16V1 | EP2 RHD | RN1089V | PN8103 | RN2152 | PN8398 | |
| 01.01~09.03 | 1600 | D16V1 | EU8 | RN1089V | PN8103 | RN2152 | PN8398 | |
| 09.03~09.05 | 1600 | D16V1 | EU8 | RN1089V | PN8103 | RN2152 | PN8398 | |
| 01.02~12.05 | 1700 | 4EE2 | EP4 | RN1089V | PN8103 | RN2152 | PN8398 | |
| 06.01~12.05 | 1700 | 4EE2 | EU9 | RN1089V | PN8103 | RN2152 | PN8398 | |
| 01.01~09.03 | 1700 | D17A2 | ES1 RHD | RN1089V | PN8264 | RN2152DN1377 | PN8398FN5520 | |
| 09.03~12.05 | 1700 | D17A2 | ES1 RHD | RN1089V | PN8264 | DN1377RN2152 | FN5520PN8398 | |
| 01.01~12.05 | 1700 | D17Z1 | ES1 RHD | RN1089V | PN8484 | RN2152 | PN8398 | |
| 09.03~09.05 | 2000 | K20A3 | ET1 | RN1089V | PN8264 | RN2152 | PN8398 |
