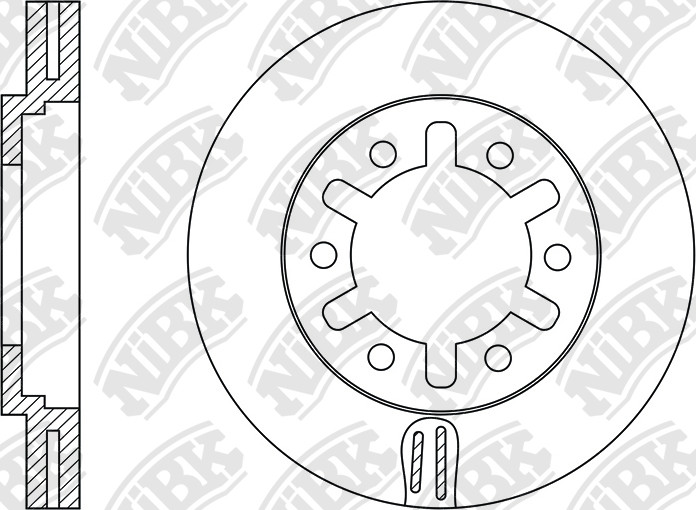

ROTOR DISC » RN1421V
Specification
Type
Vented
Disc Thickness (Max)
32
Num. of holes
6
Height
47
Centering Diameter
109
Front/Rear
Front
Pitch Circle Ø
137
Outter Ø
306
Disc Thickness (Min)
30
Drum Ø:
153
Structure Material
G3000
Cross Reference
NISSAN
40206-VB000
NISSAN
40206-VB001
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.07~ | 3000 | ZD30DDTi | TY61 | RN1421V | PN2413 | DN1287 | FN2280FN1179 | FN8802 |
| 10.97~ | 3000 | ZD30DDTI | Y61 | RN1421V | PN2413 | RN1240V | PN2199 | FN8802 |
| 10.97~12.16 | 4200 | TD42 | Y61 | RN1421V | PN2413 | RN1240V | FN2280PN2199FN1179 | FN8802 |
| 05.01~ | 4800 | TB48DE | Y61 | RN1421V | PN2413 | RN1240V | PN2199 | FN8802 |
| 10.97~10.99 | 2800 | RD28TI | WYY61 | RN1421V | PN2413 | RN1240V | PN2199 | FN8802 |
| 10.97~03.00 | 2800 | RD28TI | Y61 | RN1421V | PN2413 | RN1240V | PN2199 | FN8802 |
| 12.12~ | 3000 | ZD30DDTI | TY61LHD | RN1421V | PN2413 | DN1287 | FN2280FN1179 | FN8802 |
| 09.99~ | 4200 | TD42 | TY61 | RN1421V | PN2413 | DN1287 | FN1179FN2280 | FN8802 |
| 10.97~09.99 | 4200 | TD42T | WRGY61 | RN1421V | PN2413 | RN1240V | PN2199 | FN8802 |
| 04.04~12.12 | 4500 | TB45# | TY61 | RN1421V | PN2413 | PN2199FN1179FN2280 | ||
| 10.97~11.02 | 4500 | TB45E | WGY61 | RN1421V | PN2413 | RN1240V | PN2199 | FN8802 |
| 08.97~11.02 | 4500 | TB45S | Y61 | RN1421V | PN2413 | FN1179FN2280PN2199 | FN8802 | |
| 12.12~ | 4800 | TB48DE | TY61 | RN1421V | PN2413 | RN1240V | PN2199 |
