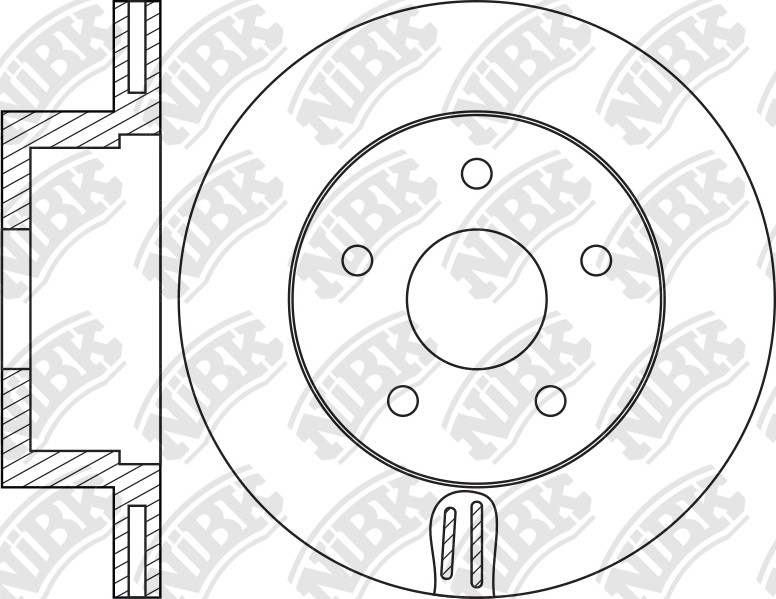

ROTOR DISC » RN1301V
Specification
Type
Vented
Disc Thickness (Max)
20
Num. of holes
5
Height
68
Centering Diameter
60
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
256
Drum Ø:
141
Structure Material
G3000
Disc Thickness (Min)
19
Cross Reference
TOYOTA
43512-22120
TOYOTA
43512-22170
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.89~10.92 | 2200 | L | X60 | RN1301V | PN1246 | PN1142 | ||
| 01.89~12.96 | 2400 | 22R | RX81 | RN1301V | PN1246 | PN1142 | FN0669 | |
| 01.89~10.92 | 2400 | 2L-T | X60 | RN1301V | PN1246 | PN1142 |
| 08.90~10.92 | 1800 | 4S-F# | SX80 | RN1301V | PN1246 | DN1250 | FN2232 | |
| 08.88~10.92 | 2000 | 1G-FE | GX81 | RN1301V | PN1246 | PN1142 | FN0669 |
| 04.96~08.01 | 4SFE | SXS11Y | RN1301V | PN1246 | FN2232 | |||
| 10.02~08.08 | 2000 | 1G-FE | GBS12 | RN1301V | PN1246 | DN1266 | FN2363 | |
| 08.01~08.07 | 2000 | 1G-FE | GXS12 | RN1301V | PN1246 | DN1266 | FN2363 | |
| 12.95~10.02 | 2000 | 1G-GPE | GXS10 | RN1301V | PN1246 | DN1265DN1266 | FN2333FN2252FN2363 | |
| 09.07~01.18 | 2000 | 1TR-FE | TSS13Y | RN1301V | PN1246 | DN1266 | FN2363FN2232 | |
| 08.08~01.18 | 2000 | 1TR-FPE | TSS10 | RN1301V | PN1246 | DN1266 | FN2363 | |
| 08.08~01.18 | 2000 | 1TR-FPE | TSS11 | RN1301V | PN1246 | DN1266 | FN2363 | |
| 08.08~01.18 | 2000 | 1TR-FPE | TSS11Y | RN1301V | PN1246 | DN1266 | FN2363 | |
| 01.01~08.08 | 2000 | 3S-FE | SXS13Y | RN1301V | PN1246 | FN2232 | ||
| 08.01~07.07 | 2000 | 3S-FE | SXS13Y | RN1301V | PN1246 | FN2232 | ||
| 12.95~08.08 | 2000 | 3Y-PE | YXS10 | RN1301V | PN1246 | DN1265DN1266 | FN2333FN2252FN2363 | |
| 10.01~06.07 | 2000 | 3Y-PE | YXS10H | RN1301V | PN1246 | DN1266 | FN2363 | |
| 12.95~08.08 | 2000 | 3Y-PE | YXS11 | RN1301V | PN1246 | DN1265DN1266 | FN2333FN2252FN2363 | |
| 12.95~08.08 | 2000 | 3Y-PE | YXS11Y | RN1301V | PN1246 | DN1265 | FN2333FN2252FN2232FN2363 | |
| 01.95~06.07 | 2400 | 2L-TE | LXS11 | RN1301V | PN1246 | FN2252FN2333FN2363 | ||
| 12.95~08.99 | 2400 | 2L-TE | LXS11 | RN1301V | PN1246 | DN1265 | FN2333FN2252 | |
| 04.96~01.99 | 2400 | 2L-TE | LXS11Y | RN1301V | PN1246 | FN2232 | ||
| 05.98~08.01 | 3000 | 5L | LXS12 | RN1301V | PN1246 | DN1265 | FN2252 |
