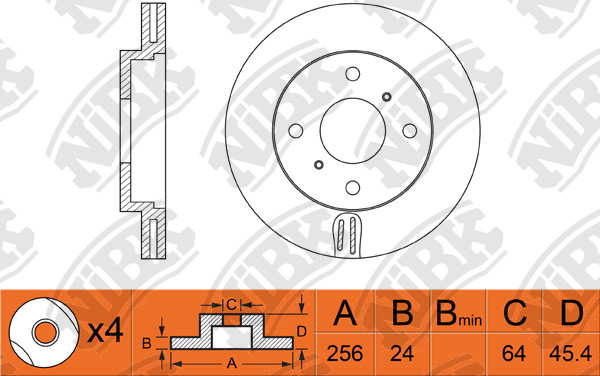

ROTOR DISC » RN1222V
Specification
Type
Vented
Disc Thickness (Max)
24
Num. of holes
4
Height
45.4
Centering Diameter
64
Pitch Circle Ø
100
Front/Rear
Front
Outter Ø
256
Drum Ø:
144.2
Disc Thickness (Min)
22.4
Structure Material
G3000
Notes
Thickness : 24
Cross Reference
MITSUBISHI
MB699285
MITSUBISHI
MR449770
MITSUBISHI
MR449771
MITSUBISHI
MR955636
PROTON
MB699285
PROTON
MR449771
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.00~08.13 | 1300 | 4G13 | CS1A | RN1222V | PN3462 | DN1340 | FN6729 | |
| 01.03~11.10 | 1500 | 4G15 | CS2A | RN1222V | PN3462 | DN1340 | FN6729FN6723 | |
| 12.04~07.07 | 1500 | 4G15 | CS2W | RN1222V | PN3462 | DN1340 | FN6729 | |
| 09.00~06.05 | 1600 | 4G18 | CS3A | RN1222VRN1011VRN1237V | PN3469PN3462 | RN1158DN1340DN1341 | FN6729PN3502 | FN6704 |
| 09.00~09.13 | 1600 | 4G18 | CS3A GLX LHD | RN1222V | PN3462 | DN1340DN1341 | FN6729 | |
| 01.91~01.96 | 1600 | 4G92 | CA4A | RN1222V | PN3271 | RN1923 | PN3314 | |
| 06.92~10.96 | 1800 | 4G93 | CB5A | RN1222V | PN3271 | RN1923 | PN3314 | |
| 08.96~08.00 | 1800 | 4G93 | CK5AR | RN1222V | PN3285 | DN1352 | FN6701 | |
| 06.00~06.07 | 1800 | 4G93 | CS5AR | RN1222V | PN3462 | DN1340 | FN6729 | |
| 12.02~09.09 | 1800 | 4G93 | CS5AZ | RN1222V | PN3462 | DN1340 | FN6729 | |
| 12.04~08.07 | 2000 | 4G94 | CS6A | RN1011VRN1222V | PN3462 | DN1340DN1341 | FN6729 |
