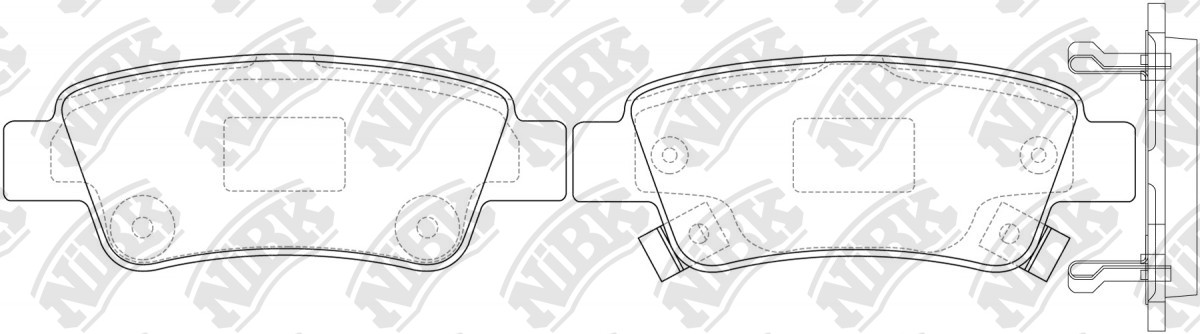

BRAKE PADS » PN8809
Specification
Length-1
108.8
Width-1
42
Thickness-1
15.5
Pcs In Set
4
Cross Reference
BENDIX
DB2256
HONDA
43022-SWW-G00
HONDA
43022-SWW-G01
HONDA
43022-SWW-G02
HONDA
43022-T1G-G00
HONDA
43022SWWG03
KASHIYAMA
D5159
WVA
24635
WVA
24636
WVA
24637
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 11.11~10.14 | 1600 | N16A1 | RE6 | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 10.14~08.18 | 1600 | N16A1 | RE6 | RN2353V | PN8802 | RN1618 | PN8809 | FN8003 |
| 08.12~12.18 | 2000 | R20A# | RE5 LHD | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 10.06~09.09 | 2000 | R20A2 | RE5 LHD | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 09.09~08.12 | 2000 | R20A2 | RE5 LHD | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 10.06~09.09 | 2000 | R20A2 | RE5 RHD | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 09.09~08.12 | 2000 | R20A2 | RE5 RHD | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 01.10~01.11 | 2200 | N22A1 | RE6 | RN1243V | PN8808 | RN1618RN1259 | PN8809 | FN8003 |
| 10.06~09.09 | 2200 | N22A2 | RE6 | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 09.09~12.12 | 2200 | N22B3 | RE6 | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 03.07~03.10 | 2400 | K24Z4 | RE7 LHD | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 03.10~08.12 | 2400 | K24Z4 | RE7 LHD | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
| 03.10~08.12 | 2400 | K24Z4 | RE7 RHD | RN1243V | PN8808 | RN1618 | PN8809 | FN8003 |
