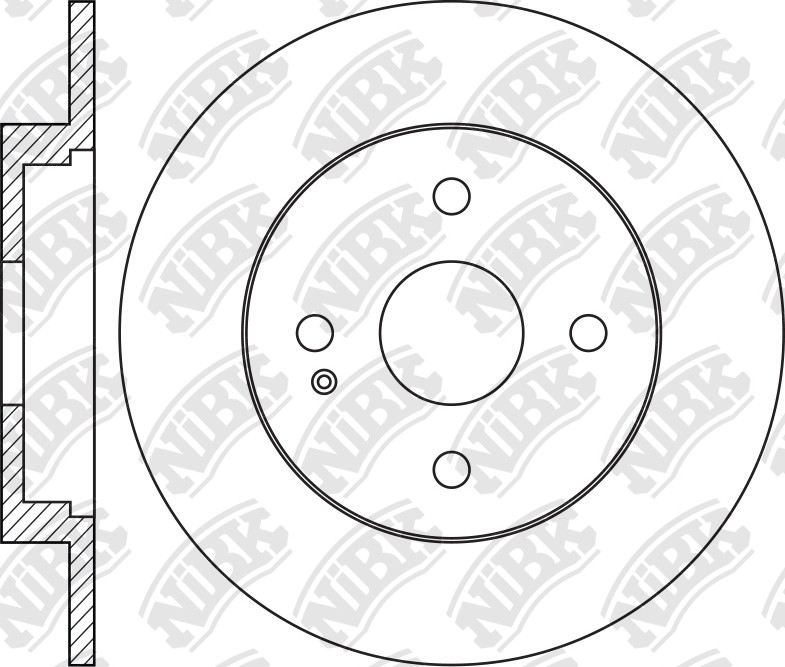

ROTOR DISC » RN2064

Specification

Type
Solid
Outter Ø
255
Num. of holes
4
Hole Ø:
13.3
Disc Thickness (Max)
9.5
Height
35.6
Centering Diameter
55
Pitch Circle Ø
100
Drum Ø:
124
Front/Rear
Rear

Cross Reference

MAZDA
DA9L26251
MAZDA
N243-26-251
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
04.18~ 1500 P5-Y5 ALDM06 SDN RN2495V PN5816 RN2064 FN0630PN25001
11.19~ 1500 P5-VPR AENA14 RN2495V PN5817 RN2064 PN5813

Exemption from liability: the catalog data is advisory and can be used for reference only
