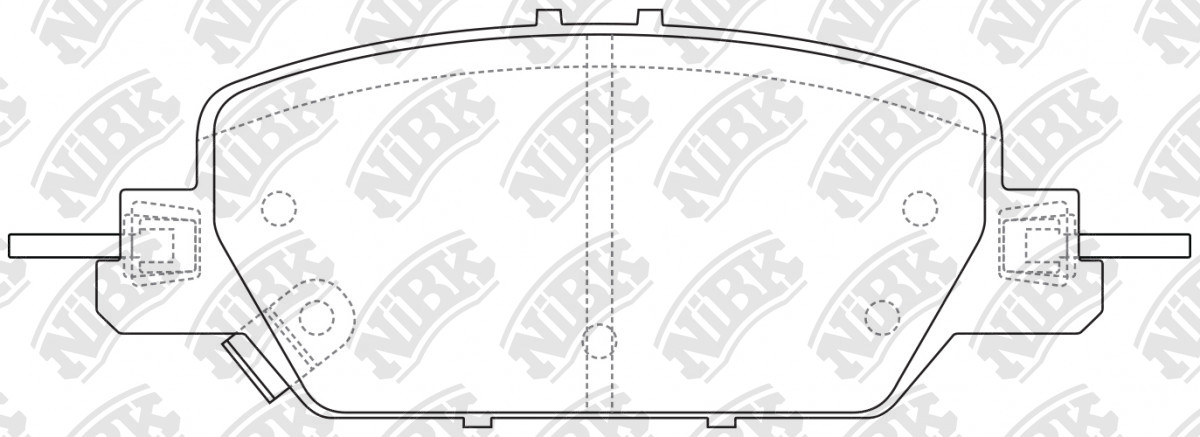

BRAKE PADS » PN8817
Specification
Length-1
118.9
Width-1
49.3
Thickness-1
17
Pcs In Set
4
Cross Reference
BENDIX AUS
DB2450
FMSI
D2037-9268
HONDA
43022-THA-H00
HONDA
43022-THA-H01
HONDA
43022-TLA-A00
HONDA
43022-TLA-A01
HONDA
43022-TLA-A11
HONDA
43022-TLA-A20
HONDA
43022-TLA-H00
HONDA
43022-TLA-H01
HONDA
43022-TNY-E00
KASHIYAMA
D5248MH
WVA
22633
WVA
22634
WVA
22635
WVA
22852
WVA
22854
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.18~ | 1500 | L15B | RW1 JPN | PN8802 | RN2228 | PN8817 | ||
| 08.18~ | 1500 | L15B | RW2 JPN | PN8802 | RN2228 | PN8817 | ||
| 10.16~09.19 | 1500 | L15B# | RW1 VTN | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.19~03.22 | 1500 | L15B# | RW2 KH LHD | RN2227V | PN8818PN0647 | RN2228 | PN8817 | |
| 10.16~ | 1500 | L15BG | HRW18 LHD | PN8802 | RN2228 | PN8817 | ||
| 10.16~09.19 | 1500 | L15BY | HRW18 RHD | PN8802 | RN2228 | PN8817 | ||
| 09.19~ | 1500 | L15BY | HRW18 RHD | PN8802 | RN2228 | PN8817 | ||
| 10.16~ | 1500 | L15BY | HRW28 RHD | PN8802 | RN2228 | PN8817 | ||
| 09.22~ | 1500 | L15BZ | RS4 CN | PN8831 | RN2228 | PN8817 | ||
| 10.16~ | 1500 | L15Y | RW1 RHD | PN8802 | RN2228 | PN8817 | ||
| 09.19~ | 1600 | N16A# | RW7 LHD | PN8802 | RN2228 | PN8817 | ||
| 10.16~09.19 | 1600 | N16A# | RW8 LHD PH | PN8802 | RN2228 | PN8817 | ||
| 12.18~ | 2000 | LFB | RT5 JPN | RN2347V | PN8831 | RN2228 | PN8817 | |
| 12.18~ | 2000 | LFB | RT6 | RN2347V | PN8802 | RN2228 | PN8817 | |
| 10.16~09.19 | 2000 | R20# | HRW38 RHD | PN8802 | RN2228 | PN8817 | ||
| 09.19~ | 2000 | R20A9 | HRW38 RHD | PN8802 | RN2228 | PN8817 | ||
| 08.17~12.20 | 2000 | R20A9 | RW4 LHD | RN2227V | PN8818 | RN2228 | PN8817 | |
| 10.16~ | 2400 | K24W9 | RW5 | RN2227V | PN8818 | RN2228 | PN8817PN8807 | |
| 10.16~ | 2400 | K24W9 | RW6 | RN2227V | PN8818 | RN2228 | PN8817 | |
| 01.16~ | 2400 | K24Z | RW3 | RN2227V | PN8818 | RN2228 | PN8817 |
| 10.16~09.19 | 1500 | L15B7 | RW1 KA | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.19~02.23 | 1500 | L15B7 | RW1 KK | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.19~ | 1500 | L15B7 | RW2 US/CND | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.22~ | 1500 | L15BE | RS4 | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.22~ | 2000 | LFC3 | RS5 | PN8831 | RN2228 | PN8817 | ||
| 09.22~ | 2000 | LFC3 | RS6 | PN8831 | RN2228 | PN8817 |
