MOTORCYCLE BRAKE PADS » PM138

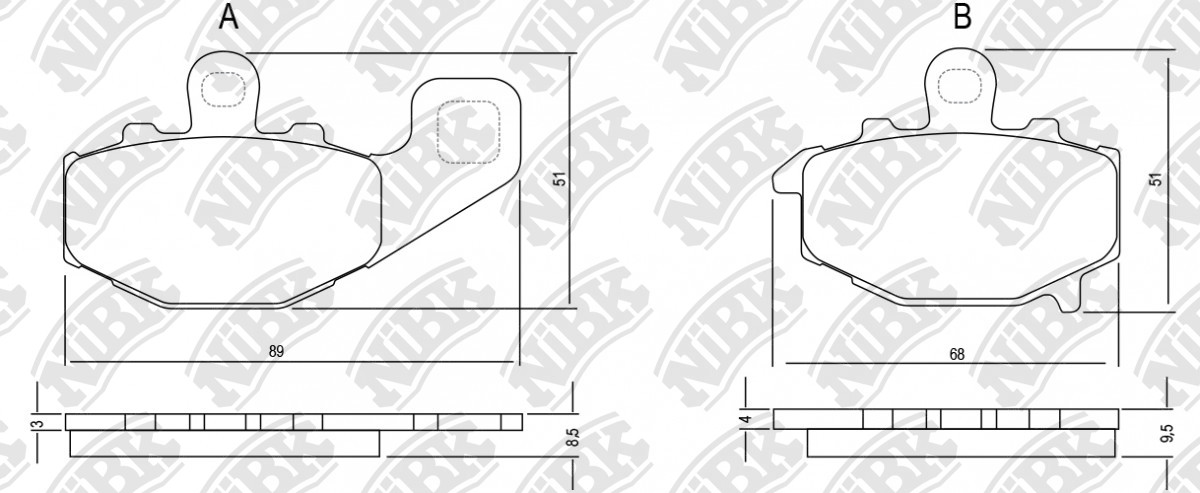

Specification

Length-1
89
Width-1
51
Thick-1
8.5
TYP
R
Length-2
68
Width-2
51
Thick-2
9.5

Variation

PM138S[NiBK]

Cross Reference

KAWASAKI
43082 0004
KAWASAKI
43082 0068
KAWASAKI
43082 1157
KAWASAKI
43082 1160
KAWASAKI
43082 1171
KAWASAKI
43082 1190
KAWASAKI
43082 1213
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.12~ 650 PM120PM138
01.13~ 650 PM119 PM138PM120
01.06~ 650 PM119 PM138PM120
01.06~ 650 PM119 PM120PM138
01.95~01.96 1100 PM138
01.97~01.98 1100 PM138
01.07~ 650 ER650 KLE650F PM119 PM138
01.03~01.06 1000 PM201 PM138
01.11~ 1000 PM204 PM138
01.04~01.05 750 PM119 PM120PM138
01.05~01.07 750 PM119 PM120PM138
01.10~ 1000 PM204 PM138
01.97~01.01 400 PM058 PM138
01.93~ 550 PM104PM529 PM138
01.98~01.01 400 PM233 PM138
01.03~ 1000 PM201 PM138
01.08~01.10 1000 PM204 PM138
01.10~ 1000 PM204 PM138
01.04~01.07 1000 PM187 PM138
01.93~01.97 600 PM058 PM138
01.95~01.97 600 PM058 PM138
01.98~01.99 600 PM112 PM138
01.99~01.01 600 PM112 PM138
01.03~01.04 600 PM187 PM138
01.07~01.08 600 PM243 PM138
01.09~ 600 PM243 PM138
01.02~01.02 636 PM112 PM138
01.03~01.04 636 PM187 PM138
01.05~01.06 636 PM187 PM138
01.05~01.06 600 PM187 PM138
01.07~ 600 PM243 PM138
01.94~01.95 900 PM058 PM138
01.96~01.97 900 PM112 PM138
01.98~01.99 900 PM112 PM138
01.99~01.01 900 PM112 PM138
01.02~01.03 900 PM201 PM138
01.93~01.05 600 PM058 PM138
01.06~01.07 600 PM058 PM138
01.12~ 650 PM119 PM138PM120

Exemption from liability: the catalog data is advisory and can be used for reference only
