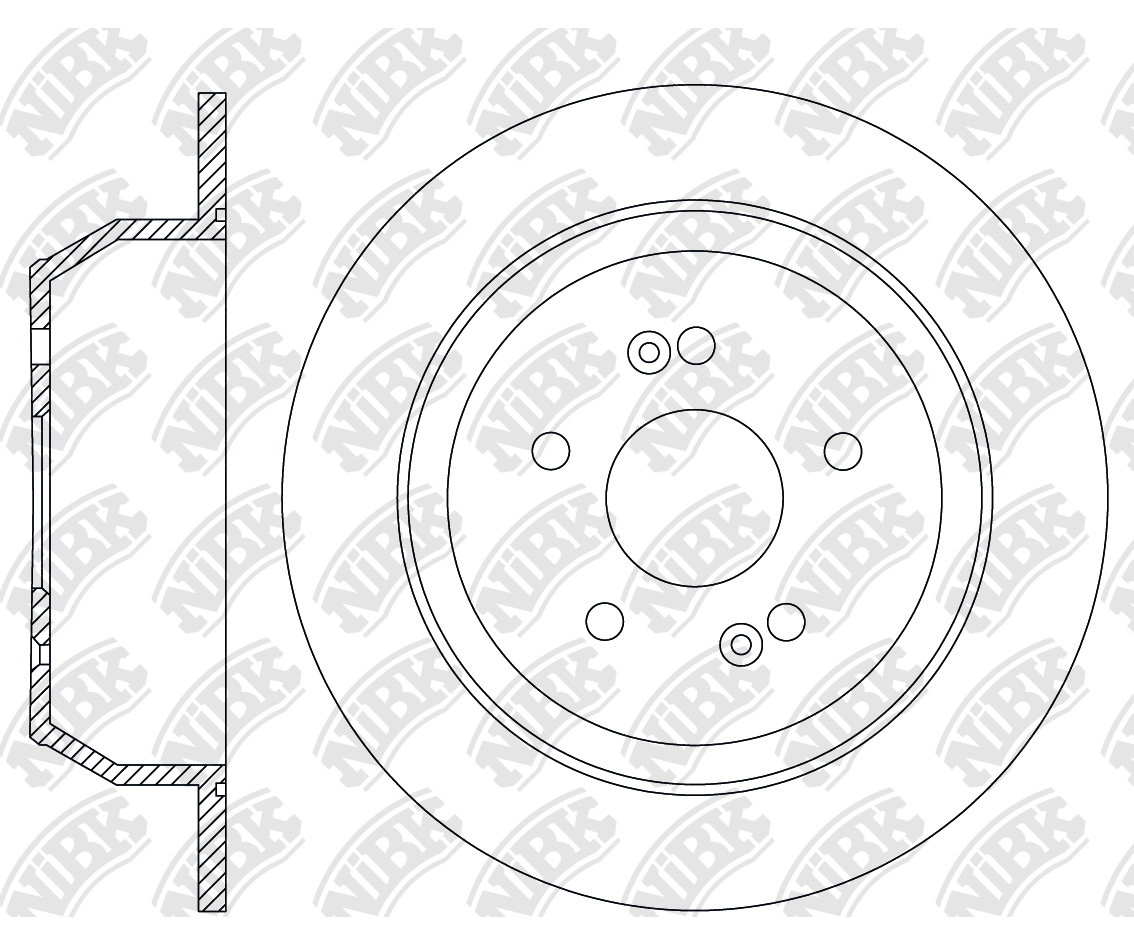

ROTOR DISC » RN2558

RN2558

Specification

Type
Solid
Outter Ø
288
Num. of holes
5
Hole Ø:
13.2
Disc Thickness (Max)
10
Disc Thickness (Min)
8
Height
67.5
Centering Diameter
62
Pitch Circle Ø
108
Front/Rear
Rear
Structure Material
G3000
Drum Ø:
185

Cross Reference

Chery
T15-3502075
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CHERY   »   Tiggo 4

10.19~ 1500 SQRE4G15B / SQRE4G15C T19 RN2573V PN0838 RN2558RN2574 PN0846 FN0810
08.19~ 2000 SQRD4G20 T19 RN2501V PN8002 RN2502RN2558 PN0846PN8005 FN0810

CHERY   »   Tiggo 7

04.16~11.20 1500 SQRE4T15 T15 RN2501V PN8002 RN2502RN2558 PN0846PN8005 FN0810
06.13~11.20 2000 SQRD4G20 T15 RN2501V PN8002 RN2558RN2502 PN8005PN0846 FN0810
