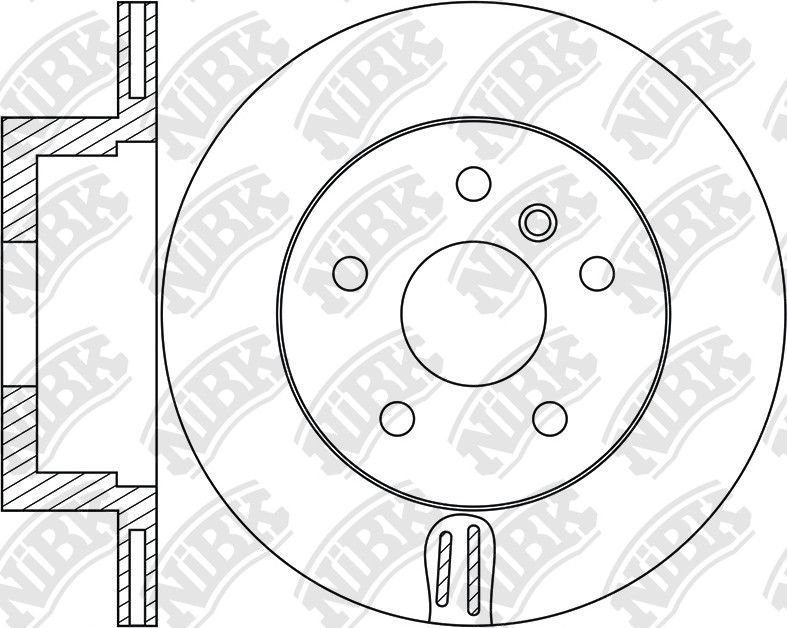

ROTOR DISC » RN1922V

Specification

Type
Vented
Outter Ø
324
Num. of holes
5
Disc Thickness (Max)
20
Height
80
Centering Diameter
75
Pitch Circle Ø
120
Drum Ø:
185
Front/Rear
Rear
Disc Thickness (Min)
18.4
Structure Material
G3000

Cross Reference

BENDIX
562355B
BMW
34 21 6 756 849
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.03~09.06 4400 N62B44 FB5 RN1154V PN0401 RN1922V PN0225 FN0589
09.03~09.06 4400 N62B44 FB52 RN1154V PN0401 RN1922V PN0225 FN0589
12.01~09.03 4600 M62B46(468S1) E53 PN0336 RN1922V PN0225 FN0589
04.04~09.06 4800 N62B48 E53 PN0336 RN1922V PN0225 FN0589

Exemption from liability: the catalog data is advisory and can be used for reference only
