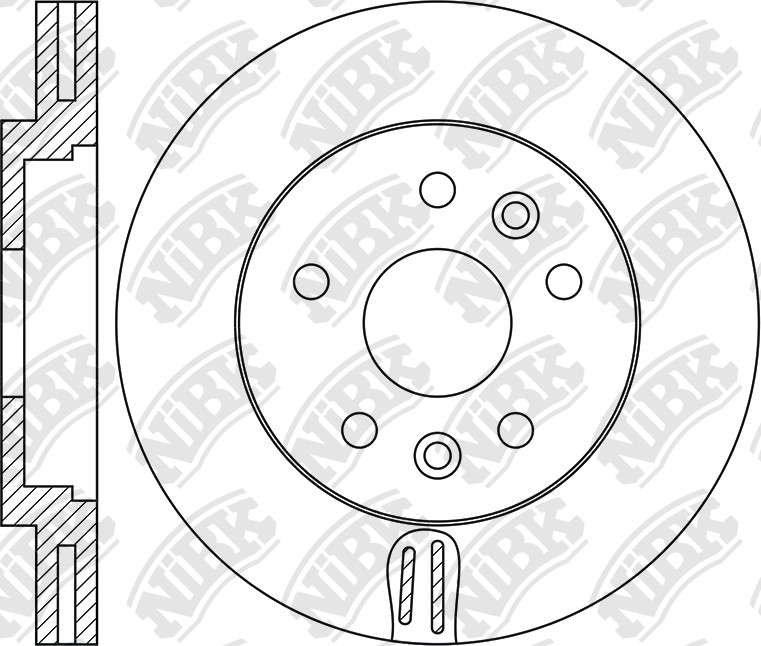

ROTOR DISC » RN1877V

Specification

Type
Vented
Outter Ø
296
Num. of holes
5
Disc Thickness (Max)
28
Height
44
Centering Diameter
68
Pitch Circle Ø
114.3

Cross Reference

FIAT
6000619994
GM
93866700
NISSAN
40206-00Q1C
OPEL
4 422 285
RENAULT
40 20 663 52R
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
06.16~ 1600 R9M 296 RN1877V PN0729 RN2413H PN0147
07.19~ 2000 M9R 296 RN1877V PN0729 RN2413H PN0147
03.20~05.22 1600 R9M VH16S RN1877V PN0729 RN2413H PN0147
03.20~05.22 2000 M9R VH20L RN1877V PN0729 RN2413H PN0147
03.20~05.22 2000 M9R VH20S RN1877V PN0729 RN2413H PN0147
09.16~ 1600 R9M X82 RN1877V PN0729 RN2413H PN0147
08.14~03.19 1600 R9M X82 RN1877V PN0729 RN2413H PN0147
06.14~ 1600 R9M 408 FGMD RN1877V PN0729 RN2413H PN0147
06.14~ 1600 R9M 450 FGMC RN1877V PN0729 RN2413H PN0147
06.14~06.19 1600 R9M 452 FGMC RN1877V PN0729 RN2413H PN0147
06.14~06.19 1600 R9M 452 JGMH RN1877V PN0729 RN2413H PN0147

Exemption from liability: the catalog data is advisory and can be used for reference only
