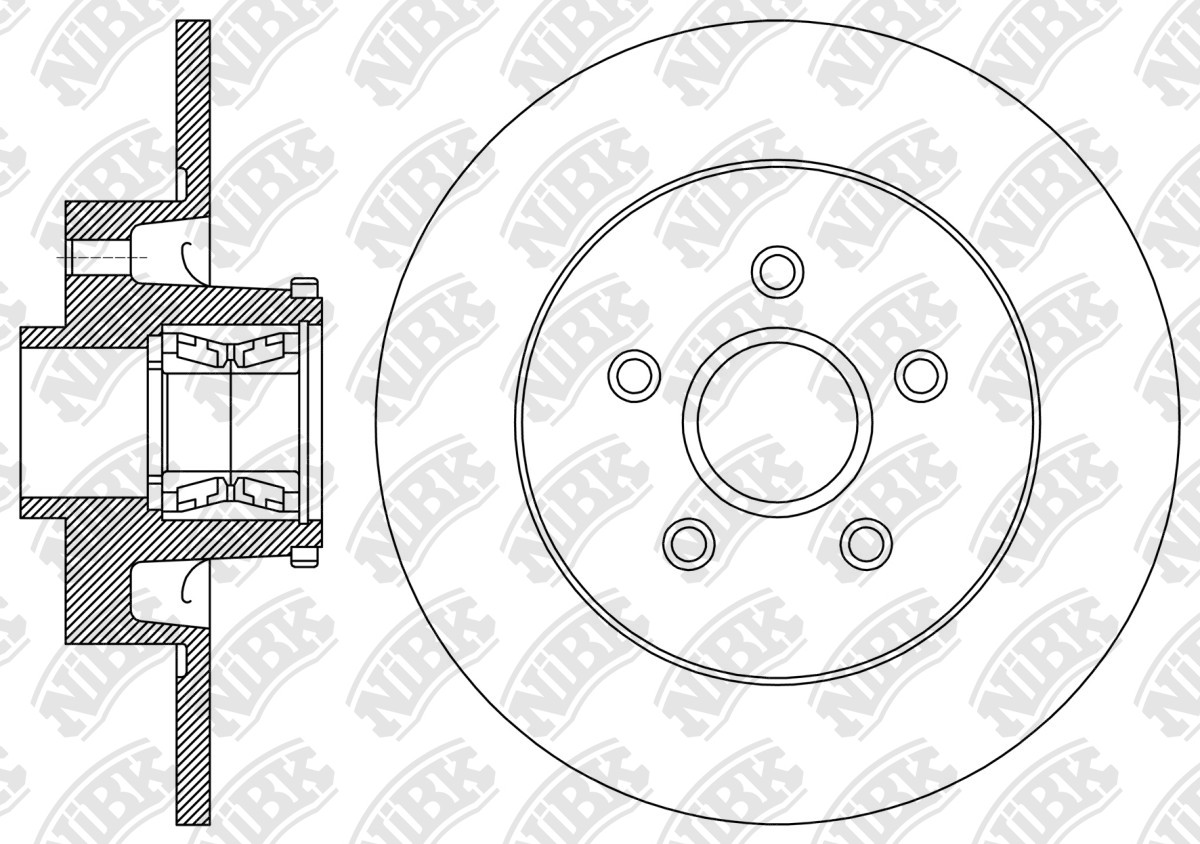

ROTOR DISC » RN2413H

RN2413H

Specification

Type
Solid
Outter Ø
280
Num. of holes
5
Hole Ø:
M14x1.5
Disc Thickness (Max)
12
Disc Thickness (Min)
10
Height
104.5
Centering Diameter
52.3/67.91
Pitch Circle Ø
114.3
Front/Rear
Rear
Structure Material
G3000
Notes
w/Wheel Bearing & ABS Sensor Ring

Cross Reference

FIAT
6000620071
GM
95516956
GM
95523187
NISSAN
43206-00Q0H
NISSAN
43206-00Q0M
OPEL
44 22 288
OPEL
95523187
RENAULT
43 20 073 43R
RENAULT
43 20 227 42R
RENAULT
432006028R
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

FIAT   »   Talento

06.16~ 1600 R9M 296 RN1877V PN0729 RN2413H PN0147
07.19~ 2000 M9R 296 RN1877V PN0729 RN2413H PN0147

MITSUBISHI   »   Express

03.20~05.22 1600 R9M VH16S RN1877V PN0729 RN2413H PN0147
03.20~05.22 2000 M9R VH20L RN1877V PN0729 RN2413H PN0147
03.20~05.22 2000 M9R VH20S RN1877V PN0729 RN2413H PN0147

NISSAN   »   NV300

09.16~ 1600 R9M X82 RN1877V PN0729 RN2413H PN0147

OPEL   »   Vivaro B

08.14~03.19 1600 R9M X82 RN1877V PN0729 RN2413H PN0147

RENAULT   »   Trafic III

06.14~ 1600 R9M 408 FGMD RN1877V PN0729 RN2413H PN0147
06.14~ 1600 R9M 450 FGMC RN1877V PN0729 RN2413H PN0147
06.14~06.19 1600 R9M 452 FGMC RN1877V PN0729 RN2413H PN0147
06.14~06.19 1600 R9M 452 JGMH RN1877V PN0729 RN2413H PN0147
