NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2454V

Product
Application

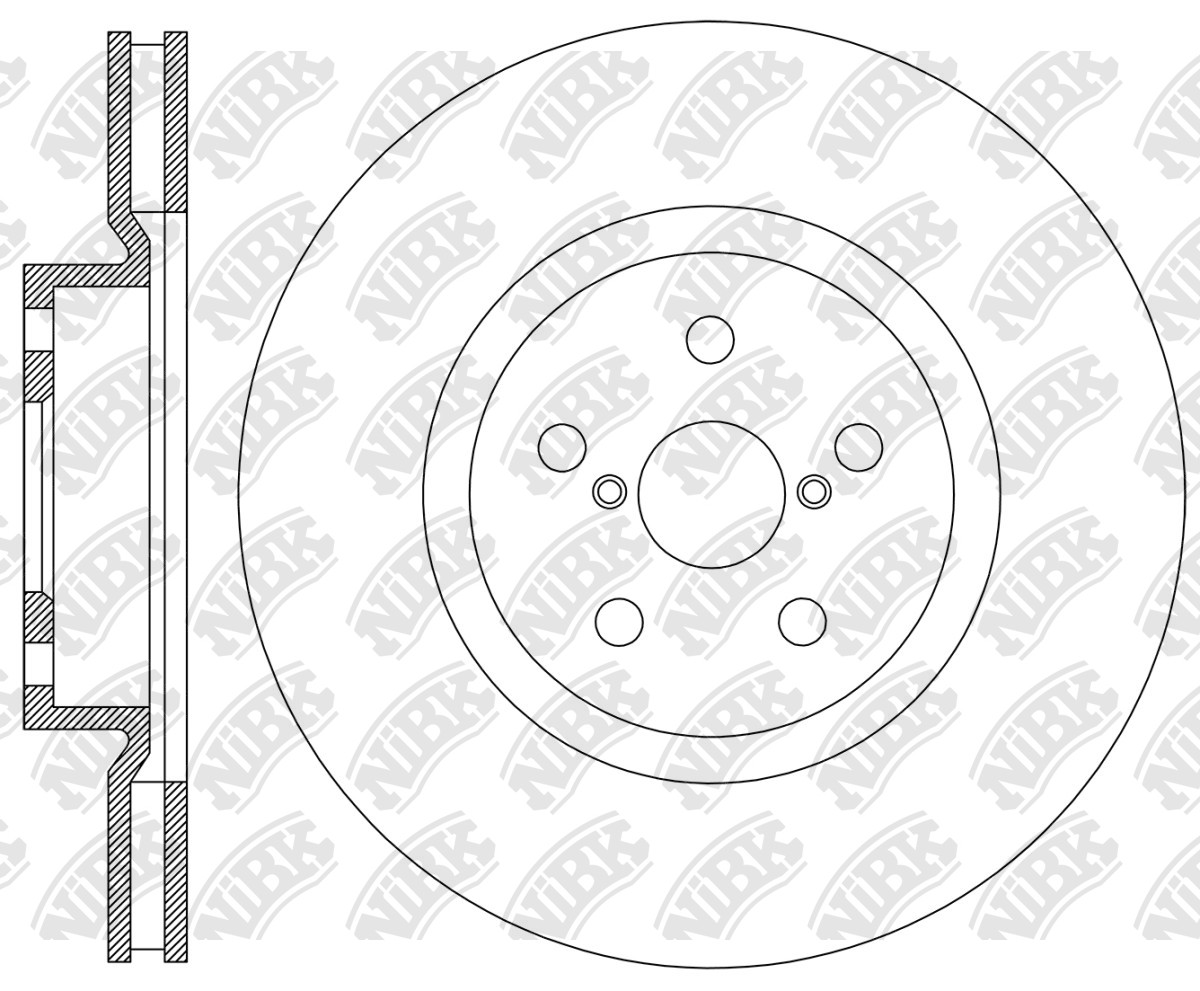

ROTOR DISC » RN2454V

Specification

Type

Vented

Outter Ø

277

Num. of holes

5

Hole Ø:

12.9

Disc Thickness (Max)

24

Disc Thickness (Min)

22

Height

48

Centering Diameter

58

Pitch Circle Ø

100

Drum Ø:

128

Front/Rear

Front

Structure Material

G3000

Cross Reference

SUBARU

26300-FL000

SUBARU

26300-FL02A

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

SUBARU » Impreza

12.16~	1600	FB16	GK2	RN2454V	PN7805	RN2235V	PN7804
09.16~	1600	FB16A	GK3K	RN2454V	PN7805	RN2235V	PN7804
08.16~	1600	FB16A	GT2 JPN	RN2454V	PN7805	RN2235V	PN7804
08.16~	1600	FB16A	GT3 JPN HB	RN2454V	PN7805	RN2235V	PN7804
09.16~	1600	FB16A	GT3K RHD	RN2454V	PN7805	RN2235V	PN7804
09.16~	1600	FB16A	GT3L LHD	RN2454V RN2166V	PN7805	RN2235V	PN7804
10.16~	2000	FB20	GT6 JPN	RN2454V	PN7805	RN2235V	PN7804
08.16~	2000	FB20C	GK7 RHD	RN2454V	PN7805	RN2235V	PN7804
03.16~10.19	2000	FB20C	GT7 JPN	RN2454V	PN7805	RN2235V	PN7804
03.16~10.19	2000	FB20C	GT7 RHD	RN2454V	PN7805	RN2235V	PN7804
