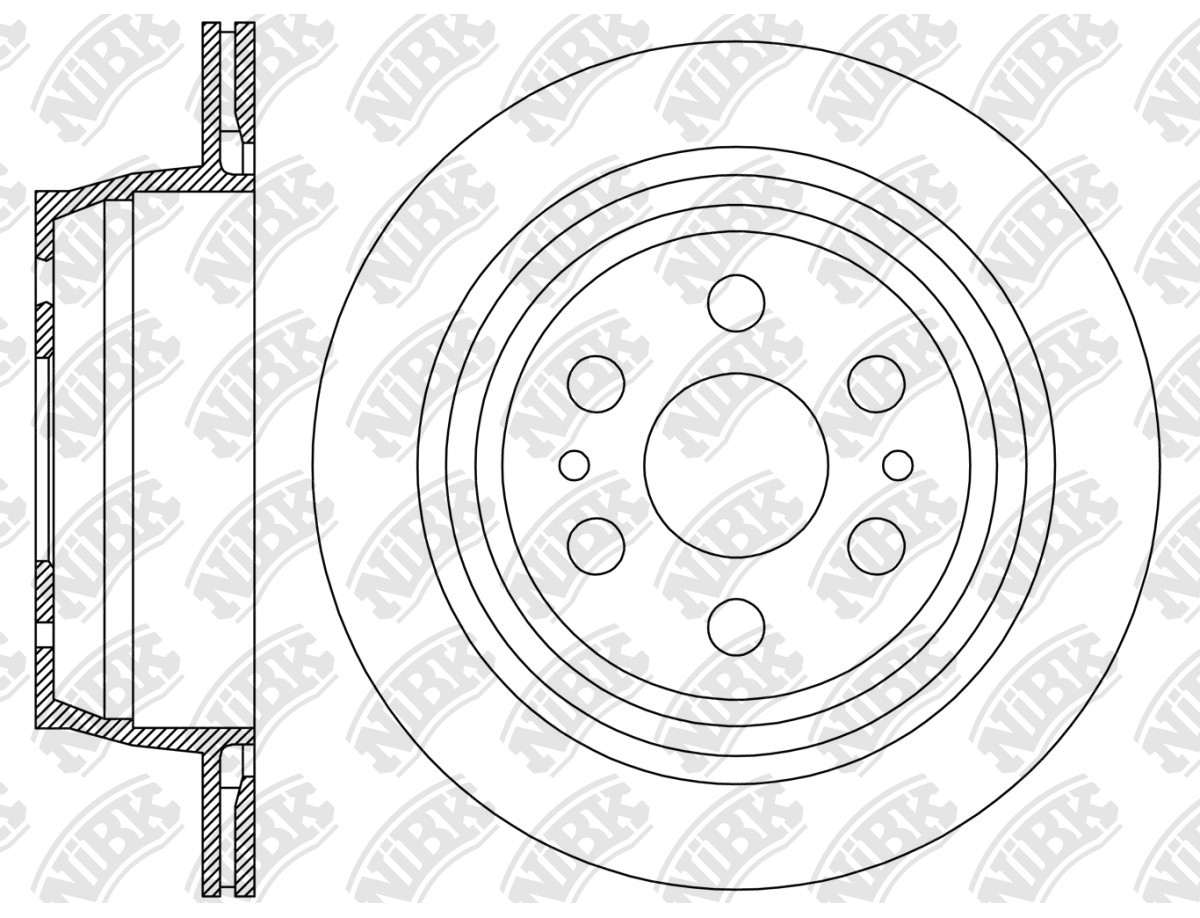

ROTOR DISC » RN1757V
Specification
Type
Vented
Front/Rear
Rear
Num. of holes
6
Pitch Circle Ø
139.7
Outter Ø
345
Disc Thickness (Max)
20
Height
85.3
Centering Diameter
78.6
Drum Ø:
210
Disc Thickness (Min)
18.4
Structure Material
G3000
Cross Reference
CADILLAC (GM)
15792634
CHEVROLET
22968231
GM
15792634
GM
22775300
GM
22968231
GM
23195438
GM
25832103
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.14~08.20 | 6200 | L86 | TK15706 | RN1678V | PN0400 | RN1757V | PN0657 | FN0741 |
| 10.06~08.08 | 6200 | L92 | TK10706 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 10.09~08.14 | 6200 | L94 | TC10706 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 10.09~08.14 | 6200 | L9H | TK10706 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 09.14~08.20 | 6200 | L86 | TK15906 | RN1678V | PN0400 | RN1757V | PN0657 | FN0741 |
| 10.06~08.08 | 6200 | L92 | TK10906 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 10.06~08.08 | 6200 | L92 | TK10936 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 10.06~08.14 | 6200 | L94 | 57C | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 10.15~09.19 | 5300 | L83 | CK15543 | RN1678V | PN0400 | RN1757V | PN0657 | FN0741 |
| 10.15~09.19 | 6200 | L86 | GMTK2 | RN1678V | PN0400 | RN1757V | PN0657 | FN0741 |
| 01.14~03.20 | 5300 | L83 | CK15906 | RN1678V | PN0400 | RN1757V | PN0657 | FN0741 |
| 07.06~06.14 | 5300 | LC9 | CK10906 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 07.06~06.14 | 5300 | LMG | C10906 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 07.14~06.20 | 5300 | L83 | C#15706 GL | RN1678V | PN0400 | RN1757V | PN0657 | FN0741 |
| 07.14~06.20 | 5300 | L83 | CK15706 US | RN1678V | PN0400 | RN1757V | PN0657 | FN0741 |
| 12.06~10.13 | 5300 | LMG | CK10706 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 01.07~04.14 | 6000 | LFA | CK10706 | RN1678V | PN0400 | RN1757V | PN51013 | FN0705 |
| 10.15~12.19 | 6200 | K2UXX | RN1678V | PN0400 | RN1757V | PN0657 | FN0741 |
