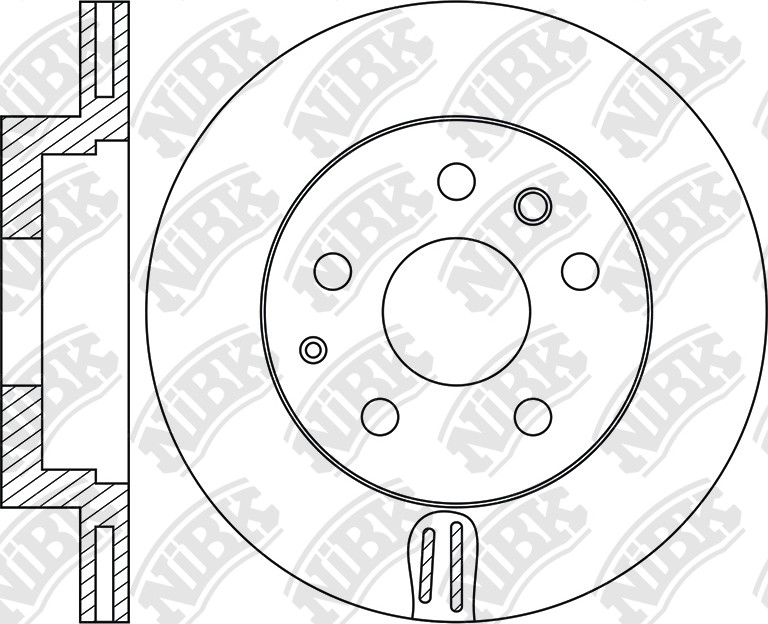

ROTOR DISC » RN1738V

RN1738V

Specification

Type
Vented
Front/Rear
Rear
Outter Ø
358
Num. of holes
5
Disc Thickness (Max)
28
Height
73.5
Centering Diameter
85
Pitch Circle Ø
130
Drum Ø:
210
Disc Thickness (Min)
26
Structure Material
G3000

Cross Reference

PORSCHE
955 352 401 50
PORSCHE
955 352 401 51
PORSCHE
955 352 403 00
PORSCHE
958 352 401 50
VAG
7L8 615 601 A
VAG
7L8 615 601 D
VAG
7L8 615 601 E
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

AUDI   »   Q7

05.10~08.15 3000 CJTB 4LB0XA RN1745VSETRN1745VLRN1745VR PN0346W RN1738V PN0530 FN0638
11.05~05.10 4200 BAR 4LB_EL RN1745VRRN1745VSETRN1745VL PN0346W RN1738V PN0347W FN0638
03.07~06.09 4200 BTR 4LB0GL RN1745VLRN1745VRRN1745VSET PN0346W RN1738V PN0347W FN0638
06.10~08.15 4200 CCFC 4LB0VA RN1745VSETRN1745VLRN1745VR PN0346W RN1738V PN0530 FN0638

PORSCHE   »   Cayenne GTS

05.14~05.18 3600 CXZA 958 PN0529 RN1738V PN0565 FN0733

PORSCHE   »   Cayenne TURBO

09.07~05.10 4800 M 48.51 955 PN0552 RN1738V PN0530 FN0638

PORSCHE   »   Cayenne TURBO S

05.02~05.06 4500 M 48.50 955 PN0552 RN1738V PN0347W FN0638
09.07~05.10 4800 M 48.51 955 PN0552 RN1738V PN0530 FN0638
05.10~05.14 4800 M 48.52 958 PN0529 RN1738V PN0565 FN0733

VOLKSWAGEN   »   Touareg

11.07~04.10 3000 CASG RN1738V
11.04~05.10 5000 BLE 7L____ RN1738V
08.07~05.10 5000 CBWA 7L64A3 RN1832V PN0529 RN1738V PN0530 FN0638
