NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2409V

Product
Application

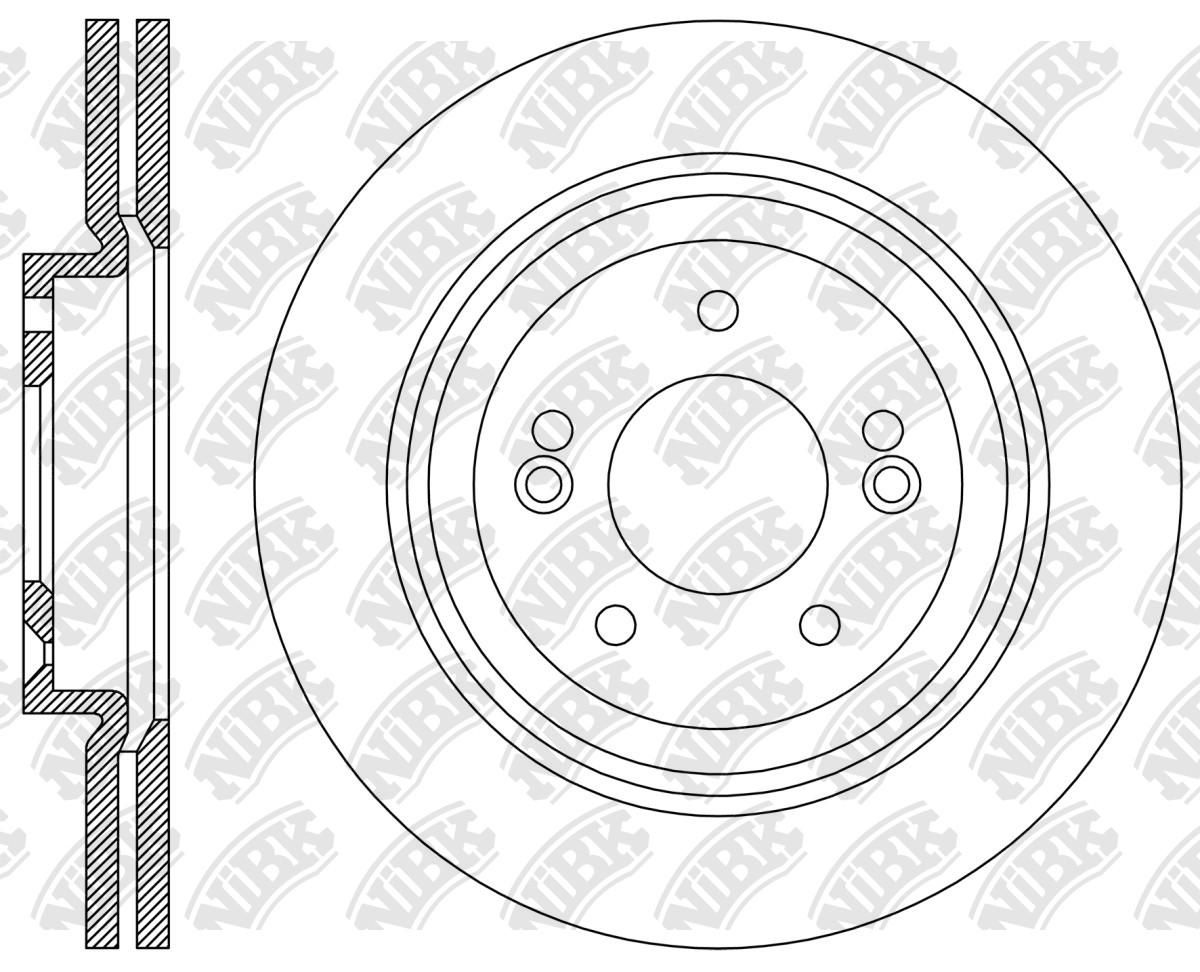

ROTOR DISC » RN2409V

Specification

Type

Vented

Outter Ø

320

Num. of holes

5

Hole Ø:

12.5

Disc Thickness (Max)

29

Disc Thickness (Min)

27

Height

49.2

Centering Diameter

69

Pitch Circle Ø

114.3

Drum Ø:

143

Front/Rear

Front

Structure Material

G3000

Cross Reference

HYUNDAI / KIA

51712-A9000

HYUNDAI / KIA

51712-A9200

KIA

51712-A9000

KIA

51712-A9200

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

KIA » Carnival / Sedona

04.14~01.21	2200	D4HB	WAGON LONG - 11P	RN2409V	PN0711		PN0457	FN0756
04.14~01.21	2200	D4HB	WAGON LONG - 7P	RN2409V	PN0711 PN0588		PN0457	FN0756
04.14~03.18	2200	D4HB	WAGON LONG - 8P RHD	RN2409V	PN0711		PN0457	FN0756
03.18~08.20	2200	D4HB	WAGON LONG - 8P RHD	RN2409V	PN0711		PN0457	FN0756
04.14~03.18	2200	D4HB	WAGON LONG - 9P	RN2409V	PN0711		PN0457	FN0756
04.14~01.21	3300	G6DF	WAGON LONG - 11P RHD	RN2409V	PN0711		PN0457	FN0756
09.14~03.18	3300	G6DF	WAGON LONG - 8P	RN2409V	PN0711		PN0457	FN0756
04.14~01.21	3300	G6DH	WAGON LONG - 7P	RN2409V	PN0711		PN0457	FN0756

KIA » Carnival / Sedona 18

02.18~07.20

3300

G6DM

WAGON LONG - 8P

RN2409V

PN0711

PN0457

FN0756
