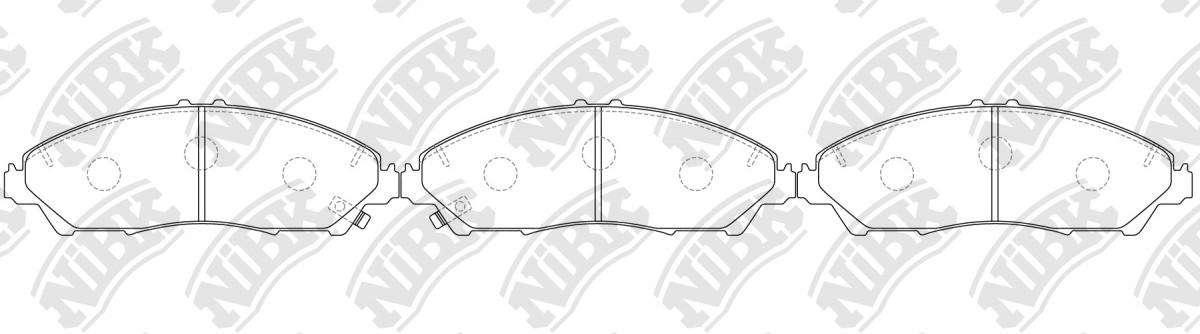

BRAKE PADS » PN0645

Specification

Length-1
169.9
Width-1
58
Thickness-1
16.9
Pcs In Set
4

Cross Reference

FMSI
D1723-8396
HONDA
45022-TZ5-A00
HONDA
45022-TZ5-A01
HONDA
45022-TZ5-A10
HONDA
45022-TZ5-R01
HONDA
45022-TZ5-R02
WVA
25941
WVA
25942
WVA
25943
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
04.17~12.20 3000 JNA2 YD7 RN2632V PN0645 PN0648
06.13~12.20 3500 J35Y4 YD3 RN2219VRN1936V PN0645 RN1937 PN0648PN0646 FN8005
05.13~06.16 3500 J35Y4 YD4 RN2632VRN1936V PN0645 RN1937 PN0646PN0648 FN8005
06.16~01.21 3500 J35Y4 YD4 RN2219VRN2632V PN0645 PN0648 FN8005
08.16~08.20 3000 J30A9 YF6 RN2632V PN0645 RN2351 PN0646 FN8005
06.15~08.22 3500 J35Y6 YF5 RN2219V PN0645 RN2351 PN0646 FN8005
06.15~08.22 3500 J35Y6 YF6 RN2219V PN0645 RN2351 PN0646 FN8005
06.15~ 3500 J35Y6 YK2 RN2219V PN0645 RN2351 PN0646 FN8005
06.15~ 3500 J35Y6 YK3 RN2219V PN0645 RN2351 PN0646 FN8005

Exemption from liability: the catalog data is advisory and can be used for reference only
