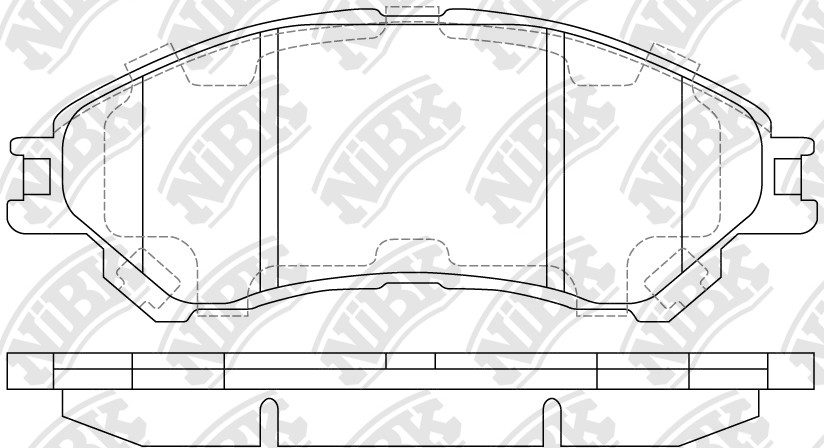

BRAKE PADS » PN9809
Specification
Length-1
141.8
Pcs In Set
4
Width-1
55
Thickness-1
16
Brake System
Akebono
Cross Reference
AKEBONO
AN-809WK
BENDIX AUS
DB2430
BENDIX AUS
DB2490
FMSI
D2096-9331
KASHIYAMA
D9078
MITSUBISHI
4605B949
NISSAN
41060-6A00H
SUZUKI
55200-D66Y0
SUZUKI
55810-61M00
SUZUKI
55810-61M00-000
SUZUKI
55810-61M01
SUZUKI
55810-61M02
SUZUKI
55810-61M50
SUZUKI
55810-61M51
SUZUKI
55810-61M52
SUZUKI
55810-61M53
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.17~ | 1500 | 4A91 | NC1W | RN2346V | PN9809 | DN1114 | FN1264 | |
| 11.21~ | 1500 | 4A91 | NC2W | RN2346V | PN9809 | DN1114 | FN1264 |
| 07.17~ | 1400 | K14C | YEA1S | PN9809 | PN9808 | |||
| 10.15~ | 1600 | M16A | YD21S | PN9809 | PN9808 | |||
| 10.15~ | 1600 | M16A | YE21S | PN9809 | PN9808 |
| 08.16~ | 1000 | K10C | AKK310# | RN1692V | PN9809 | RN1693 | PN9808 | |
| 08.16~ | 1400 | K14C | AKK414# | RN1692V | PN9809 | RN1693 | PN9808 | |
| 08.13~ | 1600 | D16AA | AKK416D# | PN9809 | PN9808 | |||
| 12.13~ | 1600 | M16A | JYB22S LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 01.16~ | 1600 | M16A | YA22S LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 12.13~ | 1600 | M16A | YA22S RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 12.13~01.16 | 1600 | M16A | YB22S RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 01.16~ | 1600 | M16A | YB22S RHD | RN1692V | PN9809 | RN1693 | PN9808 |
| 02.18~ | 1000 | K10C-T | APK310 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1400 | K14C | APK414 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.18~ | 1400 | K14C | APK414-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1400 | K14C | APK414-3 RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1400 | K14D | APK414-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1600 | D16AA | APK416D | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1600 | M16A | APK416 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.18~ | 1600 | M16A | APK416-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1600 | M16A | APK416-3 RHD | RN1692V | PN9809 | RN1693 | PN9808 |
