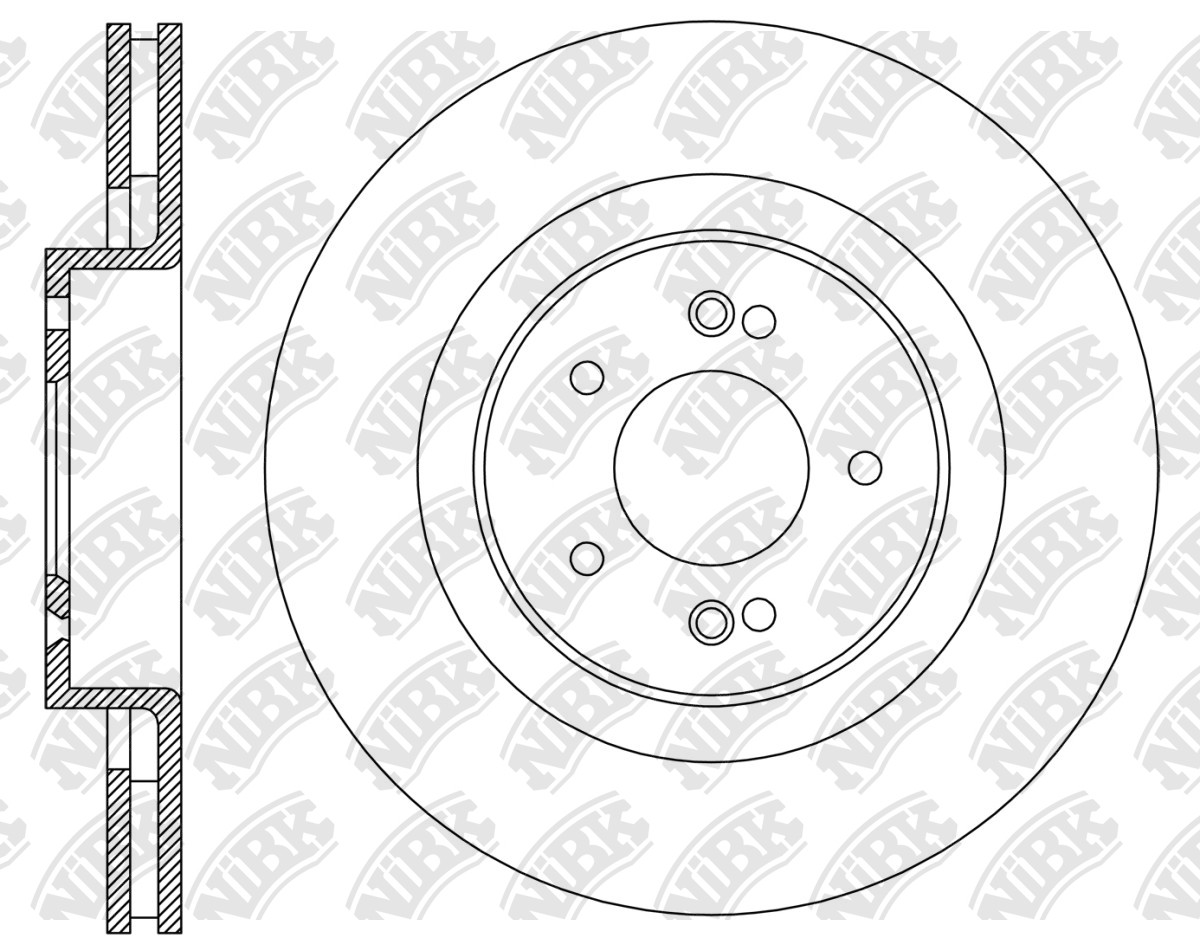

ROTOR DISC » RN2326V

RN2326V

Specification

Type
Vented
Outter Ø
305.5
Num. of holes
5
Hole Ø:
13.1
Disc Thickness (Max)
25
Disc Thickness (Min)
23
Height
45.2
Centering Diameter
62
Pitch Circle Ø
108
Drum Ø:
142
Front/Rear
Front
Structure Material
G3000

Cross Reference

Chery
204000453AA
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CHERY   »   Tiggo 7 Plus

09.21~ 1500 SQRE4T15C T1E RN2326V PN0377 RN2540 PN6041

CHERY   »   Tiggo 7 Pro

03.20~ 1500 SQRE4T15C T1E RN2326V PN0377 RN2540 PN6041

CHERY   »   Tiggo 7 Pro Max

09.21~ 1500 SQRE4T15C T1EFL1 RN2326V PN0377 RN2540 PN6041
08.23~ 1600 SQRF4J16B T1EFL1 RN2326V PN0377 RN2540 PN6041

CHERY   »   Tiggo 8

01.22~ 1500 SQRE4T15B T18 RN2326VRN2501V PN8002 RN2502 PN8005
12.20~03.22 1500 SQRE4T15C T18 RN2501VRN2326V PN8002 RN2502 PN8005
02.20~02.22 2000 SQRD4T20 T18 RN2326VRN2501V PN8002 RN2502 PN8005

CHERY   »   Tiggo 8 Pro

03.21~ 1600 SQRF4J16 T1A RN2501VRN2326V PN0377PN8002 RN2502 PN8005

EXEED (CHERY)   »   LX

07.20~ 1500 SQRE4T15C T1C RN2326V PN0377 RN2540 PN6041
12.22~ 1600 SQRF4J16A T1C RN2326V PN0377 PN6041

OMODA (CHERY)   »   C5

07.22~ 1600 SQRF4J16 T19C RN2326V PN0377 PN6041
