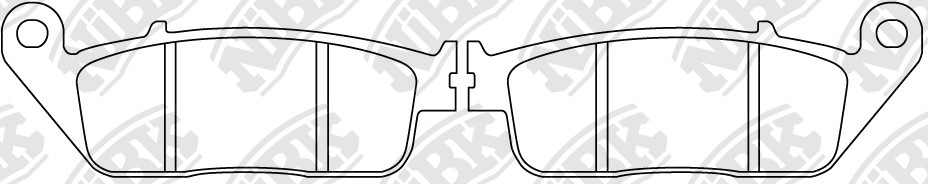

MOTORCYCLE BRAKE PADS » PM029S
Specification
Length-1
102
Width-1
39
Thick-1
9.4
TYP
S
Variation
Cross Reference
HONDA
06435 MZ0 006
HONDA
06435 MZ0 760
HONDA
06455 MAA 405
HONDA
06455 MAA 415
HONDA
06455 MAB 405
HONDA
06455 MAH 405
HONDA
06455 MAL G01
HONDA
06455 MAL G02
HONDA
06455 MAW 621
HONDA
06455 MBK 751
HONDA
06455 MBK 752
HONDA
06455 MCK A01
HONDA
06455 MCK A02
HONDA
06455 MR4 405
HONDA
06455 MR4 415
HONDA
06455 MS9 405
HONDA
06455 MV4 405
HONDA
06455 MW3 405
HONDA
06455 MW3 415
HONDA
06455 MZ0 760
HONDA
43105 ML7 923
HONDA
43105 MY7 405
HONDA
43106 ML7 923
HONDA
45105 ML7 405
HONDA
45105 ML7 922
HONDA
45105 MR4 901
HONDA
45105 MW3 671
HONDA
45106 ML7 922
KAWASAKI
43082 0079
SUZUKI
59300 21820
SUZUKI
59300 21840
SUZUKI
59300 21850
SUZUKI-MOTO
5910126810
SUZUKI-MOTO
5910126820
TRIUMPH
T2020077
TRIUMPH
T2020537
YAMAHA
1S6 W0045 00
YAMAHA
3D7 W0045 10
YAMAHA
5YU W0046 00
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.06~01.06 | 250 | PM029 |
| 01.10~ | 250 | PM029 |
| 01.00~01.09 | 125 | PM029 |
| 01.01~01.04 | 125 | PM029 |
| 01.94~01.96 | 500 | PM029 |
| 01.04~01.04 | 500 | PM029 |
| 01.89~01.97 | 800 | PM029 |
| 01.09~ | 400 | PM029 |
| 01.94~01.98 | 750 | PM029 |
| 01.94~01.96 | 1100 | PM029 | ||||||
| 01.95~ | 1100 | PM029 | PM084 | |||||
| 01.98~ | 1100 | PM029 | PM084 | |||||
| 01.00~ | 1100 | PM029 | PM084 | |||||
| 01.04~01.05 | 1100 | PM029 | PM084 |
| 01.97~01.02 | 750 | PM029 | ||||||
| 01.01~01.04 | 750 | PM029 | ||||||
| 01.04~01.09 | 750 | PM029 | ||||||
| 01.07~01.09 | 750 | PM029 | ||||||
| 01.10~ | 750 | PM029PM205 | PM135 | |||||
| 01.11~ | 750 | PM029 |
| 01.94~01.96 | 600 | PM029 |
| 01.12~ | 200 | SK40A | PM029 |
| 01.05~01.05 | 500 | PM029 | PM091 | |||||
| 01.06~01.08 | 500 | PM029 | PM091 | |||||
| 01.09~01.12 | 500 | PM029 | PM091 | |||||
| 01.13~ | 500 | PM029 | PM091 |
| 01.08~ | 400 | PM029 |
| 01.08~01.12 | 500 | PM029 |
