DRUM BRAKE » DN1458

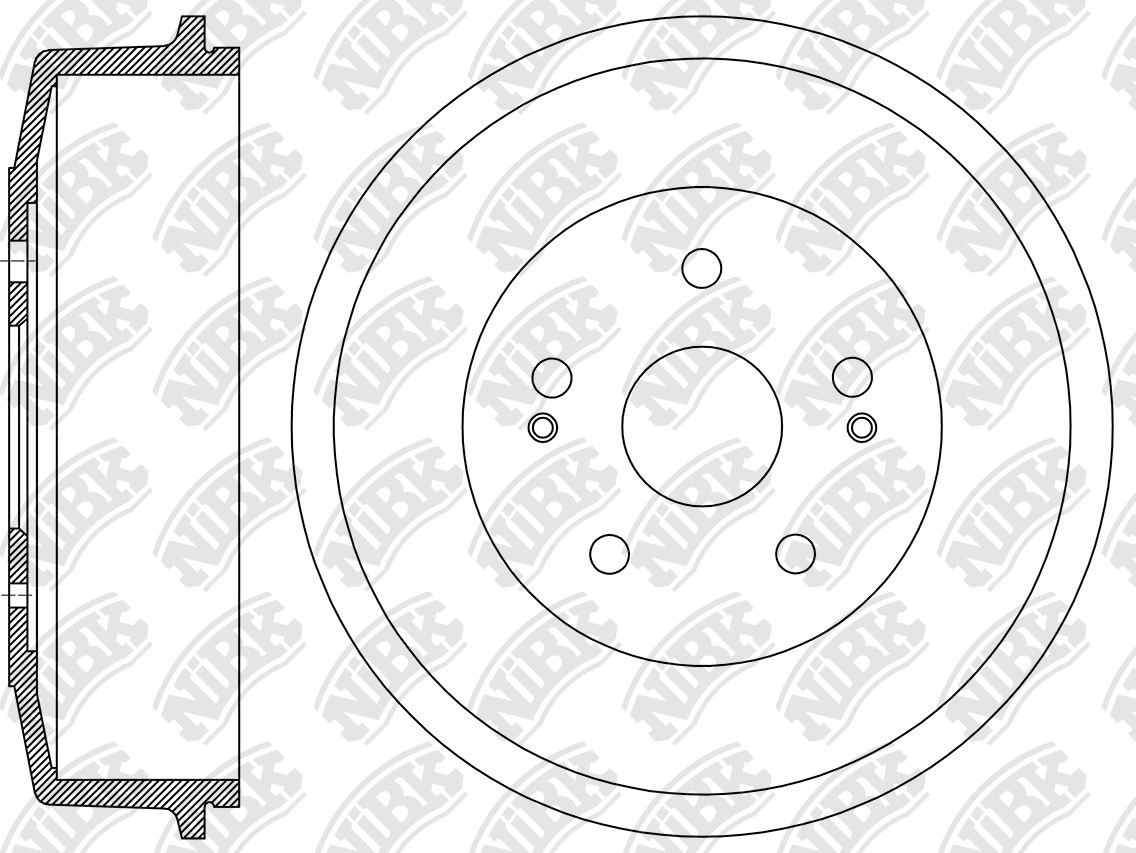

DN1458

Specification

Outter Ø
296
Num. of holes
5
Centering Diameter
75
Height
81
Pitch Circle Ø
120
Drum Ø
254
Structure Material
G3000
Hole Ø
14.3

Cross Reference

HYUNDAI
52761-44010
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   H100

03.93~09.03 2400 G4CS FD RN1095V PN0112 DN1480DN1515DN1458 FN1879FN0595
07.93~09.03 2500 4D56/T2 WGN LONG 15 LHD RN1095V PN0112 DN1458 FN1879
