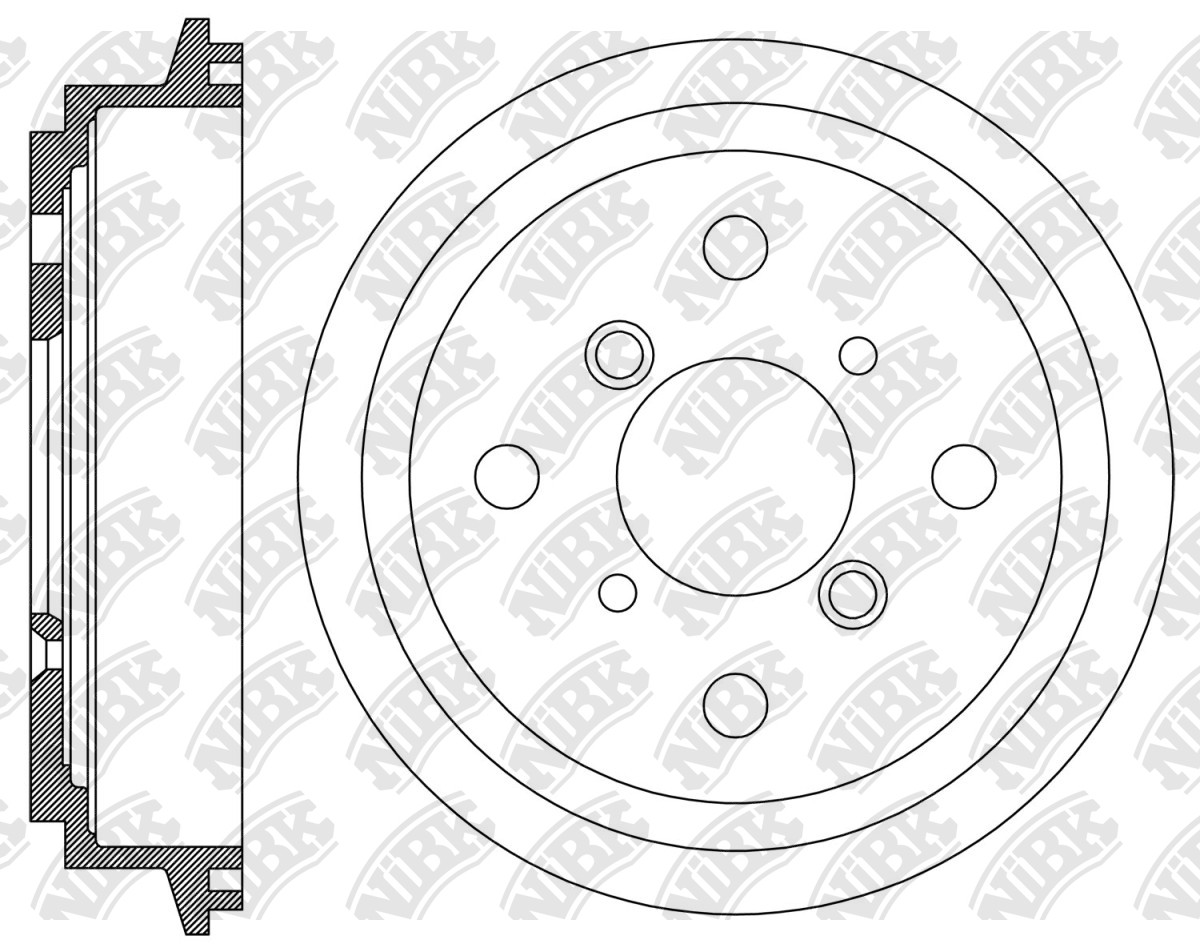

DRUM BRAKE » DN1362

Specification

Outter Ø
222
Num. of holes
4
Hole Ø
12.7
Centering Diameter
64
Height
51.3
Pitch Circle Ø
114.3
Drum Ø
180
Structure Material
G3000

Cross Reference

GM
18028638
GM
30013273
SUZUKI
43511-50G50
SUZUKI
43511-50G50-000
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.89~09.01 1000 LP2 SF310 PN9169 DN1413DN1415DN1362 FN9933

Exemption from liability: the catalog data is advisory and can be used for reference only
