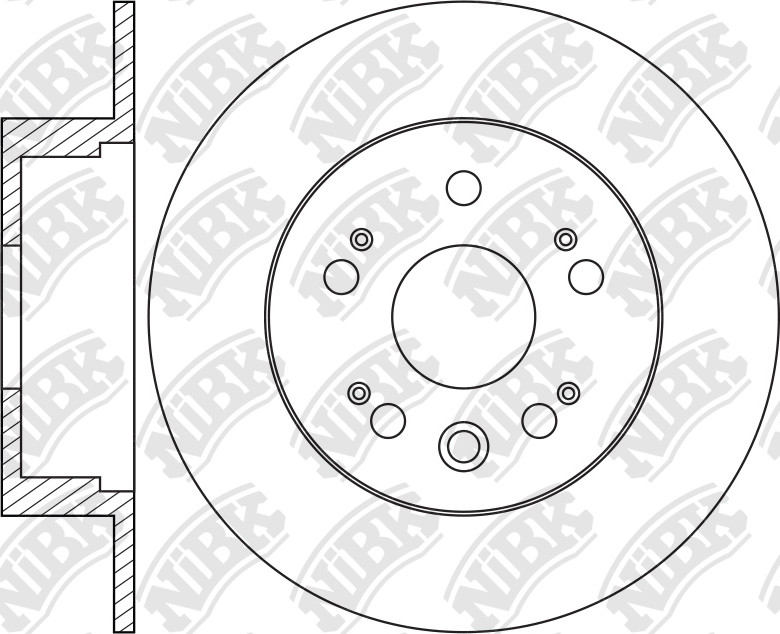

ROTOR DISC » RN1460
Specification
Disc Thickness (Max)
9
Num. of holes
5
Height
59.2
Centering Diameter
64
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
282
Type
Solid
Drum Ø:
170
Structure Material
G3000
Disc Thickness (Min)
8
Cross Reference
HONDA
42510-S9A-000
HONDA
42510-S9A-N00
HONDA
42510-SCA-E00
HONDA
42510-SMC-N00
HONDA
42510-SMC-N01
HONDA
42510-SMC-N02
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.99~07.03 | 2300 | F23A | TA1 | RN1104V | PN8254 | RN1460 | PN8397 | FN0570 |
| 09.99~07.03 | 3000 | J30A | TA3 | RN1104V | PN8254 | RN1460 | PN8397 | FN0570 |
| 02.00~07.03 | 3000 | J30A | TA4 | RN1901V | PN8465 | RN1460 | PN8397 | FN0570 |
| 09.01~08.04 | 2000 | K20A | RD4 JPN | RN2054V | PN8484 | RN1460 | PN8807 | FN0570 |
| 08.01~09.04 | 2000 | K20A | RD4 LHD PH | RN1218V | PN8485 | RN1460 | PN8397 | FN0570 |
| 09.01~08.04 | 2000 | K20A | RD5 JPN | RN1177VRN1218VRN2054V | PN8484PN8485 | RN1460 | PN8807 | FN0570 |
| 11.01~01.05 | 2000 | K20A | RD5 RHD | RN2054VRN1177V | PN8485PN8484 | RN1460 | PN8397PN8807 | FN0570FN8003 |
| 11.04~01.05 | 2000 | K20A | RD5 RHD | RN2054VRN1177V | PN8484PN8485 | RN1460RN1259 | PN8397PN8807 | FN0570FN8003 |
| 01.04~01.05 | 2000 | K20A4 | RD8 | RN1218VRN1177V | PN8485 | RN1259RN1460 | PN8807PN8397 | FN8003FN0570 |
| 09.01~01.05 | 2400 | K24A1 | RD6 | RN1218V | PN8485 | RN1460 | PN8397 | FN0570 |
| 09.01~09.04 | 2400 | K24A1 | RD7 | RN1218V | PN8485 | RN1460 | PN8397 | FN0570 |
| 02.07~08.10 | 1800 | R18A | RT1 | RN1540VRN1322V | PN8465 | RN1460 | PN8506 | FN0570 |
| 02.07~08.10 | 1800 | R18A | RT2 | RN1322V | PN8465 | RN1460 | PN8506 | FN0570 |
| 02.07~08.10 | 2000 | R20A | RT3 | RN1322VRN1218V | PN8465 | RN1460 | PN8506 | FN0570 |
| 02.07~08.10 | 2000 | R20A | RT4 | RN1322V | PN8465 | RN1460 | PN8506 | FN0570 |
| 05.15~07.20 | 1500 | L15B | FR5 JPN | RN1218V | PN8485 | RN1460 | PN8807 | FN0570 |
| 02.15~07.20 | 1500 | L15B | FR5 RHD | RN1218V | PN8485 | RN1460 | PN8807 | FN0570 |
| 02.15~07.20 | 1500 | LEB-H1 | FR4 | RN1218V | PN8485 | RN1460 | PN8807 | FN0570 |
| 05.15~07.20 | 1800 | R18A | FR5 | RN1218V | PN8485 | RN1460 | PN8807 | FN0570 |
| 07.06~06.14 | 1800 | R18A | RN6 JPN | RN1218V | PN8465 | DN1379RN1460 | PN8506FN5524 | FN0570 |
| 07.06~05.14 | 1800 | R18A | RN7 | RN1218V | PN8465 | RN1460 | PN8506 | FN0570 |
| 12.05~01.15 | 1800 | R18A# | RN6 RHD | RN1218V | PN8465 | RN1460 | FN5524PN8506 | FN0570 |
| 07.06~05.14 | 2000 | R20A | RN8 | RN1218V | PN8465 | RN1460 | PN8506 | FN0570 |
| 07.06~05.14 | 2000 | R20A | RN9 | RN1218V | PN8465 | RN1460 | PN8506 | FN0570 |
