NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1342V

Product
Application

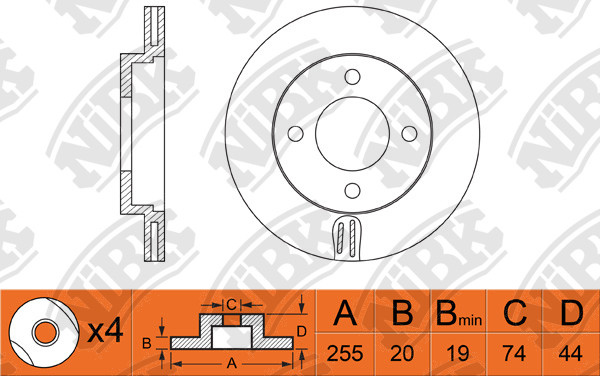

ROTOR DISC » RN1342V

Specification

Type

Vented

Disc Thickness (Max)

20

Num. of holes

4

Height

44

Centering Diameter

74

Front/Rear

Front

Pitch Circle Ø

94

Outter Ø

255

Disc Thickness (Min)

19

Drum Ø:

76

Structure Material

G3000

Cross Reference

BENDIX

561438B

TOYOTA

43512-28030

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

TOYOTA » Lite/Townace

11.82~08.84	2000	2C	CR21G	RN1342V RN1336V RN1345V RN1533V	PN1328 PN1404		FN2232 FN2220 FN2252
08.85~08.85	2000	2C-T	CR21G	RN1533V RN1342V RN1336V RN1345V	PN1328 PN1404	DN1243	FN2232 FN2220

TOYOTA » Masterace

05.83~08.85

2000

3Y-EU

YR21G

RN1345V RN1342V

PN1328

FN2220

TOYOTA » Model F

11.82~01.90	2000	3Y	YR21	RN1342V	PN1328
08.88~01.90	2200	4Y-E	YR22	RN1342V	PN1328
08.88~01.90	2200	4Y-E	YR31	RN1342V	PN1328
08.88~01.90	2200	4Y-EC	YR22	RN1342V	PN1328
08.88~01.90	2200	4Y-EC	YR31	RN1342V	PN1328
