ROTOR DISC » RN1089V

RN1089V

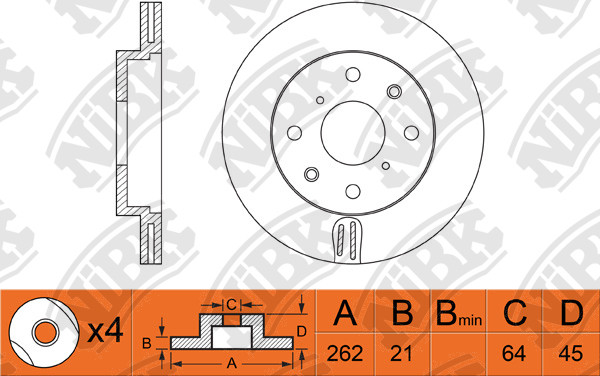

Specification

Type
Vented
Disc Thickness (Max)
21
Num. of holes
4
Height
44.6
Centering Diameter
64
Front/Rear
Front
Outter Ø
262
Pitch Circle Ø
100
Drum Ø:
141
Disc Thickness (Min)
19.4
Structure Material
G3000

Cross Reference

BENDIX
561630B
HONDA
45251-S06-000
HONDA
45251-S5D-A10
HONDA
45251-S5H-T10
HONDA
45251-S6D-E10
HONDA
45251-SCC-000
HONDA
45251-SCC-900
HONDA
45251-SCC-901
HONDA
45251-SK7-000
HONDA
45251-SK7-A00
HONDA
45251-SK7-A10
HONDA
45251-SK7-J00
HONDA
45251-SR0-A00
HONDA
45251-SR0-A10
HONDA
45251-ST3-E10
HONDA
45251-SZY-000
HONDA
45251-T5C-000
HONDA
45251-T5G-H00
HONDA
45251-T9A-T00
HONDA
45251-T9P-J00
HONDA
45251-TF3-E00
HONDA
45251TRDT00
LOTUS
GBD90840
OEM
45251TG5H00
OEM
GDB90840
ROVER
GBD90840
ROVER
SDB000990
ROVER
SDB100600
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

ACURA   »   Integra

01.89~12.93 1800 B18A1 DA9 RN1089V PN8162 RN1047 PN8206

HONDA   »   Airwave

03.05~08.10 1500 L15A GJ1 RN1089V PN8264 FN5524
03.05~08.10 1500 L15A GJ2 RN1089V PN8264 FN5524

HONDA   »   Ballade

09.11~01.14 1500 L15A7 GM2 RN1089V PN8868 RN1642 PN8206

HONDA   »   City

09.08~09.13 1300 L13Z1 GM1 RN1089V PN8868 DN1377RN1642 PN8206FN28002
10.19~ 1500 L15# GN2 RHD RN1089V PN8868 DN1389 FN28002
10.19~ 1500 L15# GN2 VTN RN1089V PN8868 DN1389 FN28002
12.16~09.20 1500 L15A GM6 RN1089V PN8868 DN1389 FN28002
09.08~09.11 1500 L15A7 GM2 LHD RN1089V PN8264 DN1377 FN28002
09.11~01.14 1500 L15A7 GM2 LHD RN1089V PN8868 DN1377 FN28002
09.08~09.11 1500 L15A7 GM2 RHD RN1089V PN8868PN8264 DN1377RN1642 FN28002PN8206FN5538
09.11~01.14 1500 L15A7 GM2 RHD RN1089V PN8868 RN1642 PN8206FN5538
01.14~ 1500 L15A7 GM2 RHD PA RN1089V PN8868 DN1377 FN28002
01.14~01.17 1500 L15Z1 GM6 LHD RN1089V PN8868 DN1389 FN28002
01.14~01.17 1500 L15Z1 GM6 RHD RN1089V PN8868 DN1389 FN28002
12.16~09.20 1500 L15Z1 GM6 RHD RN1089V PN8868 DN1389 FN28002
12.16~09.20 1500 L15Z1/A7 GM6 LHD RN1089V PN8868 DN1389 FN28002
01.17~ 1500 LEB-H1 GM7 MA RHD RN1089V PN8868 DN1389 FN28002

HONDA   »   Civic

12.01~09.06 1300 LDA-MF3/LDA1 ES9 JPN RN1089V PN8264 DN1378 FN5524
09.95~04.98 1400 D14A# MA8 RN1089V PN8103 FN5530
04.98~10.98 1400 D14A# MB2 RN1089V PN8103PN8265 RN1047 FN5520PN8206FN5530
03.96~03.99 1400 D14Z1 EJ9 RN1089V PN8264 DN1385 FN5520
01.00~12.05 1400 D14Z5 ES4 RN1089V PN8264 FN5520PN8398
01.01~12.05 1400 D14Z6 EP1 RN1089V PN8264PN8103 FN5524
01.01~09.03 1400 D14Z6 EU7 RN1089V PN8103 DN1378 FN5524
09.03~09.05 1400 D14Z6 EU7 RN1089V PN8103 RN2152 PN8398
09.00~09.05 1500 D15A EU1 RN1089V PN8264 FN5524
09.91~08.95 1500 D15B EG4 (4DR) RN1089VRN1375VRN1024V PN8264PN8265PN8263 DN1383RN1047RN1052 FN5527PN8206FN5519
09.91~08.95 1500 D15B EG4 JPN RN1089VRN1024VRN1375V PN8263PN8265PN8264 RN1047DN1383RN1052 FN5527FN5519PN8206
09.00~09.03 1500 D15B EU1 JPN RN1089V PN8264 DN1378 FN5524
01.01~12.05 1500 D15Y ES8 RHD RN1089V PN8264 DN1377 FN5520
01.01~12.05 1500 D15Y3 ES8 LHD RN1089V PN8264 DN1377 FN5520
10.95~03.99 1500 D15Z# EK3 3DR HB LHD RN1089V PN8264 RN1047DN1385 FN5527FN5520FN5519
03.96~03.99 1500 D15Z# EK3 3DR HB RHD RN1089V PN8264 RN1052 PN8206
03.99~01.01 1500 D15Z# EK3 3DR HB RHD RN1089V PN8264 RN1052 PN8206
10.95~03.99 1500 D15Z# EK3 4DR SDN RN1375VRN1024VRN1089V PN8264PN8263PN8265 RN1047DN1385RN1052 FN5520FN5519FN5527PN8206
03.99~01.01 1500 D15Z# EK3 4DR SDN RHD RN1089V PN8264 RN1047RN1052 PN8206
09.95~12.96 1500 D15Z# MA9 RN1089V PN8103 RN1047 FN5530PN8206
08.91~09.95 1600 B16A EG6 JPN RN1089V PN8264 RN1047 PN8206
08.91~09.95 1600 B16A EG9 RN1089V PN8264 RN1052 PN8206
12.95~03.99 1600 B16A# EK4 3DR HB RHD RN1089V PN8264 RN1052 PN8206
10.98~09.00 1600 B16A2 EK4 RN1089V PN8264 RN1047RN1052 PN8206
03.99~01.01 1600 B16A2 EK4 4DR SDN LHD PH RN1089V PN8264 RN1052 PN8206
03.99~01.01 1600 B16A4 EK4 3DR HB RHD RN1089V PN8264 RN1052 PN8206
12.95~03.99 1600 B16A4 EK4 4DR SDN RHD RN1089V PN8264 RN1052 PN8206
03.99~01.01 1600 B16A4 EK4 4DR SDN RHD RN1089V PN8264 RN1052 PN8206
08.91~08.95 1600 B16A6 EG6 RN1089V PN8264 RN1047 PN8206
07.96~03.01 1600 D16B2 MB4 RN1089V PN8103 RN1047 PN8206
01.01~12.05 1600 D16V1 EP2 RHD RN1089V PN8103 RN2152 PN8398
01.01~12.05 1600 D16V1 ES7 RN1089V PN8264 FN5520PN8398
01.01~09.03 1600 D16V1 EU8 RN1089V PN8103 RN2152 PN8398
09.03~09.05 1600 D16V1 EU8 RN1089V PN8103 RN2152 PN8398
09.03~09.05 1600 D16W7 ES5 RN1089V PN8264 DN1377 FN5520PN8398
09.03~09.05 1600 D16W7 ES5 PH LHD RN1089V PN8264 DN1377 FN5520
03.96~01.01 1600 D16Y# EK1 RN1030VRN1089V PN8264 RN1047 FN5520PN8206
01.95~09.00 1600 D16Y8 EJ8 RHD RN1089V PN8264 RN1052 PN8206
01.92~12.95 1600 D16Z EG5 RN1375VRN1089V PN8264PN8265 RN1052 PN8206
01.02~12.05 1700 4EE2 EP4 RN1089V PN8103 RN2152 PN8398
06.01~12.05 1700 4EE2 EU9 RN1089V PN8103 RN2152 PN8398
01.01~05.05 1700 D17A EN2 RN1089V PN8484 FN5520
09.00~09.03 1700 D17A EU2 RN1089V PN8264 FN5524
09.00~09.05 1700 D17A EU3 JPN RN1089VRN1468V PN8264 RN1974 FN5524PN8398
09.00~09.05 1700 D17A EU4 RN1089VRN1468V PN8264 RN1362 FN5524
01.01~09.03 1700 D17A2 ES1 RHD RN1089V PN8264 DN1377RN2152 PN8398FN5520
09.03~12.05 1700 D17A2 ES1 RHD RN1089V PN8264 DN1377RN2152 FN5520PN8398
09.00~09.05 1700 D17A5 EU3 HB GL RN1089VRN1468V PN8264 RN1974 FN5524PN8398
01.01~12.05 1700 D17Z1 ES1 RHD RN1089V PN8484 RN2152 PN8398
09.03~09.05 2000 K20A3 ET1 RN1089V PN8264 RN2152 PN8398

HONDA   »   Civic (USA)

01.01~12.05 1700 D17A1 ES1 RN1089V PN8827PN8484PN8264 DN1377 FN5520

HONDA   »   Civic Coupe

02.93~01.96 1600 D16A EJ1 RN1089V PN8264 FN5520
03.96~01.01 1600 D16Y8 EJ8 LHD RN1089V PN8264 DN1385 FN5520
02.93~01.96 1600 D16Z# EJ1 LHD RN1089V PN8264 DN1385 FN5520
09.00~09.03 1700 D17A# EM2 EU RN1089V PN8264 RN2152 PN8398
09.00~09.03 1700 D17A# EM2 US RN1089V PN8484 DN1377 FN5520
09.03~09.05 1700 D17A# EM2 US RN1089V PN8484 DN1377 FN5520

HONDA   »   Civic CRX

01.92~01.98 1500 D15B EG1 RN1089VRN1375V PN8264PN8265 DN1383RN1052 FN5527PN8206FN5519
01.92~12.94 1600 B16A2 EG2 RN1089V PN8264 RN1047 PN8206

HONDA   »   Civic Ferio

08.91~09.95 1300 D13B EG7 RN1024VRN1089V PN8265PN8263 FN5519FN5527
09.00~09.05 1500 D15B ES2 RN1089V PN8264 FN5520
08.91~09.95 1600 B16A EG9 RN1089V PN8264 RN1052 PN8206
09.93~08.95 1600 ZC EJ3 RN1089V PN8264 DN1383RN1047RN1052 FN5519FN5527PN8206
09.00~09.05 1700 D17A ES3 RN1089V PN8264 DN1377RN2152 PN8398FN5520
09.03~09.05 1700 D17A ET2 RN1089V PN8264 DN1377 FN5520

HONDA   »   CR-X

08.89~02.92 1600 B16A EF8 RN1089V PN8162 RN1047 PN8206
06.92~04.98 1600 D16Z EH6 RN1089V PN8264 FN5519FN5527

HONDA   »   CR-X del Sol

02.92~12.97 1600 B16A EG2 RN1089V PN8264 RN1052 PN8206
06.92~04.98 1600 D16# EH6 RN1089VRN1375V PN8190PN8264 RN1047 FN5527PN8206FN5519
10.95~01.99 1600 D16A EJ4 RN1089V PN8264PN8265 RN1047 PN8206FN5519FN5527

HONDA   »   Fit

10.07~08.13 1300 L13A GE6 RN1089VRN1350V PN8263PN8264PN8868 DN1382 FN5534PN8206FN28002
10.07~08.13 1300 L13A GE7 RN1089V PN8264PN1322 DN1377 FN28002
09.13~01.20 1300 L13B GK3 JPN RN1089V PN8868PN8815 FN28002FN5549
09.13~06.17 1300 L13B GK3 RHD RN1089V PN8868 FN28002
09.13~01.20 1300 L13B GK4 RN1089V PN8868 FN28002
10.10~09.13 1300 LDA GP1 RN1089V PN8868 DN1377 FN28002
04.06~03.08 1500 L15A GD3 US RN1089V PN8264PN8820 DN1394 FN5520
10.07~08.13 1500 L15A GE8 RN1089V PN8868PN8264 RN1642DN1377 FN28002PN8206
10.07~08.13 1500 L15A GE9 RN1089V PN8264 DN1377 FN28002
09.13~01.20 1500 L15B GK5 JPN RN1089V PN8868 RN2411 FN28002PN8206
09.13~01.20 1500 L15B GK6 RN1089V PN8868 FN28002
05.12~09.13 1500 LEA-MF6 GP4 RN1089V PN8868 RN2408 PN8398
09.13~01.20 1500 LEB-H1 GP5 RN1089V PN8868 FN28002
09.13~01.20 1500 LEB-H1 GP6 RN1089V PN8868 FN28002

HONDA   »   Fit Shuttle

06.11~03.15 1300 LDA GP2 RN1089V PN8868 DN1377 FN28002
06.11~03.15 1500 L15A GG7 RN1089V PN8868 DN1377 FN28002
06.11~04.15 1500 L15A GG8 RN1089V PN8868 DN1377 FN28002

HONDA   »   Freed

05.08~08.16 1500 L15A GB3 JPN RN1089V PN8264 DN1378 FN5524
05.08~08.16 1500 L15A GB4 RN1089V PN8264 DN1378 FN5524
05.08~08.16 1500 L15A7 GB3 SG RN1089V PN8264 DN1378 FN5524
10.11~09.16 1500 LEA-MF6 GP3 RN1089V PN8868 DN1378 FN5524

HONDA   »   Freed Spike

10.11~09.16 1500 LEA-MF6 GP3 RN1089V PN8868 FN5524

HONDA   »   Grace

09.15~08.20 1500 L15B GM6 RN1089V PN8868 FN28002
09.15~07.20 1500 L15B GM9 RN1089V PN8868 FN28002
12.14~07.20 1500 LEB-H1 GM4 RN1089V PN8868 FN28002
12.14~07.20 1500 LEB-H1 GM5 RN1089V PN8868 FN28002

HONDA   »   Insight

02.09~03.14 1300 LDA ZE2 JPN RN1089V PN8868 DN1377 FN28002
01.10~03.14 1300 LDA3 ZE2 RN1089V PN8868 RN2408DN1377 FN28002PN8398
11.11~04.14 1500 LEA ZE3 RN1089V PN8868 DN1377 FN28002

HONDA   »   Integra

07.93~12.00 1600 ZC DB6 RN1089V PN8264PN8337 RN1047DN1385 PN8206FN5520
05.93~06.01 1600 ZC DC1 RN1089V PN8265PN8337 RN1047 FN5519PN8206FN5527
10.91~07.93 1800 B18A1 DA9 AUS RN1089V PN8162 RN1047 PN8206
01.91~01.97 1800 B18B# DB7 LHD RN1089V PN8337 RN1047 PN8206
10.95~06.01 1800 B18C DB8 RN1089V PN8337 RN1052 PN8206
05.93~06.01 1800 B18C DC2 RN1089V PN8337 RN1052 PN8206

HONDA   »   Jazz

07.08~10.13 1200 L12B1 GG1 RN1089V PN8868 RN1642 PN8206
12.14~09.17 1300 L13B GK3 RN1089V PN8868 FN28002
09.17~02.20 1300 L13B GK3 RN1089V PN8868 FN28002
01.14~02.20 1300 L13B GK3 LHD RN1089V PN8868 RN2411 PN8206
01.08~04.11 1300 L13Z GE6 RN1089V PN8264PN8868 RN1642 PN8206
04.11~09.15 1300 L13Z1 GE6 RN1089V PN8868 RN1642 PN8206
07.08~04.11 1300 L13Z1 GG6 RN1089V PN8868 RN1642 PN8206
04.11~10.13 1300 L13Z1 GG6 RN1089V PN8868PN8265 RN1642 PN8206FN28002
07.08~ 1300 L13Z1 GP RN1089V PN8868 RN1642 PN8398
01.11~01.14 1300 LDA3 GP1 RN1089V PN8868 RN2408DN1377 FN28002PN8398
01.14~ 1500 L15A GK6 RN1089V PN8868 RN2411 PN8206
04.11~08.15 1500 L15A7 GE8 RN1089V PN8868PN8264 RN1642 PN8206
01.12~03.14 1500 L15A7 GE9 RN1089V PN8868 DN1377 FN28002
07.08~04.11 1500 L15A7 JHMGE8 RN1089V PN8868 RN1642 PN8206
07.08~04.11 1500 L15A7 MRHGE8 RHD RN1089V PN8264 RN1642 PN8206
01.14~02.20 1500 L15B GK5 SG RN1089V PN8868 RN2411 PN8206
01.14~02.20 1500 L15Z2 GK5 GR RN1089V PN8868 DN1389 FN28002
01.15~ 1500 LEB-H1 GP# RN1089V PN8868 FN28002

HONDA   »   Mobilio

12.01~07.08 1500 L15A GB1 RN1089V PN8264 FN5524
12.01~07.08 1500 L15A GB2 RN1089V PN8264 DN1378 FN5524
09.02~07.08 1500 L15A GK1 RN1089V PN8264 FN5524
09.02~07.08 1500 L15A GK2 RN1089V PN8264 FN5524
09.13~ 1500 L15Z DD4 RN1089V PN8868 FN28002

HONDA   »   Orthia

02.96~06.99 1800 B18B EL1 RN1089V PN8337 FN5520
01.96~01.02 2000 B20B EL2 RN1089V PN8337 DN1385 FN5520
01.96~01.02 2000 B20B EL3 RN1089V PN8337 FN5520

HONDA   »   Shuttle

05.15~ 1500 L15B GK8 RN1089V PN8868 FN28002
05.15~ 1500 L15B GK9 RN1089V PN8868 FN28002
05.15~ 1500 LEB GP7 RN1089V PN8868 FN5524
05.15~ 1500 LEB GP8 RN1089V PN8868 FN5524

LOTUS   »   Exige S

08.00~ 1800 2ZZ-GE SCC RN1089V PN0226S RN1047 PN0282

ROVER   »   25 Hatchback

09.99~ 1100 11K2F RF RN1089V PN8103 FN5530
09.99~ 1100 11K4F RF RN1089V PN8103 FN5530
07.99~ 1400 14K4F RN1089V PN8103 FN5530
07.99~ 1400 14K4M RN1089V PN8103 FN5530
07.99~ 1600 16K4F RN1089V PN8103 FN5530
07.99~ 1800 18K4F RN1089V PN8103 FN5530
07.99~ 1800 18K4K RN1089V PN8103 PN8206
07.99~ 2000 20T2N RN1089V PN8103 FN5530

ROVER   »   400 Tourer

03.96~12.99 1800 18K4K RN1089V PN8103 PN8206

ROVER   »   45

01.00~ 1400 14K4F RT RN1089V PN8103 FN5530
01.00~ 1600 16K4F RT RN1089V PN8103 FN5530
01.00~ 1800 18K4F RT RN1089V PN8103 FN5530
01.00~ 2000 20K4F RT RN1089V PN8103 RN1047 PN8206
01.00~ 2000 20T2N RT RN1089V PN8103 FN5530
Copyright © 2003-2024 JNBK Corporation. All Rights Reserved

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES IN MS
