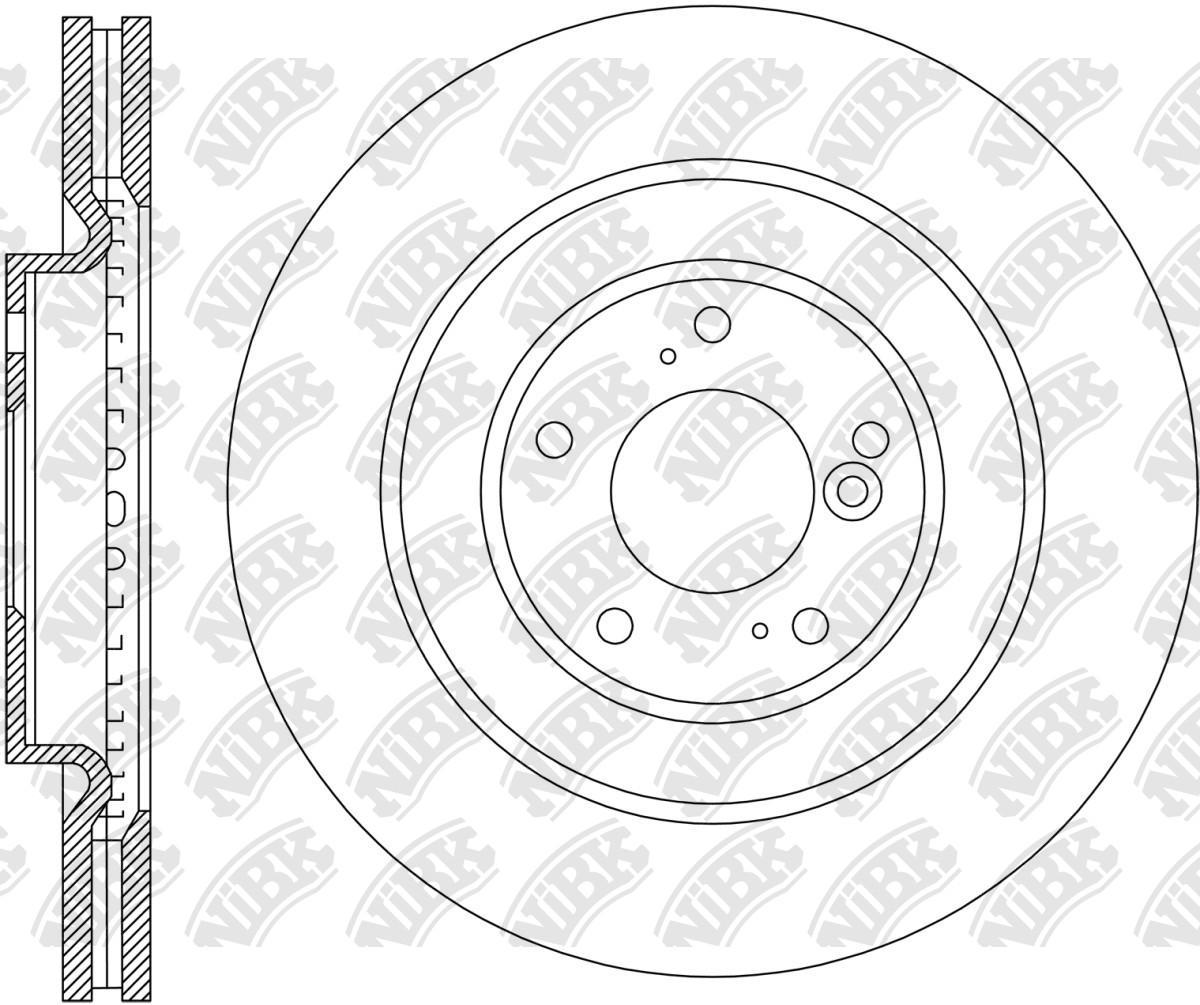

ROTOR DISC » RN2691V
Specification
Type
Vented
Outter Ø
315
Num. of holes
5
Hole Ø:
12.6
Disc Thickness (Max)
28
Disc Thickness (Min)
26
Height
47.3
Centering Diameter
64.1
Pitch Circle Ø
114.3
Drum Ø:
154
Front/Rear
Front
Structure Material
G3000
Cross Reference
HONDA
45251-TMC-T00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.18~ | 1500 | L15B | RW1 JPN | RN2691V | PN8802 | RN2228 | PN8817 | |
| 08.18~ | 1500 | L15B-T | RW2 JPN | RN2691V | PN8802 | RN2228 | PN8817 | |
| 10.16~ | 1500 | L15BG | HRW18 LHD | RN2691V | PN8802 | RN2228 | PN8817 | |
| 10.16~09.19 | 1500 | L15BY | HRW18 RHD | RN2691V | PN8802 | RN2228 | PN8817 | |
| 09.19~ | 1500 | L15BY | HRW18 RHD | RN2691V | PN8802 | RN2228 | PN8817 | |
| 10.16~ | 1500 | L15BY | HRW28 RHD | RN2691V | PN8802 | RN2228 | PN8817 | |
| 10.16~ | 1500 | L15Y | RW1 RHD KU | RN2691V | PN8802 | RN2228 | PN8817 | |
| 10.16~ | 1500 | L15Y | RW1 RHD MA | RN2691V | PN8802 | RN2228 | PN8817 | |
| 10.16~09.19 | 1600 | N16A# | RW7 LHD PH | RN2691V | PN8802 | RN2228 | PN8817 | |
| 09.19~ | 1600 | N16A# | RW7 LHD PH | RN2691V | PN8802 | RN2228 | PN8817 | |
| 10.16~09.19 | 1600 | N16A# | RW8 LHD PH | RN2691V | PN8802 | RN2228 | PN8817 | |
| 10.16~09.19 | 2000 | R20# | HRW38 RHD | RN2691V | PN8802 | RN2228 | PN8817 | |
| 09.19~ | 2000 | R20A9 | HRW38 RHD | RN2691V | PN8802 | RN2228 | PN8817 |
