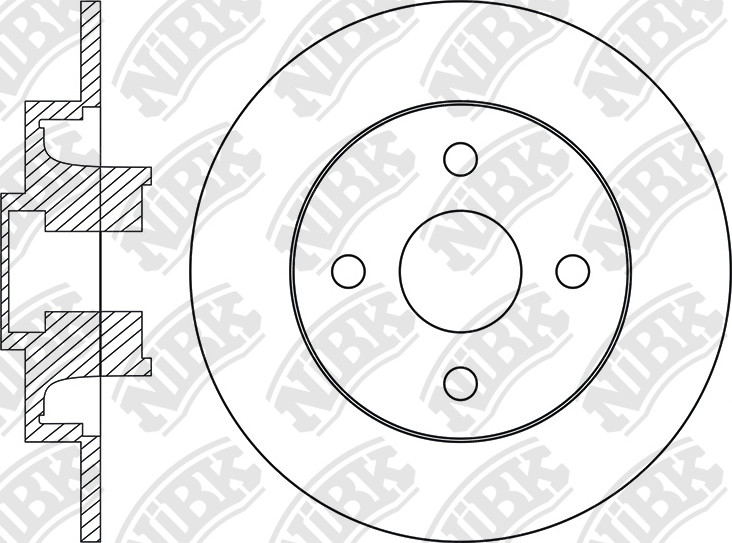

ROTOR DISC » RN1747H
Specification
Type
Solid
Outter Ø
249
Num. of holes
4
Disc Thickness (Max)
9
Height
69.2
Centering Diameter
56
Pitch Circle Ø
108
Drum Ø:
62
Disc Thickness (Min)
8
Structure Material
G3000
Alternative
Cross Reference
CITROEN
1619237980
CITROEN
4246.Z9
CITROEN
4249.19
CITROEN
4249.32
PEUGEOT
4246Z9
PEUGEOT
4249.32
PEUGEOT
4249.Z9
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 02.09~09.16 | PICASSO | RN1152VRN1151V | PN0706PN0182 | RN1747H | PN0019W | |||
| 01.15~09.16 | 1200 | EB2DT | PICASSO | RN1151VRN1152V | PN0706PN0182 | RN1747H | PN0019W | |
| 12.15~ | 1200 | EB2DT | SX | RN1152V | PN0182 | RN1747H | PN0019W | |
| 11.09~ | 1400 | 1.4 VTi 16v 95 | 5-Hatchback | RN1152VRN1151V | PN0182PN0706 | RN1747HDN1586H | PN0019WFN0684 | |
| 01.02~01.09 | 1600 | 1.6 VTi 16v 120 | 5-Hatchback | RN1152VRN1151V | PN0182PN0706 | RN1747H | PN0019WFN0684 | |
| 06.09~03.13 | 1600 | DV6DTED | 5DR HB LHD | RN1152VRN1151V | PN0182PN0706 | RN1747H | PN0019W | |
| 12.12~09.16 | 1600 | DV6DTED | PICASSO LHD | RN1152VRN1151V | PN0706PN0182 | RN1747H | PN0019W |
| 09.08~05.11 | 1400 | ET3J4 | 5DR HB | RN1152V | PN0182 | RN1747H | PN0019W | |
| 10.04~12.10 | 1600 | 1.6 THP 16v 150 | 5-Hatchback | RN1151V | PN0187W | RN1747H | PN0019W | |
| 10.04~12.10 | 1600 | EP6 | 5-Hatchback | RN1151V | PN0187W | RN1747H | PN0019W | |
| 09.08~05.11 | 1600 | EP6 | LC | RN1151V | PN0187W | RN1747H | PN0019W | |
| 10.04~05.11 | 1600 | TU5JP4 | L_ | RN1151V | PN0187W | RN1747HRN1744H | PN0019WPN0069 | |
| 10.04~12.10 | 2000 | 2.0 i 16v 180 | 3-Hatchback | RN1854V | PN0348W | RN1747H | PN0019W | |
| 10.04~12.10 | 2000 | EW10A | 5DR HB LHD | RN1151V | PN0187WPN0348W | RN1744HRN1747H | PN0019WPN0069 |
| 01.13~07.19 | 1200 | EB2 | SA | RN1151VRN1152V | PN0706PN0202WPN0182 | RN1747H | FN0684FN0826PN0019W | |
| 04.10~07.15 | 1400 | DV4C | 3DR HB | RN1152VRN1151V | PN0182PN0706 | RN1747H | FN0826PN0019WFN0684 | |
| 10.10~07.15 | 1400 | EP3C / 8FP | SA | RN1152V | PN0182 | RN1747HDN1586H | PN0019WFN0684 | |
| 01.10~07.15 | 1600 | 1.6 THP 16v 150 | SA | RN1152VRN1151V | PN0202WPN0706PN0182 | RN1747H | FN0684PN0019W | |
| 01.10~07.15 | 1600 | DV6C | SA | RN1152VRN1151V | PN0182PN0706 | RN1747H | FN0684FN0826PN0019W | |
| 01.10~07.15 | 1600 | EP6C / 5FS | SA | RN1151V | PN0202WPN0706 | DN1586HRN1747H | PN0019WFN0684 | |
| 01.10~07.15 | 1600 | EP6C / 5FS | SA | RN1152V | PN0182 | RN1747H | PN0019W |
| 03.13~12.19 | 1200 | EB2 | CU | RN1152V | PN0182 | RN1747H | PN0019W | |
| 01.15~12.19 | 1200 | EB2DT | CU | RN1151V | PN0706 | RN1747H | PN0019W | |
| 03.13~12.19 | 1400 | DV4C | CU | RN1151VRN1152V | PN0706PN0182 | RN1747H | PN0019W | |
| 03.13~12.19 | 1600 | DV6DTED | CU | RN1152V | PN0182 | RN1747H | PN0019W | |
| 03.13~12.19 | 1600 | EP6C / 5FS | CU | RN1151VRN1152V | PN0182PN0706 | RN1747H | PN0019W | |
| 02.16~ | 1600 | EP6FDT M | CU | RN1151V | PN0706 | RN1747HRN2278H | PN0019W |
| 03.07~05.15 | 1600 | 1.6 VTi 16v 120 | 2-Coupe Cabriolet | RN1151V | PN0187W | RN1747H | PN0019W | |
| 03.07~08.12 | 1600 | 1.6 VTi 16v 120 | 5-Hatchback | RN1151V | PN0187W | RN1747H | PN0019W | |
| 03.10~08.12 | 1600 | DV6ATED4 | 5-Hatchback | RN1151V | PN0187WPN0187 | DN1586HRN1747H | FN0684PN0069 | |
| 09.07~06.13 | 1600 | DV6ATED4 | WK SW | RN1151V | PN0187W | RN1747HDN1586H | PN0019WFN0684PN0069 | |
| 03.07~05.15 | 1600 | EP6 | 2-Coupe Cabriolet | RN1151V | PN0187W | RN1747H | PN0069 | |
| 03.07~08.12 | 1600 | EP6 | 5-Hatchback | RN1151V | PN0187W | RN1747H | PN0069PN0019W | |
| 01.07~01.13 | 1600 | EP6DTS 175PH | 3-Hatchback | RN1854V | PN0348W | RN1747H | PN0069 | |
| 01.06~01.13 | 1600 | TU5JP4 | 5-Hatchback | RN1151V | PN0187W | RN1747H | PN0019W |
| 03.12~06.19 | Hatchback | RN1152VRN1748V | PN0348WPN0182 | RN1747H | FN0826PN0019WFN0684 | |||
| 03.12~06.19 | 1000 | EB0 | Hatchback | RN1152VRN1748V | PN0348WPN0182 | RN1747H | FN0684FN0826PN0019W | |
| 03.12~12.19 | 1200 | EB2DT | 5DR HB | RN1152V | PN0182 | RN1747H | PN0019W | |
| 03.12~06.19 | 1400 | DV4C | Hatchback | RN1152VRN1748V | PN0182PN0348W | RN1747H | FN0684FN0826PN0019W | |
| 03.12~06.19 | 1400 | EP3C / 8FP | Hatchback | RN1748VRN1152V | PN0348WPN0182 | RN1747H | FN0826PN0019WFN0684 | |
| 01.18~06.19 | 1500 | DV5RD | Hatchback | RN1152VRN1748V | PN0348WPN0182 | RN1747H | PN0019WFN0826FN0684 | |
| 03.12~12.19 | 1600 | DV6DTED | 5-Hatchback | RN1152V | PN0182 | RN1747H | PN0019W | |
| 01.15~12.19 | 1600 | DV6FD | 5-Hatchback | RN1152V | PN0182 | RN1747H | PN0019W | |
| 03.12~12.19 | 1600 | EP6C / 5FS | 3-Hatchback | RN1152V | PN0182 | RN1747H | PN0019W |
