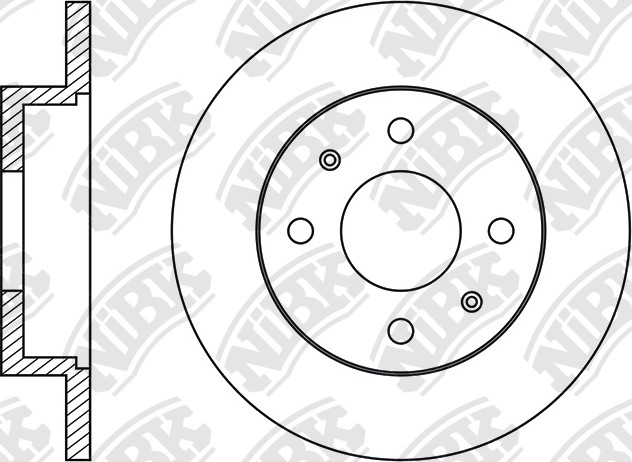

ROTOR DISC » RN1836

Specification

Type
Solid
Outter Ø
211
Num. of holes
4
Disc Thickness (Max)
11
Height
40.9
Centering Diameter
55.1
Pitch Circle Ø
100
Drum Ø:
125
Disc Thickness (Min)
10
Structure Material
G3000
Front/Rear
Front

Cross Reference

DAIHATSU
43512-97206
DAIHATSU
43512-97206-000
DAIHATSU
43512-97207-000
DAIHATSU
43512-B2100
DAIHATSU
4351297203
DAIHATSU
4351297204
DAIHATSU
4351297207
DAIHATSU
43512B2060
OEM
4351297204000
TOYOTA
43512-B2130
TOYOTA
43512B2100
TOYOTA
43512B2140
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.99~10.04 1000 EJ-DE L701 RN1836 PN6428 FN0037
04.07~11.13 1000 1KR-FE L276 RN1836 PN6428 FN0027
09.05~04.07 1000 EJ-DE L251LS LHD RN1836 PN6428 DN1431 FN0027
12.05~09.11 660 KF-VE L235S RN1836 PN6428 DN1431 FN0027
06.05~09.11 660 KF-VE L245S RN1836 PN6428 FN0030
12.02~01.07 660 EF-### L250S RN1836 PN6428PN6492 DN1431 FN0027
10.98~10.04 660 EF-### L700V RN1836 PN6429 FN0037FN0027
12.02~01.07 660 EF-SE L250V RN1836 PN6428 FN0027
12.06~03.18 660 KF-VE L275S RN1836 PN6428 FN0027
12.06~03.18 660 KF-VE L285S RN1836 PN6492PN6428 FN2397
08.09~08.14 660 KF-VE L675S RN1836 PN6428 DN1431 FN0027
09.11~04.17 660 KF-VE LA300S RN1836 PN6428 FN0752
09.11~04.17 660 KF-VE LA310S RN1836 PN6428 FN2397
10.06~12.10 660 KF-VE L175S RN1836 PN6428 FN0042
08.08~06.13 660 KF-#E# L575S RN1481VRN1836 PN6428PN6492 FN0027FN2397
08.08~03.17 660 KF-#E# L585S RN1836 PN6428PN6492 FN2397
08.04~04.09 660 EF-# L550S RN1836 PN6428 DN1431 FN0042FN0027
11.99~12.03 660 EF-#E# L760S RN1836 PN6428PN6427 FN0020FN0036
11.03~12.07 660 EF-# L350S RN1836 PN6428PN6492 FN0027FN0042
11.03~12.07 660 EF-# L360S RN1836 PN6492 FN0030
04.04~12.08 1000 EJ-DE L701 RN1836 PN6429 FN0042
04.10~03.18 660 KF-VE L275F RN1836 PN6428 FN0027
04.12~04.17 660 KF-VE LA300A RN1836 PN6428 FN0752
04.12~04.17 660 KF-VE LA310A RN1836 PN6428 FN2397
07.17~ 660 KF-VE LA350A RN1836 PN6428 FN0042
05.17~ 660 KF-VE LA360A RN1836 PN6428 FN2397
09.11~06.13 660 KF-DET L575A RN1481VRN1836 PN6492PN6428 DN1433 FN0027FN2397
09.11~06.13 660 KF-VE L575A RN1481VRN1836 PN6428PN6492 DN1433 FN0027FN2397
09.11~06.13 660 KF-VE L585A RN1836RN1988VRN1481V PN6428PN6492 FN2397

Exemption from liability: the catalog data is advisory and can be used for reference only
